Select, download and install the appropriate VCP Driver for either Win'98 / ME /
2000 / XP (with enhanced BM series support) driver following the instructions
provided on the Web site and with the driver.
HyperTerminal
HyperTerminal is a standard program included in all current versions of Microsoft
Windows (2000, XP) and can be typically found in the Communications directory
under Accessories. If HyperTerminal is not already installed on the Windows
(2000, XP) PC that will be used to configure the TrimTrac ProE, you will need to
install it from your original Windows (2000, XP) CDs.
Connecting the Devices
Once the FTDI USB 2.0 device driver and HyperTerminal program are installed
on the PC, connect the TrimTrac ProE and Provisioning Module to the PC USB
2.0 port as follows:
1. Remove the TrimTrac Battery Pack or Vehicle Adapter or Control Module
from the base TrimTrac ProE.

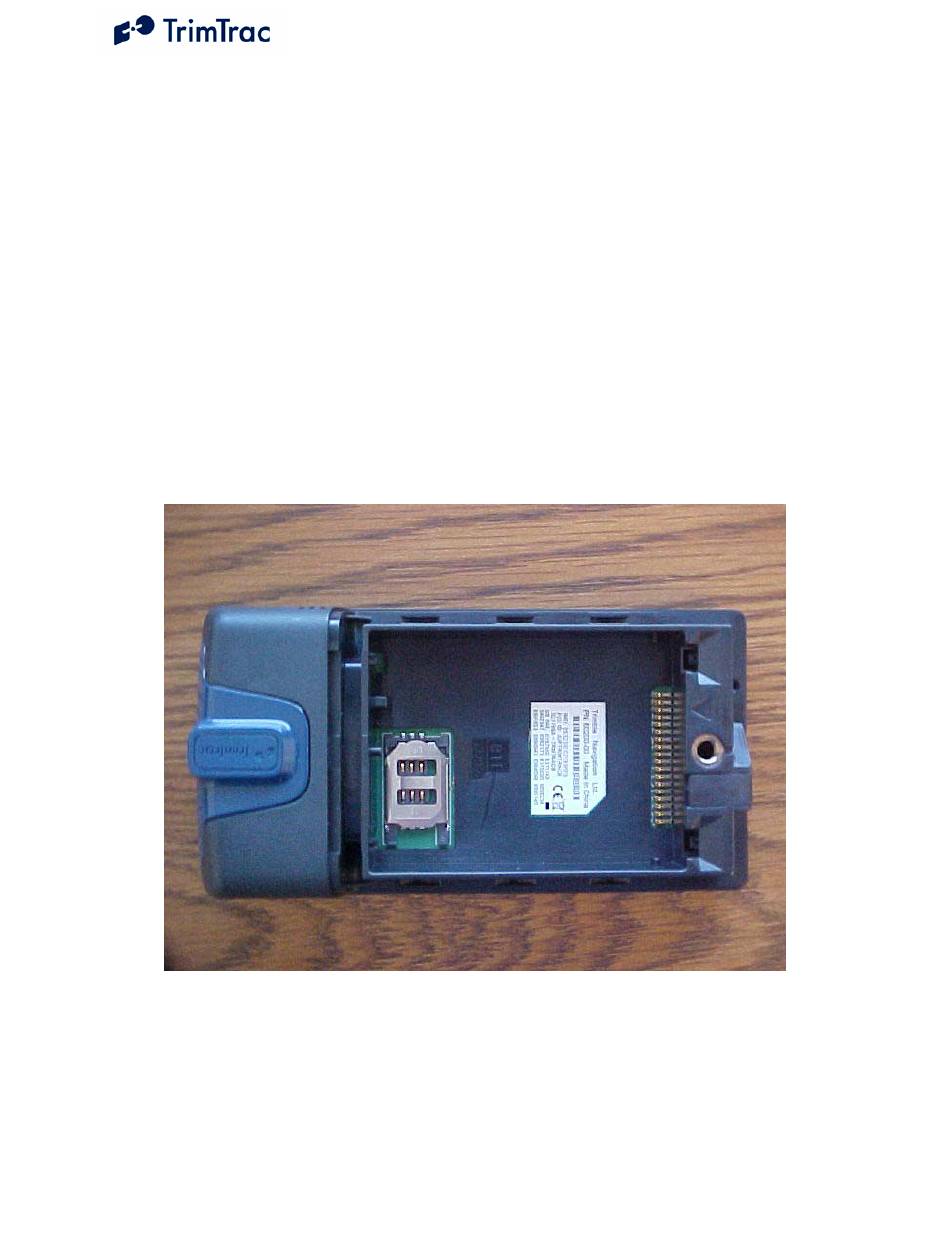

Figure 28. TrimTrac ProE with Modules Removed.

2. If an active SIM card is available, insert it into the base unit SIM
cardholder. Note: The TrimTrac ProE can still be configured and
provisioned even if a SIM is not available. It can be inserted at a later
time if so desired.
TrimTrac ProE Locator Technical Manual v2.0e 110
