Figure 33. Trimtrac Proe Connected To Pc Via Provisioning Module And Usb A-To-A Cable - TrimTrac ProE Locator Technical Manual

4. Connect the USB 2.0 Type-A Male end of the data cable to the
Provisioning Module.
5. Connect the other USB 2.0 Type-A Male end of the cable to the PC USB
2.0 port. (Note: if the PC sound is enabled, there may be an audible sound
when the cable and Provisioning Module are connected to the PC. This
indicates that the USB port on the PC may not have sufficient power.)

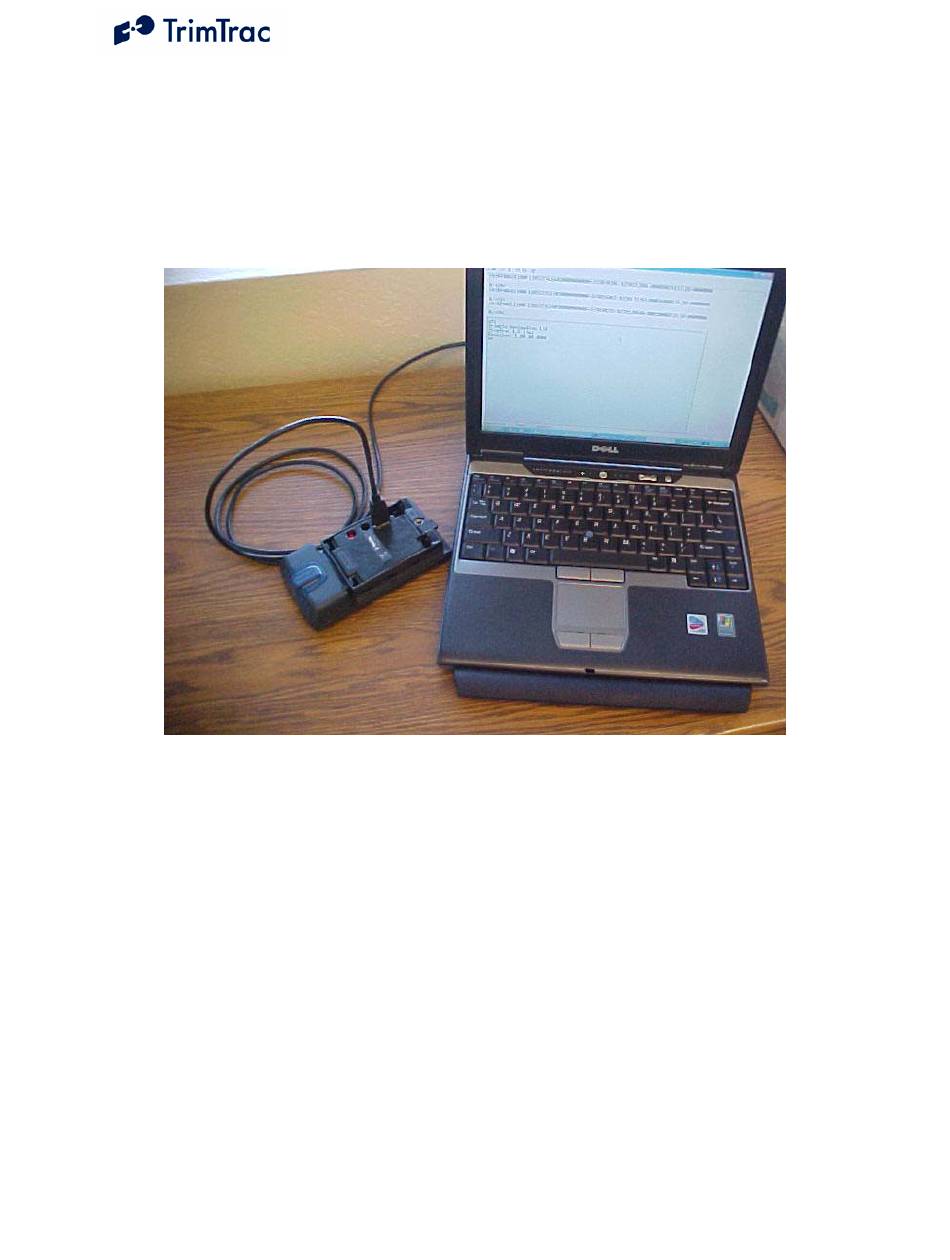

Figure 33. TrimTrac ProE Connected to PC via Provisioning Module and USB A-to-A
Cable.
Beginning a Provisioning Session
To commence a provisioning session, you must start HyperTerminal in the
following steps:
1. Start HyperTerminal from the Windows (2000, XP), Start, All Programs,
Accessories, Communications menu.
2. A "New Connection" panel will appear and enter "TrimTrac" for the New
Connection Name and click "OK" button (Note: if you have already
defined "TrimTrac" connection is a previous session, then select
"TrimTrac" and skip to Step 6).
3. A "Connect Using" panel will appear and from the pull down menu select
the Com port you designated as the USB 2.0 port when you installed the
FTDI driver (commonly, COM4).
