Chapter 9. Diagnostics

9.2 Using the Fault Tables

To display the fault tables in Logic Developer software,
1. Go online with the PACSystems.
2. Select the Project tab in the Navigator, right click the Target node and choose Diagnostics. The
Fault Table Viewer appears.
The Controller Fault Table and the I/O Fault Table display the following information:
Controller
Time/Date
Last Cleared
Status
Total Faults
Entries Overflowed The number of entries lost because the fault table has overflowed since it
9.2.1

Controller Fault Table

The Controller Fault Table displays CPU faults such as password violations, configuration
mismatches, parity errors, and communications errors.
The Controller Fault Table provides the following information for each fault:
Location Identifies the location of the fault by rack.slot.
Description Corresponds to a fault group, which is identified in the fault Details.
Date/Time The date and time the fault occurred based on the CPU clock.
Details To view detailed information, click the fault entry. Refer to Viewing Controller Fault
Details for more information.
386 PACSystems* RX7i, RX3i and RSTi-EP CPU Programmer's Reference Manual
The current date and time of the CPU.
The date and time faults were last cleared from the fault table. This
information is maintained by the PACSystems controller.
Displays Updating while the programmer is reading the fault table.
Status is Online when update is complete.
The total number of faults since the table was last cleared.
was cleared. Each fault table can contain up to 64 faults.

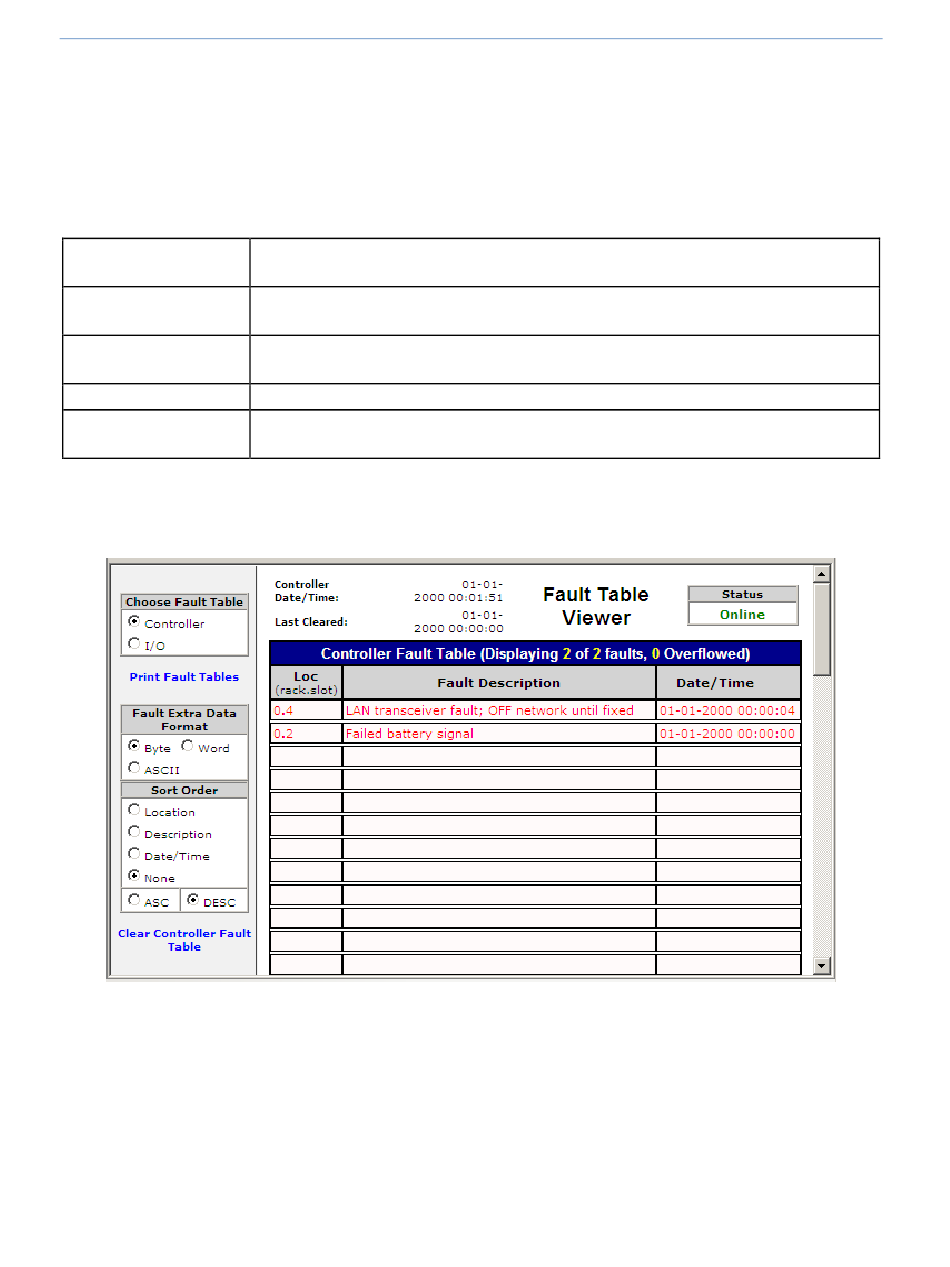

Figure 18: Controller Fault Table Display
