Chapter 5. Function Block Diagram (FBD)
5.12.5

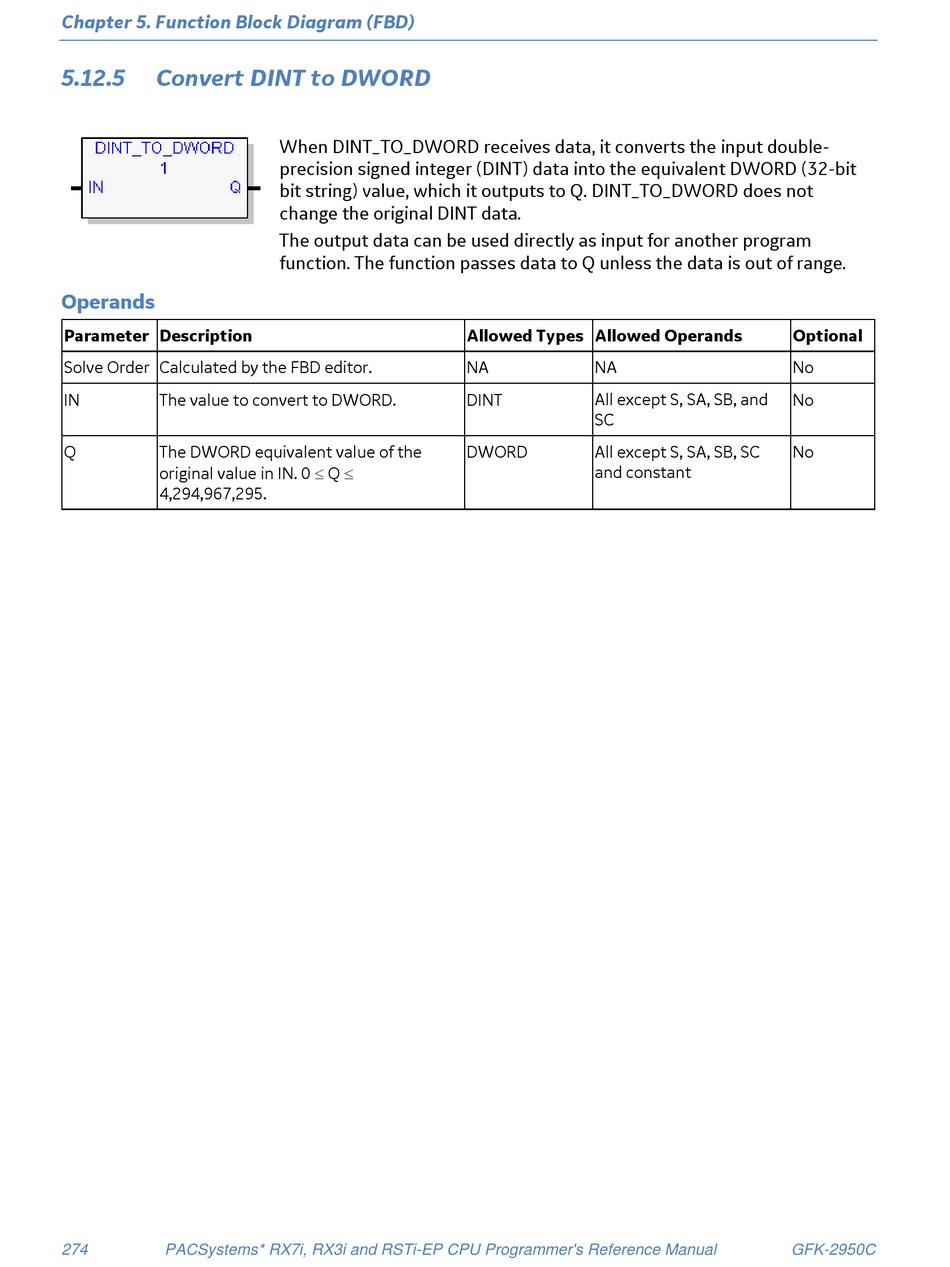

Convert DINT to DWORD

Operands
Parameter Description
Solve Order Calculated by the FBD editor.
IN The value to convert to DWORD.
Q The DWORD equivalent value of the
original value in IN. 0  Q 
4,294,967,295.
274 PACSystems* RX7i, RX3i and RSTi-EP CPU Programmer's Reference Manual
When DINT_TO_DWORD receives data, it converts the input double-
precision signed integer (DINT) data into the equivalent DWORD (32-bit
bit string) value, which it outputs to Q. DINT_TO_DWORD does not
change the original DINT data.
The output data can be used directly as input for another program
function. The function passes data to Q unless the data is out of range.
Allowed Types Allowed Operands
NA NA
DINT All except S, SA, SB, and
SC
DWORD All except S, SA, SB, SC
and constant
Optional
No
No
No
GFK-2950C
