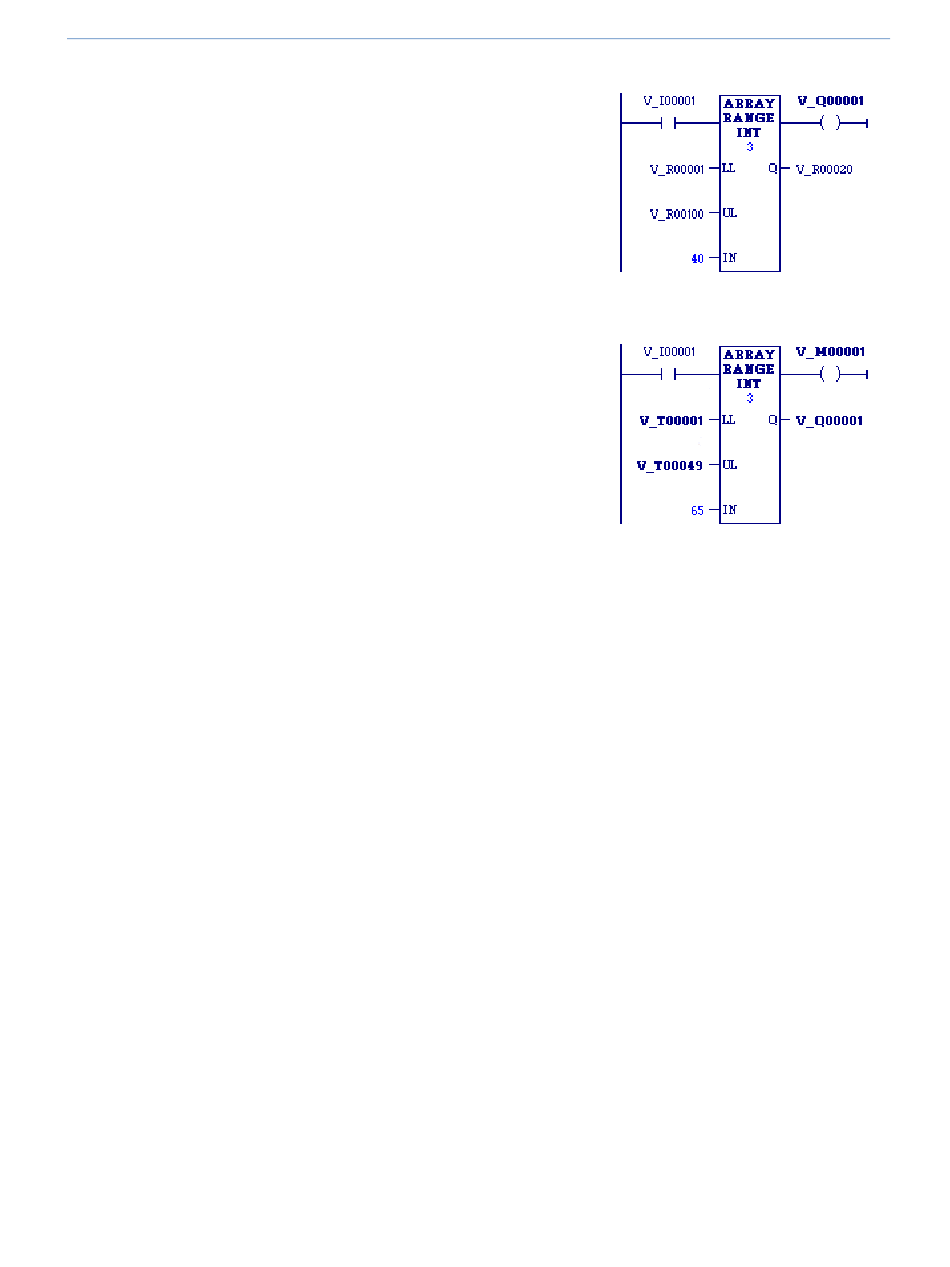

Array Range Example 1
The lower limit (LL) values of %R00001 through %R00008 are 1,
20, 30, 100, 25, 50, 10, and 200. The upper limit (UL) values of
%R00100 through %R00108 are 40, 50, 150, 2, 45, 90, 250, and
47. The resulting Q values will be placed in the first 8 bits of
%R00200. The bit values low order to high are: 1, 1, 1, 0, 1, 0, 1,
and 0. The bit value displayed will be set ON (1) for the low
order bit of %R00200. The ok output will be set ON (1).
Array Range Example 2
The lower limit (LL) array contains %T00001 through %T00016,
%T00017 through %T00032, and %T00033 through %T00048.
The lower limit values are 100, 65, and 1. The upper limit (UL)
values are 29, 165, and 2. The resulting Q values of 0, 1, and 0
will be placed in %Q00001 through %Q00003. The bit value
displayed will be 0 (OFF), representing the value of %Q00001.
The power output will be set ON (1).
GFK-2950C
Chapter 4. Ladder Diagram (LD) Programming
February 2018
177
