Electrical Installation
SECTION A-A
MAINS TERMINALS
MAINS TERMINAL

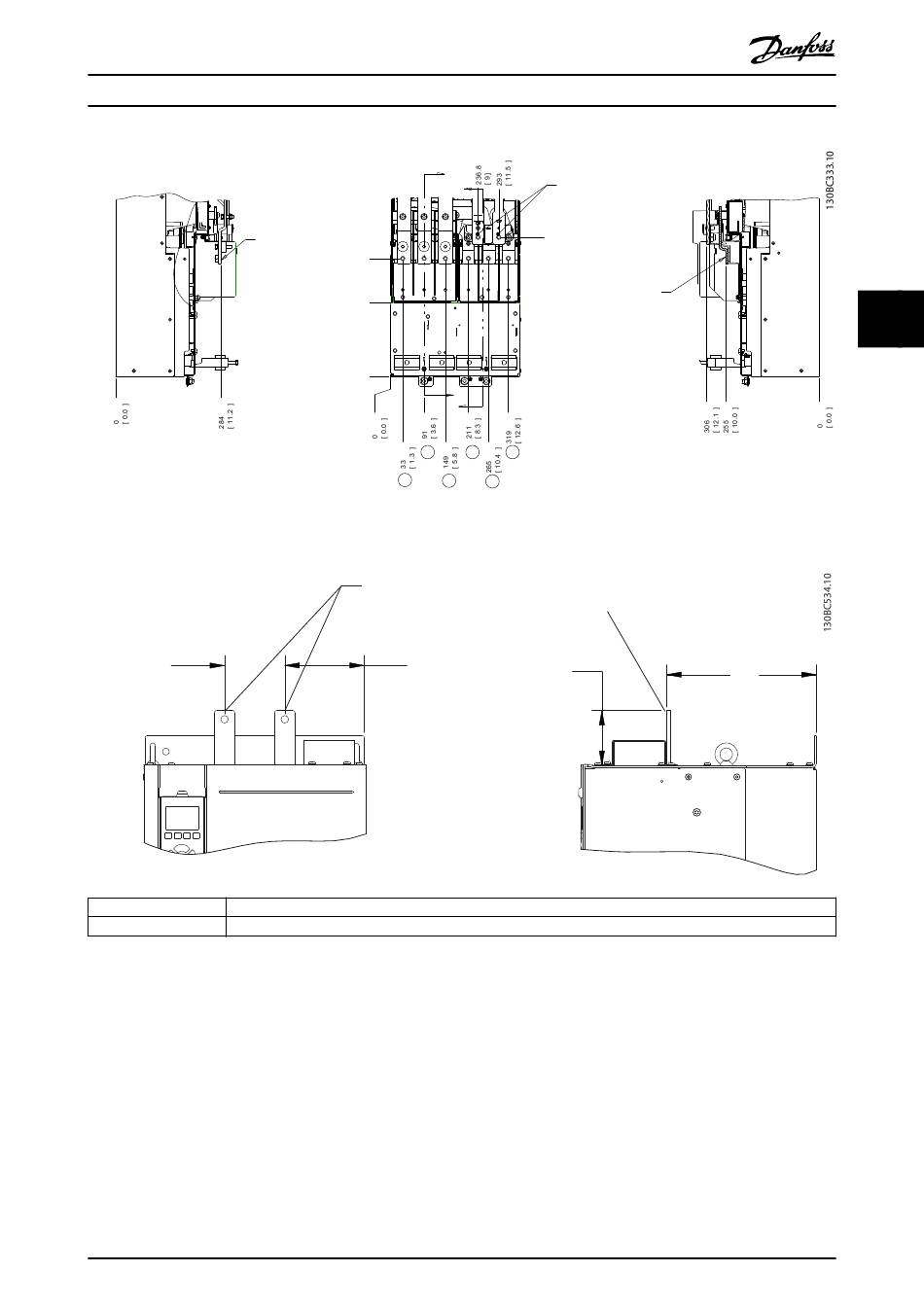

Illustration 4.8 Terminal Locations, D4h
95
[3.7]
1 Front view
2 Side view
Illustration 4.9 Load Share and Regeneration Terminals, D4h
MG34U402
Operating Instructions
A
B
319
[ 12.6 ]
200
[ 7.9 ]
0
[ 0.0 ]
A
B
S U W
R
T
V
1
126
[4.9]
