6.7
Layout
The layout of this board can be used for different voltage or power classes. The power PCB is a two layer PCB.
Get in contact with our technical support team to get more detailed information and the latest Gerber-files.

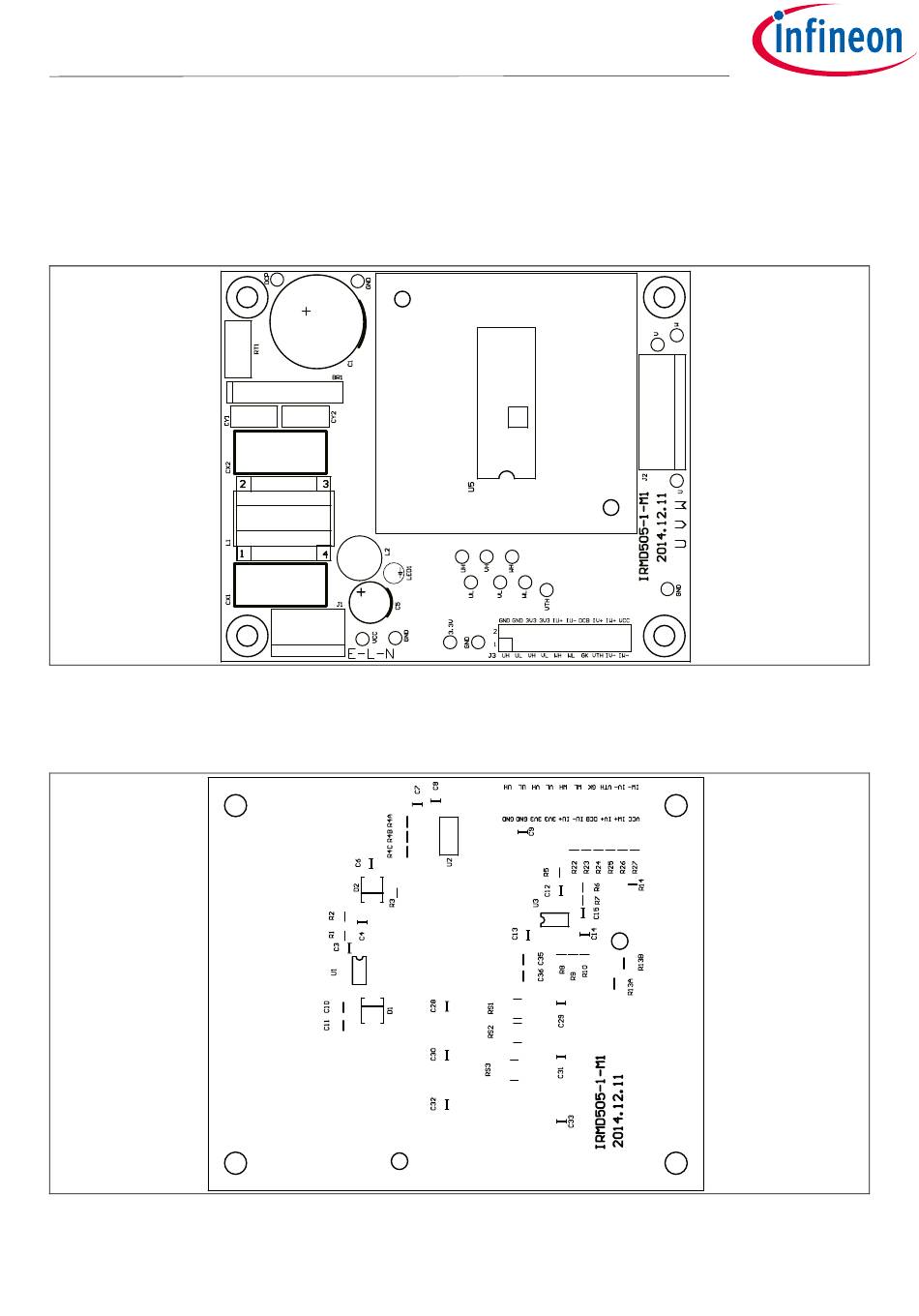

Figure 16 illustrates the top assembly print of the evaluation board.
Figure 16
Top assembly print of the EVAL-M1-05-65D evaluation board
Figure 17 depicts the bottom assembly print of the evaluation board.
Figure 17
Bottom assembly print of the EVAL-M1-05-65D evaluation board
User Manual
22
Revision 2.1
2018-07-09
