EVAL-M1-05-65D User Manual
iMOTION™ Modular Application Design Kit
Schematics and Layout
6.4
Inverter section using CIPOS™ Micro
The inverter section is implemented using the CIPOS™ Micro IPM as sketched in Figure 13. The module includes
six power MOSFETs and three half bridge gate drivers. The shunt resistor section is also given, including the 0Ω
resistors R22 to R27. These resistors allow connecting or disconnecting the shunts' signals to connector J3. The
three capacitors C29, C31 and C33 are used as bootstrap capacitors to provide the necessary floating supply
voltages V
, V
and V
BS1
BS2
BS3

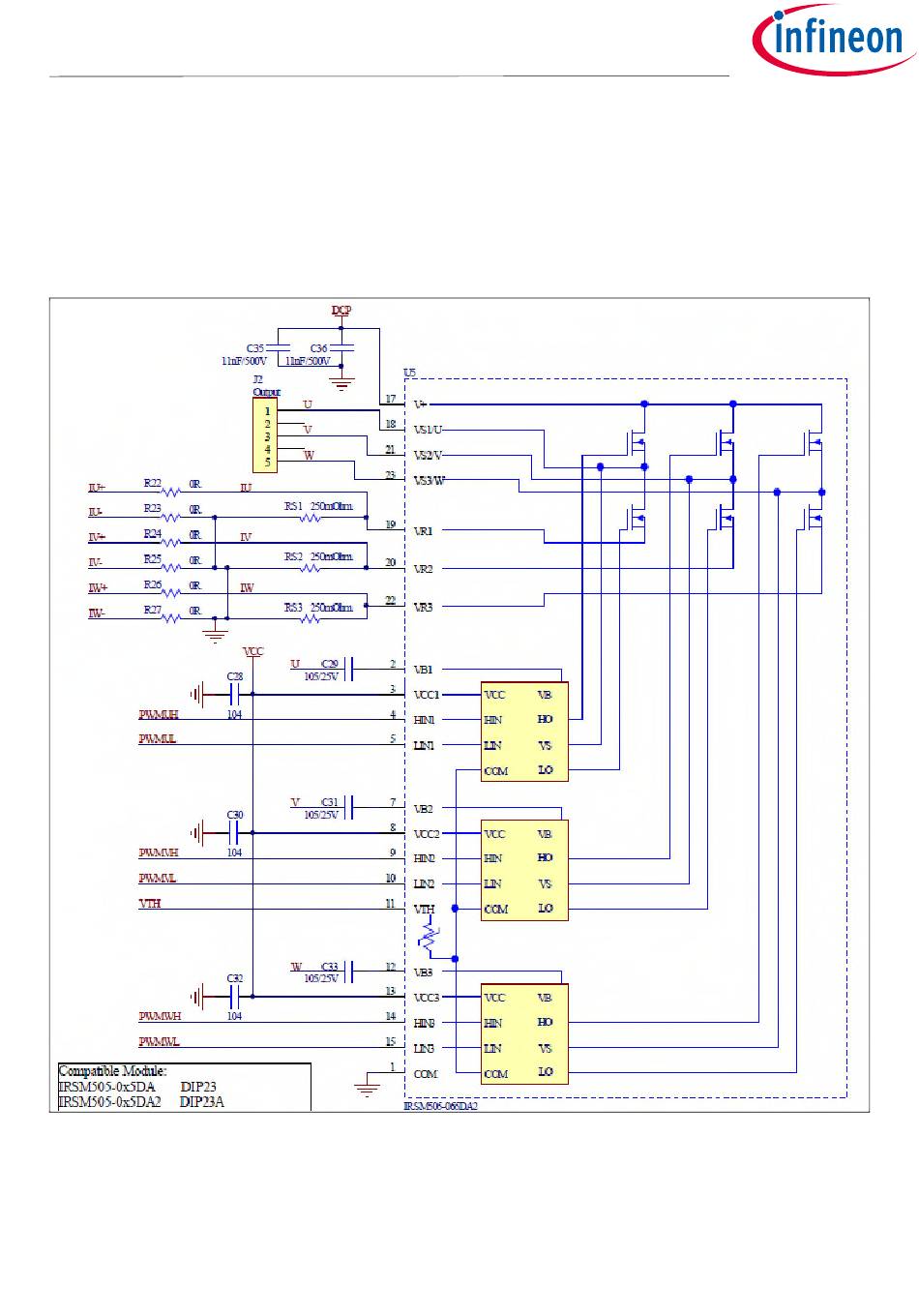

Figure 13
Schematic of the 3-phase inverter section using CIPOS™ Micro on EVAL-M1-05-65D evaluation
board
User Manual
respectively.
20
Revision 2.1
2018-07-09
