EVAL-M1-05-65D User Manual
iMOTION™ Modular Application Design Kit
Getting Started with EVAL-M1-05-65D
5.2.2

MCEDesigner setup overview

After installing MCEDesigner installer, there is a shortcut for MCEDesigner on Windows desktop. Double click
the shortcut to open MCEDesigner and then open "IMC101T_xx.irc" file as shown in Figure 8.

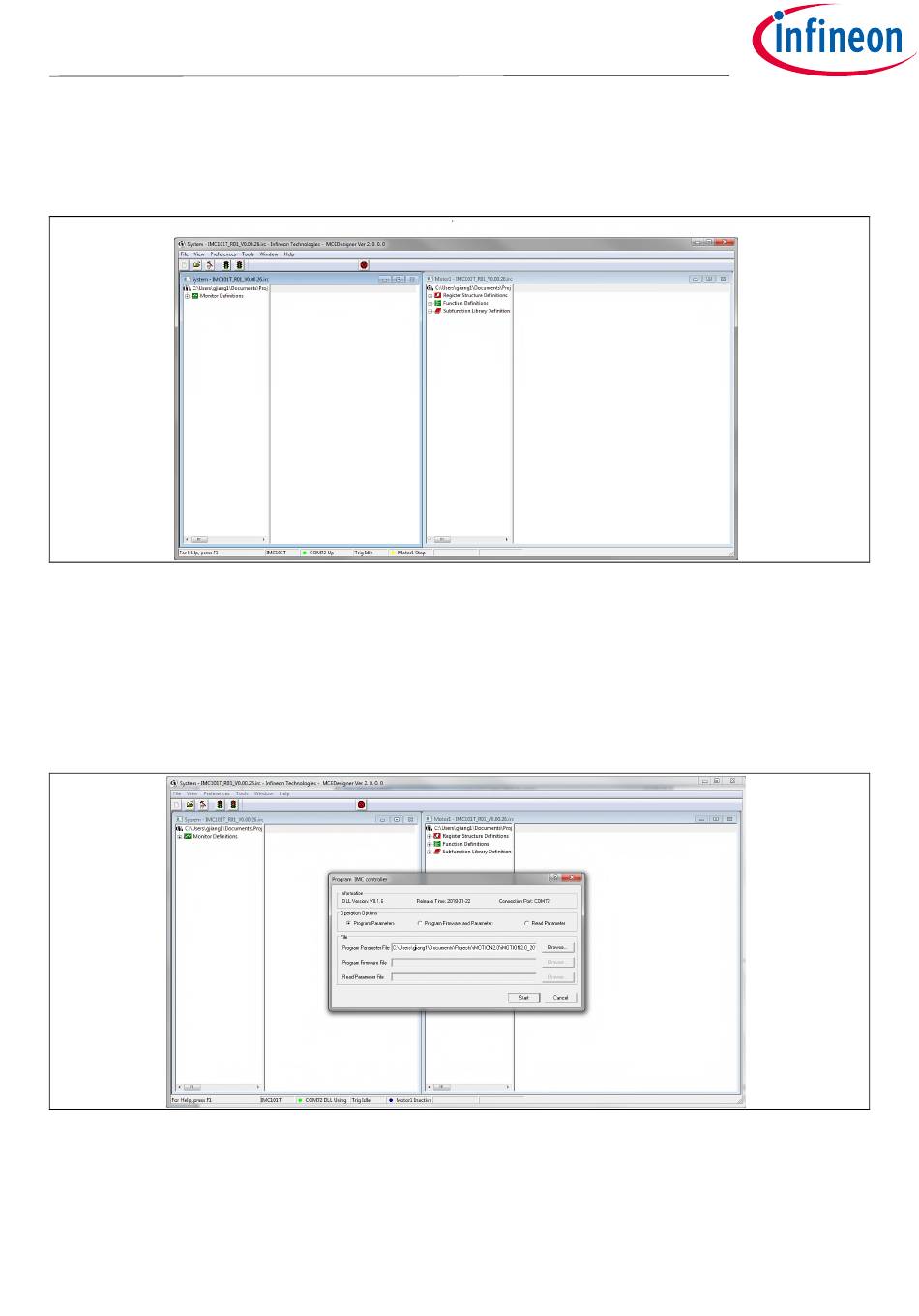

Figure 8 MCEDesigner's Main Display for EVAL-M1-101T
To program Drive System Parameter file into IMC101T-T038, please click "Tools" menu and select
"Programmer" in the pull down list. The pop-up window "Program IMC controller" will show up as in Figure 9.
Click on the "Program Parameters" radio button (this is the default option), and then select the Drive System
Parameter file created using MCEWizard by clicking on "Browse". Finally, click on the "Start" button to program
the parameter file into the IMC101T-T038 IC.
Figure 9 "Program IMC Controller" pop-up window
After Drive System Parameter file has been programmed into IMC101 controller, and the motor drive system is
powered, the MCEDesigner can be used to start/stop the motor, display motor current traces, change the motor
