Getting Started with EVAL-M1-05-65D
Table 8 provides the MCEWizard setup overview for hardware related parameters specific to EVAL-M1-05-65D
power board. Similar tables will be available in each control board's Application Note. Combination of this
table and the corresponding table of the control board provides enough information to setup the MADK-based
motor drive system in shortest time.
Table 8 MCEWizard setup overview table
Page Parameter
Welcome Page Control Board selecting
Welcome Page Power Board selecting
Options Page Motor 1 Shunt Configuration
Question 3 Controller Supply Voltage
Question 19 Max DC Bus Voltage
Question 23 DC Bus Sensing High Resistor
Question 24 DC Bus Sensing Low Resistor
Question 54 NTC Temperature Shutdown
value
Question 63 GateSense Low-Side Devices
Question 64 GateSense High-Side Devices
Question 69 Motor 1 Current Input

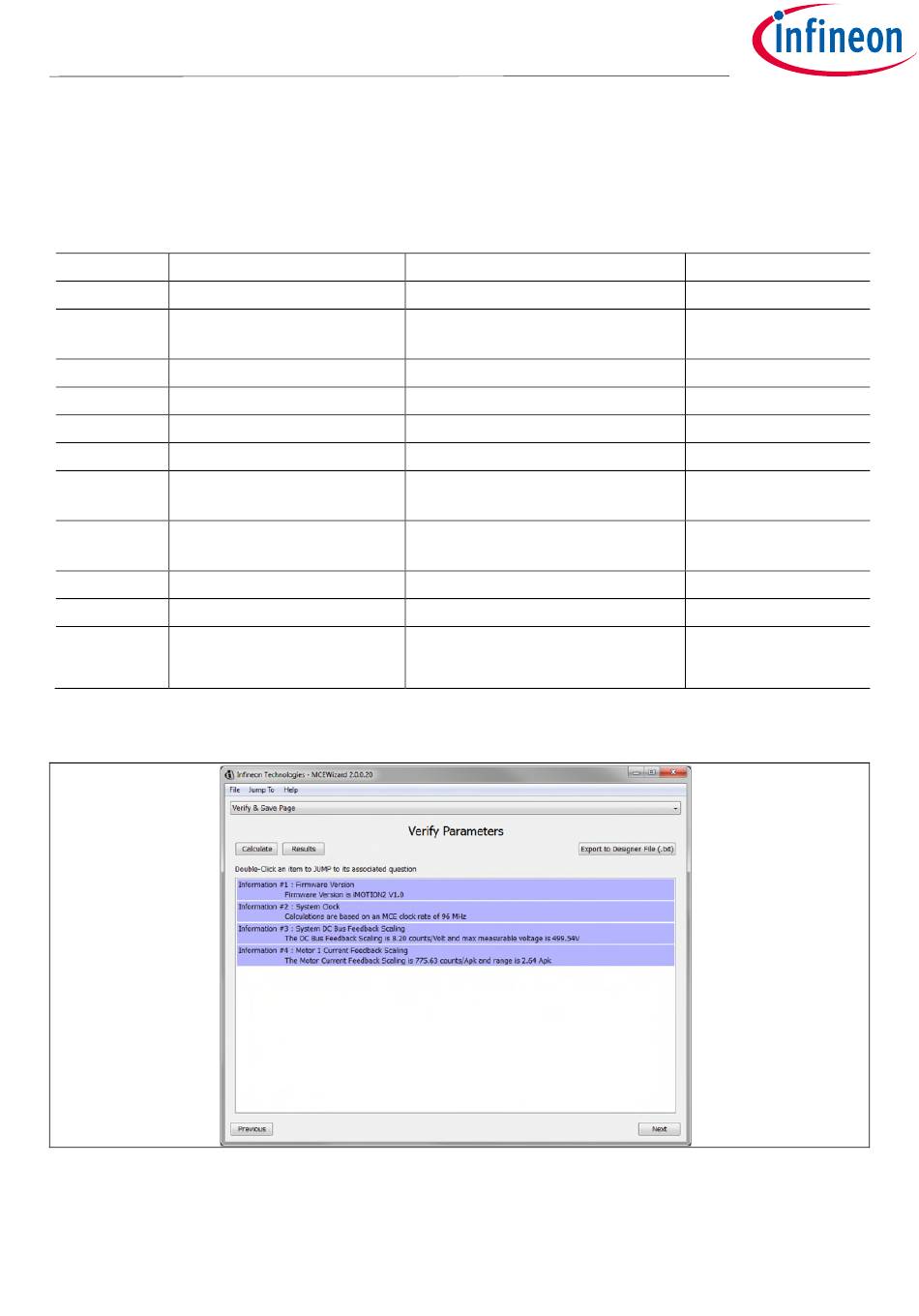

After all the MCEWizard questions are answered, the "Verify & Save Page" will be shown as in Figure 7.
Figure 7 Verify and Save page for MCEWizard
Click "Calculate" button and "Export to Designer File (.txt)" button to save the parameter file which will be used
by the MCEDesigner in the next steps.
