Shutter Installation

Plastic and Aluminum Shutters are available for the 36" Fans. Installation is identical
except where noted. See below.
1. If you have a Plastic Shutter—cut a 3/8" slot in the upper left flange of the
Shutter frame in order to route the electrical cord out the back.
2. If you have an Aluminum Shutter, route the electrical cord through the notch in
the top of the Shutter Frame. Make sure the Grommet is installed correctly in
the notch in the Shutter Frame. See Figure 7
3. Position the Shutter, centered in the Fan Shroud, and rotate the Shutter Clips to
lock the Shutter in place. Check the Shutter for proper operation—the shutter
must be able to open and close freely without obstructions.
Note: Make sure the electrical conduit and wire does not interfere with the
Fan Blades or Shutter operation.
TM
TURBO Fiberglass Cone and Grill Fan—36" Direct Drive

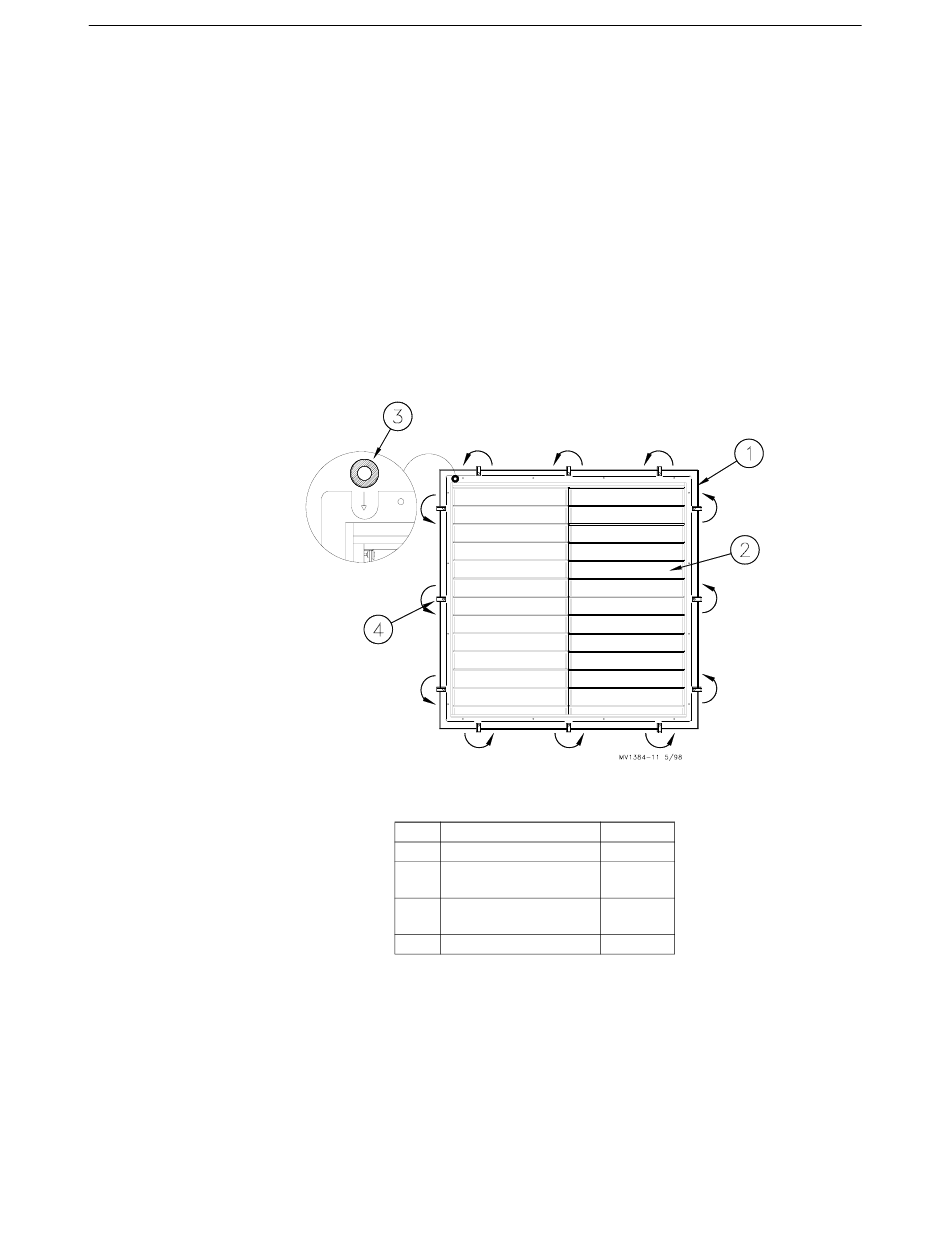

Figure 7. Shutter Installation
Key Description
1 Shroud
2 Shutter (plastic)
Shutter (aluminum)
3 Grommet
(aluminum shutter only)
4 Shutter Clip
Part No.
38590
38027
38259
7256
36729
