TURBO Fiberglass Cone and Grill Fan—36" Direct Drive
Fiberglass Grill Fan:
1. Align the holes in the Grill with the slots in the Shroud.
2. Insert the (6) Wafer Head Bolts from inside the Shroud through the Grill and
thread the Flange Nuts onto the ends of the Wafer Head Bolts.
1
5

Wiring

1. See Wiring diagram on Motor for Motor electrical connections. Follow local,
state, and national electrical codes for wiring
2. Install an electrical disconnect within reach of each Fan.
3. Route the motor cord (not supplied) toward the upper left corner of the Fan and
attach the cord to the Motor Mount using the three Cable Ties—included in the
hardware package.
Note: If an Aluminum Shutter will be installed, route the motor cord through the
Rubber Grommet—included in the hardware package see Figure 7.
Some installations may require an exit hole for the motor cord to be drilled in the side of
the Shroud. These installations must have electrical wires routed through conduit.
Note: Make sure the conduit or wires do not interfere with the Fan Blades or Shutter
operation.
10
2
3

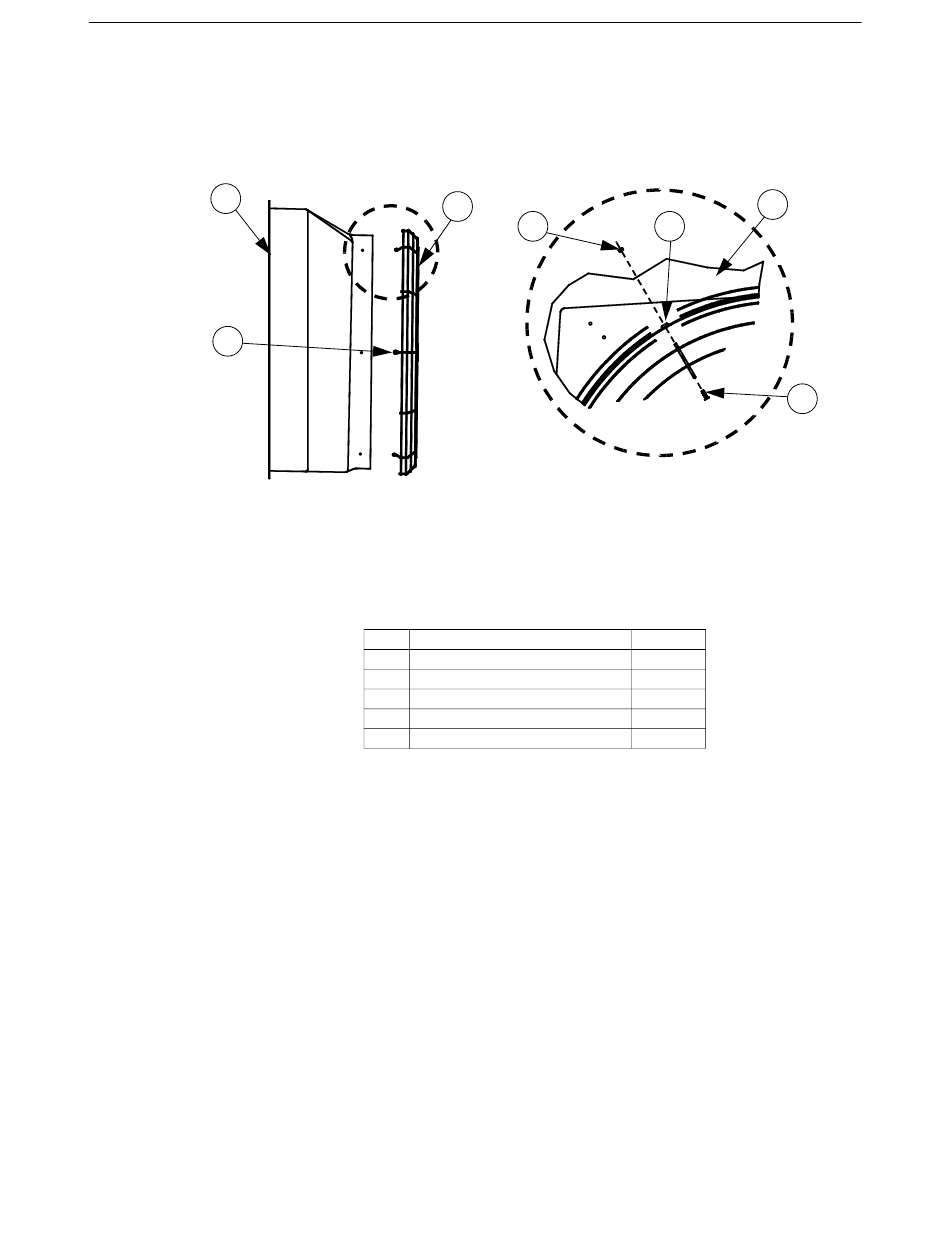

Figure 6. Grill Installation
Key Description
1 Shroud
2 Shroud Grill
3 1/4-20 SS Hex Ser. Flange Nut
4 1/4-20 x 7/8 Wafer Head Bolt
5 Shroud Grill Mounting Loop
1
5
4
Part No.
38590
37920
46298
40775
--
