Installing the Cone or Grill to the Fiberglass Fan

Fiberglass Cone Fan:
1. Slide the Cone onto the Shroud—the Shroud fits inside the Cone. See Figure 5.
4" slots are cut into the edge of the cone to allow expansion as the cone is slide onto the
shroud.
Align the holes in the Cone with the slots in the Shroud.
Insert the (6) Wafer Head Bolts from inside the Shroud through the Cone and thread the Flange Nuts
onto ends of the Wafer Head Bolts.
2. Snap the Cone Grill into the slots on the outlet end of the Cone.
2
1
5

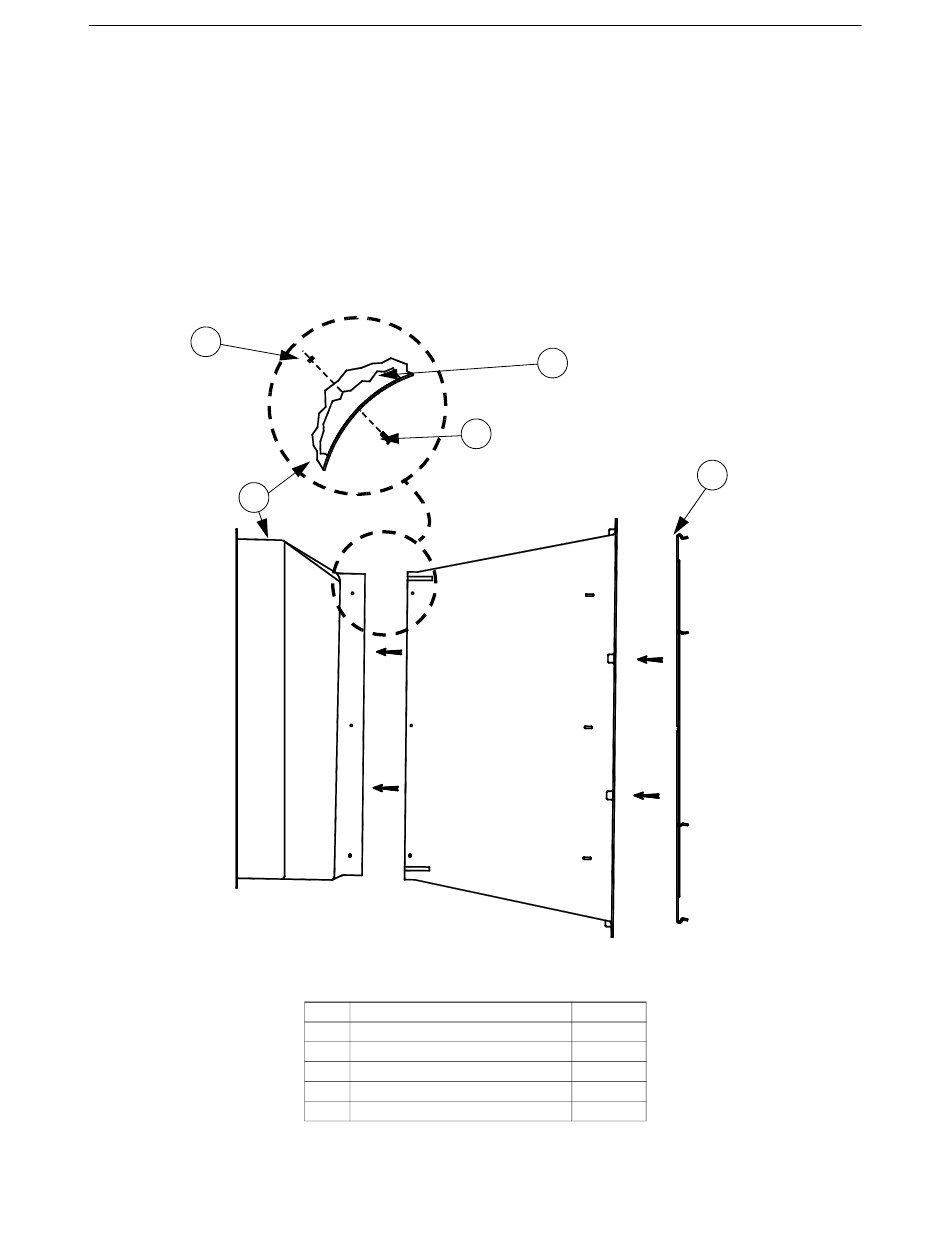

Figure 5. Cone Installation
Key Description
1 Shroud
2 1/4-20 SS Hex Ser. Flange Nut
3 Cone Grill
4 Cone
5 1/4-20 x 7/8 Wafer Head Bolt
TM
TURBO Fiberglass Cone and Grill Fan—36" Direct Drive
4
Part No.
38590
46298
35228
38267
40775
3
9
