Shutter Installation - Chore-Time TURBO Installation & Operator's Instruction Manual

Fan Installation
12

Shutter Installation

Plastic and Aluminum Shutters are available for the 36" Fans. Installation is
identical except where noted. See below.
1. If you have a Plastic Shutter—cut a 3/8" slot in the upper left flange of
the Shutter frame in order to route the electrical cord out the back.
2. If you have an Aluminum Shutter, route the electrical cord through the
notch in the top of the Shutter Frame. Make sure the Grommet is installed
correctly in the notch in the Shutter Frame. (See Figure 9 below)
3. Position the Shutter, centered in the Fan Shroud, and rotate the Shutter
Clips to lock the Shutter in place. Check the Shutter for proper
operation—the shutter must be able to open and close freely without
obstructions.
Note: Make sure the electrical conduit and wire does not interfere with
the Fan Blades or Shutter operation.
3
4
Key Description
1 Shroud (White)
Shroud (Black)
2 Shutter (White Plastic)
Shutter (Gray Plastic)
Shutter (Aluminum)
3 Grommet
(Aluminum Shutter only)
4 Shutter Clip

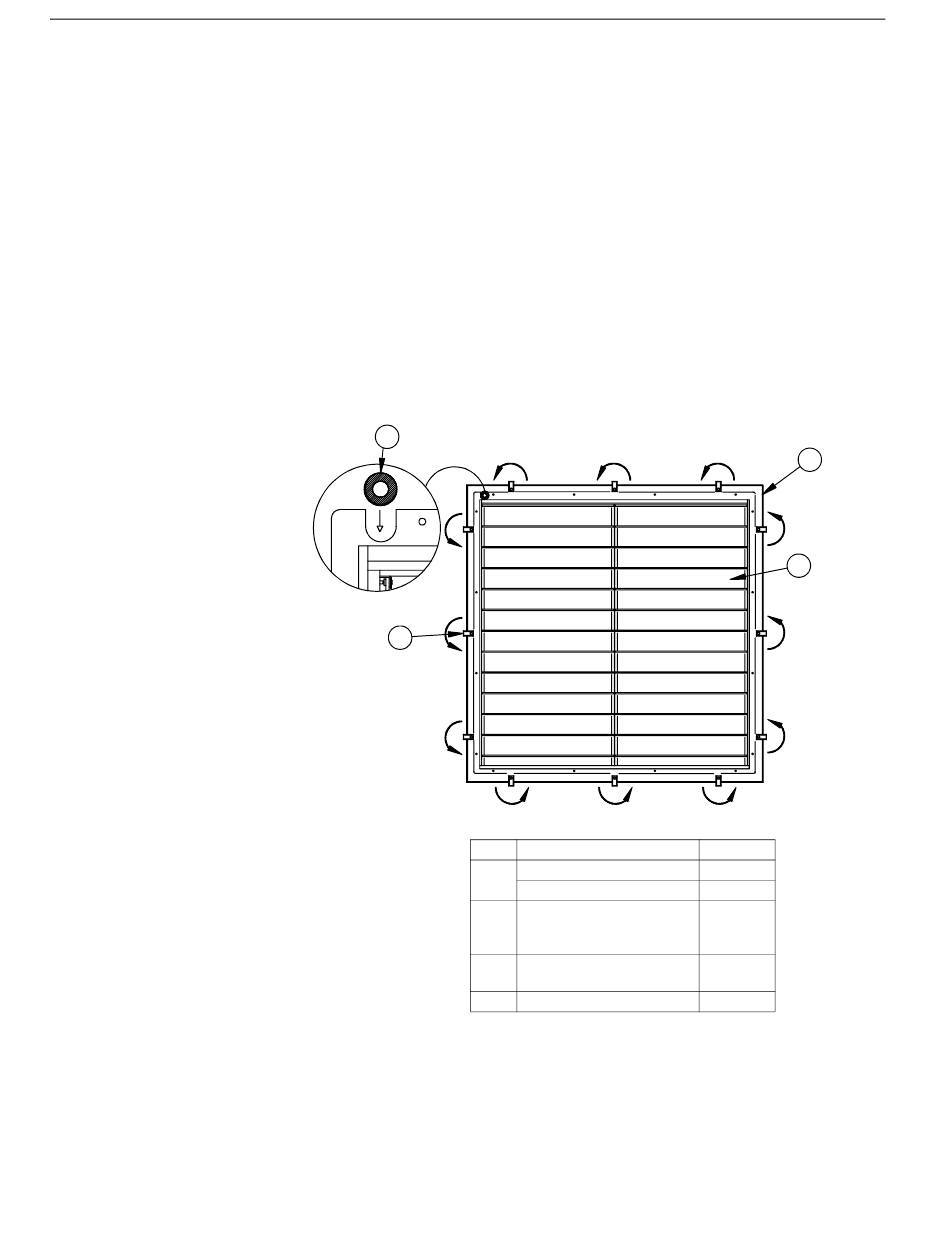

Figure 9. Shutter Installation
36" Belt Drive
1
2
Mv1680-011 02/01
Part No.
37913
46970
38027
46972
38259
7256
36729
MV1680H
