36" Belt Drive

MV1680H

Remove Nylon Ties

1. Cut and Remove Nylon Ties from the Driven Sheave and the

Motor (See Figure 7).

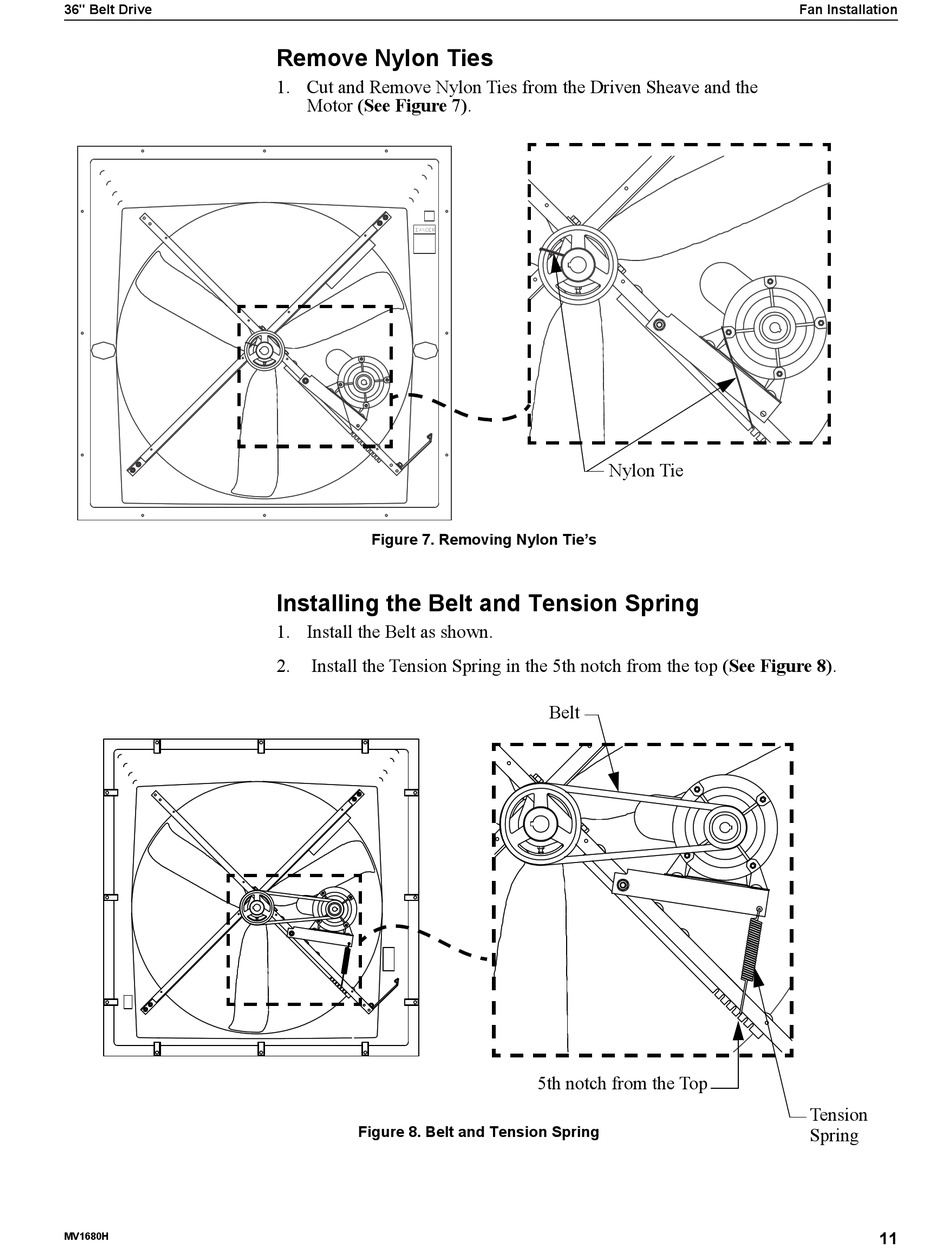

Figure 7. Removing Nylon Tie's

1. Install the Belt as shown.

Install the Tension Spring in the 5th notch from the top (See Figure 8).

Figure 8. Belt and Tension Spring

Nylon Tie

Belt

Nylon Tie

5th notch from the Top

Fan Installation

Tension

Spring
