36" Belt Drive
2
1
4
MV1680H

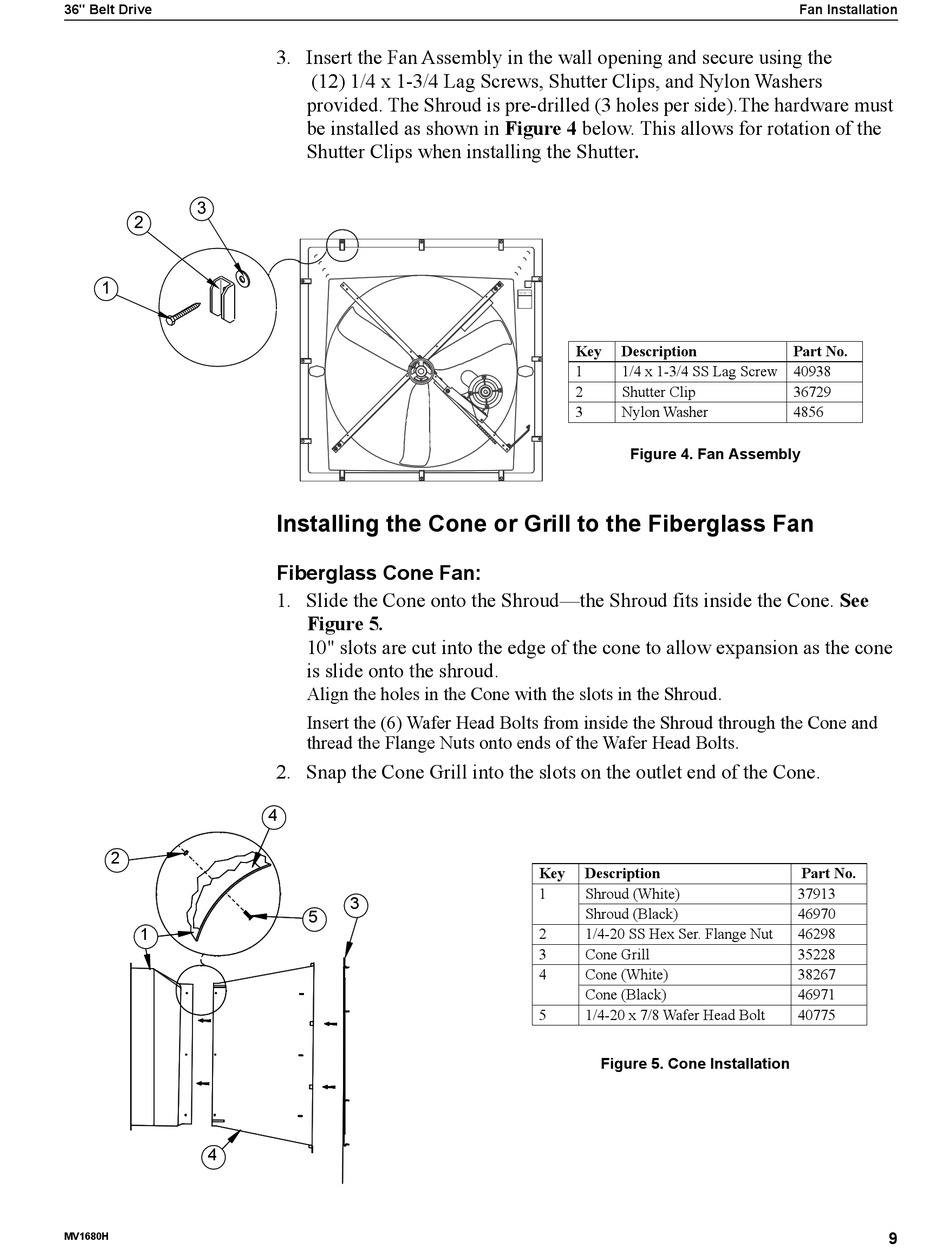

3. Insert the Fan Assembly in the wall opening and secure using the
(12) 1/4 x 1-3/4 Lag Screws, Shutter Clips, and Nylon Washers
provided. The Shroud is pre-drilled (3 holes per side).The hardware must
be installed as shown in Figure 4 below. This allows for rotation of the
Shutter Clips when installing the Shutter.

Installing the Cone or Grill to the Fiberglass Fan

Fiberglass Cone Fan:

1. Slide the Cone onto the Shroud—the Shroud fits inside the Cone. See
Figure 5. 
10" slots are cut into the edge of the cone to allow expansion as the cone
is slide onto the shroud.
Align the holes in the Cone with the slots in the Shroud.
Insert the (6) Wafer Head Bolts from inside the Shroud through the Cone and
thread the Flange Nuts onto ends of the Wafer Head Bolts.
2. Snap the Cone Grill into the slots on the outlet end of the Cone.
4
3
5
Key Description
1 1/4 x 1-3/4 SS Lag Screw 40938
2 Shutter Clip
3 Nylon Washer
Figure 4. Fan Assembly
Key Description
1 Shroud (White)
Shroud (Black)
2 1/4-20 SS Hex Ser. Flange Nut
3 Cone Grill
4 Cone (White)
Cone (Black)
5 1/4-20 x 7/8 Wafer Head Bolt
Figure 5. Cone Installation
Fan Installation
Part No.
36729
4856
Part No.
37913
46970
46298
35228
38267
46971
40775
9
