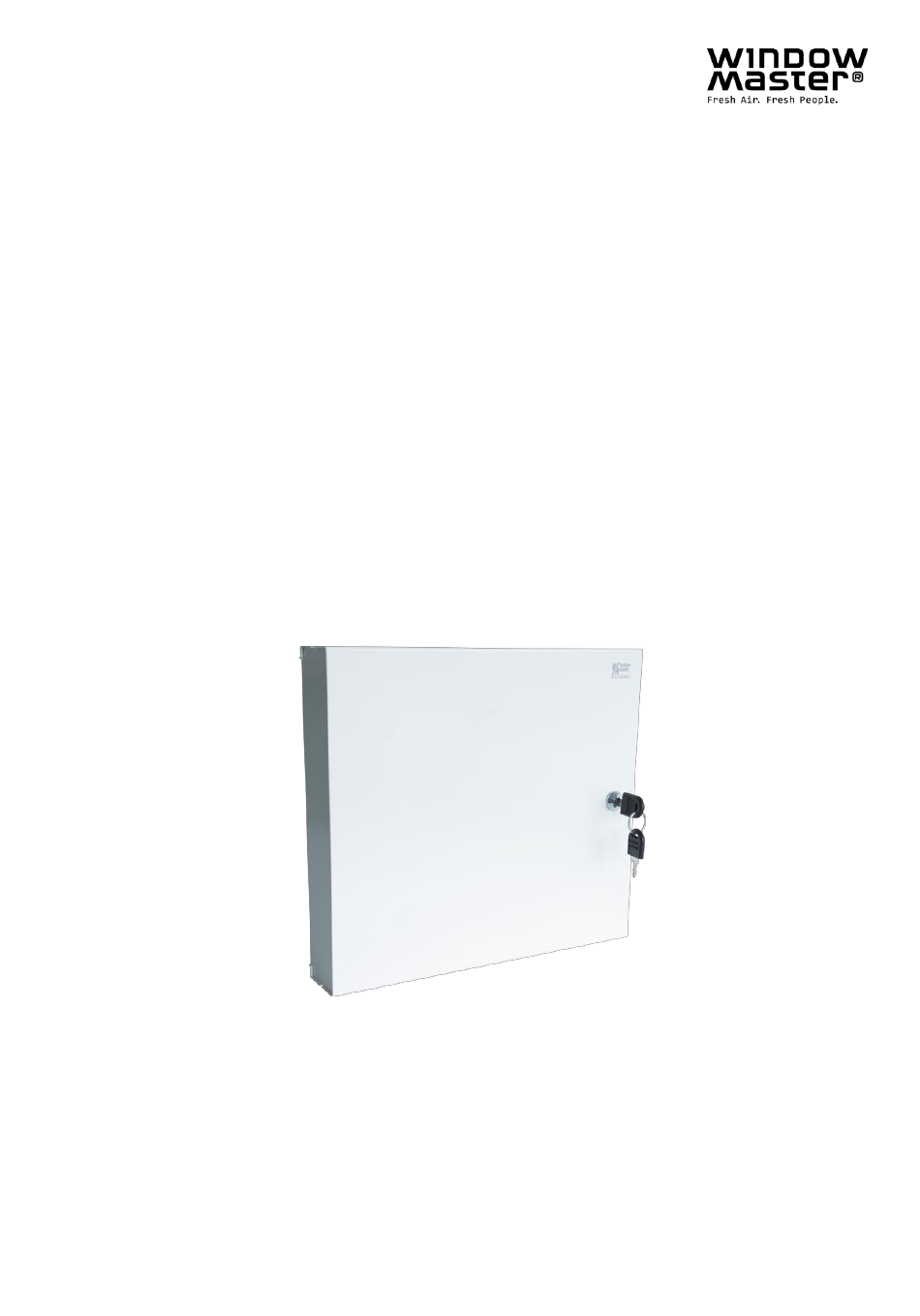

WCC 310 & WCC 320 UL
(Version 1711 – for firmware from version 1.23 (main card) &
Save this installation instruction to the end user
+1 650 543 8166
US
+45 4567 0300
Other markets
WCC 3xx install 1711-Firmware v123 UL - UK
WindowMasterInternational A/S, Skelstedet 13, DK-2950 Vedbæk
Plus versions
Installation instruction
UL MotorController
from version 1.06 (motor line card))
info.us@windowmaster.com
info@windowmaster.com
©WindowMaster 2016, 2017 ®WindowMaster is a registred trademark used under the license by WindowMaster International A/S
www.windowmaster.com
Advertisement
Table of Contents
Related Manuals for Window Master MotorController WCC 310 UL
Summary of Contents for Window Master MotorController WCC 310 UL
- Page 1 WCC 310 & WCC 320 UL Plus versions Installation instruction UL MotorController (Version 1711 – for firmware from version 1.23 (main card) & from version 1.06 (motor line card)) Save this installation instruction to the end user +1 650 543 8166 info.us@windowmaster.com +45 4567 0300 Other markets...
-
Page 2: Table Of Contents
1 Safety information ................................ 4 Safety ................................4 120V AC ................................4 Application ................................. 4 Cable routing and electrical connection ......................4 2 Structure of the MotorController ..........................5 3 Variants of MotorControllers ............................6 MotorController version ............................. 6 Max numbers of actuators per motor line and MotorController ................6 4 Accessories and spare parts ............................ - Page 3 12.4.2 Local input - configuration ........................... 28 12.4.3 Usage of wind/rain sensors - WLA 33x ...................... 29 Local output ..............................29 12.5.1 Numbering of local output ........................... 29 12.5.2 Local output - configuration ......................... 30 Weather station type ............................30 Sequence control .............................31 WSK-Link™...
-
Page 4: Safety Information
Safety information Safety Only allow correspondingly trained, qualified and skilled personnel to carry out installation work. Reliable operation and the avoidance of damage and hazards are only guaranteed if installation and settings are carried out carefully in accordance with these instructions. There may be personal danger by electrically operated windows: - the forces occurring in the automatic mode can be such that parts of the body could get crushed - when opened, actuators (spindles) could protrude into the room... -
Page 5: Structure Of The Motorcontroller
Structure of the MotorController Sizes & Versions The WCC 310 and WCC 320 MotorControllers are available in two different versions namely a Standard and a Plus version. This installation instruction only deals with the Plus versions. Please see separate installation instruction for the Standard versions of WCC 310 and WCC 320. -
Page 6: Variants Of Motorcontrollers
Variants of MotorControllers Item composing WCC 3 U1 = UL Std. 325 and product version number 1 Input card* 02 = No input card 12 = Input card (10 additional keypad inputs) Motor line card 02 = No motor line card 06 = Motor line card (4 additional lines) 10 = Motor line card (8 additional lines) MotorController version... -
Page 7: Accessories And Spare Parts
Per motor linie Per 10A MotorController Per 20A MotorController ® ® ® ± 24V MotorLink MotorLink actuators MotorLink actuators ± 24V actuators ± 24V actuators actuators actuators (10 Motor lines) (10 Motor lines) WMX 503 / 504 / 523 / 526-1 WMX 503 / 504 / 523 / 526-2 WMX 503 / 504 / 523 / 526-3 WMX 503 / 504 / 523 / 526-4... -
Page 8: Technical Data
Technical data Technical data Output current (nominal) WCC 310: 10A / WCC 320: 20A Secondary voltage Voltage 24V DC (±15%) Open circuit voltage (no load) 27.6V DC @ 20°C Ripple at max load max. 6% (3.5Vpp) 24V DC, 0.23A Motor lines WCC 310 0202: max 2, WCC 320 1012: max 10 ®... -
Page 9: Mounting
Mounting The MotorController is fixed to the wall through the Ø6mm holes in the back plane of the housing. The MotorController is to be located in a safe place, protected from the effects of fire and smoke. Installation Cable routing See also chapter 8 “Cable dimensioning”... -
Page 10: Cable Dimensioning
Cable dimensioning Max. cable Length Maximum permissible cable length from the MotorController to the actuators taking into account the cable cross-section is shown in the following tables for “± 24V standard actuators“, “MotorLink ® actuators“. 8.1.1 Formula for the calculation of the maximum actuator cable length Max. -
Page 11: Max Cable Length - Actuators With Motorlink
8.1.3 Max cable length – actuators with MotorLink ® The actuator supply cable must have 3 wires: 2 wires current carrying / 1 wire for communication. ® When a 5 wire cable is used for MotorLink It is not recommended to use parallel-wire. ®... -
Page 12: Cable Plan For Connection To Wcc 310 / 320 Plus Version
Cable plan for connection to WCC 310 / 320 Plus version The above plan shows a WCC 320 MotorController... -
Page 13: Description Of Cards And Mains Connection
Description of cards and mains connection Each MotorController includes a power supply unit (SMPS), an auxiliary power supply (AUX) and a main control card. Motor line can input cards for additional motor lines and inputs (e.g. for key pads) as well as a field bus card can be added when necessary. The size of the power supply unit determines the number and/or types of actuators, which can be connected to the MotorController. -
Page 14: Main Control Card Wca 3Cp - Plus Version
Main control card WCA 3CP – Plus Version Each WCA 3CP contains the following: - 2 motor lines for ±24V ® standard or Motorlink actuators - 2 input for keypads for comfort ventilation - Input for weather station incl. wind direction (WLA 330 / 331 / 340 / WOW 201 / 202) - Input for master / slave connection... - Page 15 Besides actuators, also locking actuators (espagnolettes actuators) type WMB 801/802 and WMB 811/812 can be connected. The power consumption of the locking actuators are not to be included in the 10A / 20A as actuaators and locking actuators do not run at the same time. All actuators on the same motor line will run/be operated simultaneously.
- Page 16 For connection of comfort keypads. X3 / X4 Input circuit (simplified) Data 3.1 Open 4.1 Open 3.2 Close 4.2 Close 3.3 GND / 0V 4.3 GND / 0V With the default values are input: ”Active” if the contact resistance is smaller than 2kΩ ”Inactive”...
- Page 17 2 free configurable solid state outputs Output circuit (simplified) 9.3 Output A 9.4 Output A 9.5 Output B 9.6 Output B Data Max voltage: 30 Vp (peak) AC/DC Max current: 150 mA Typical On-resistance: 4.7 Ω Max On-resistance: 8 Ω Max switching speed: 2 ms, only for DC-voltage Example with solid state and relay (polarization is not important)
- Page 18 Example 1: Wind/rain and rain sensors WLA 330 and WLA 331– the settings of the sensors are set on the sensor. WLA 340 – the settings of the sensor are programmable on the MotorControlle’s touch screen. Data 10.1 24V AUX 10.2 Wind speed 10.3 GND / 0V 10.4 24V...
- Page 19 For connection of master / slave connection via WSK-Link™. Data: 11.1 24V IN 11.2 Communication IN 11.3 0V IN A master-slave connection via WSK-Link™ enables signals to be distributed between several MotorControllers or/and the MotorController may be used as slave in a 120V UPS smoke ventilation system. On the master MotorController, either use input X5 or X6 for the master-slave connection.
- Page 20 Even though the connecting method of MotorControllers shown in the #2 example, enables a physical larger system, with longer distances between MotorControllers, WindowMaster recommends connecting the master slave MotorControllers as shown in example #1. As only the master sends e.g. smoke commands and slaves only respond to commands received from the master, the response time in example 2 is heavily increased in comparison with the response time in example 1.
-
Page 21: Motor Line Card - Wca 3M4 / Wca 3M8
Motor line card – WCA 3M4 / WCA 3M8 The motor line cards WCA 3M4 and WCA 3M8, allows connection of additional 4 and 8 motor lines respectively either ® ±24V standard or MotorLink The WCA 3M4 / WCA 3M8 is connected to WCA 3CP via a CAN-cable (J3 on WCA 3M4 / WCA 3M8 and... -
Page 22: Keypad Card - Wca 3Ki
Keypad card – WCA 3KI The keypad card allows connection of 10 keypads. WCA 3KI requires the WCA 3M4 / WCA 3M8 actuator card. The WCA 3KI is connected to WCA 3M4 / WCA 3M8 via cable (J1 on the WCA 3KI and J6 on the WCA 3M4 / WCA 3M8). -
Page 23: Power Supply Card - Wca 3P6
Power supply card – WCA 3P6 Mains and protective earth is connected to the MotorController via the power supply card. S4 X1 Connection to mains. S4 X2 AUX connection to WCA 3CP. S4 X3 Connection to power supply WCA 3P3 (10A) or WCA 3P4 (20A) Protective earth (PE). -
Page 24: Touch Screen
Touch screen The plus version of the MotorController comes with a touch screen. All connected components (actuators, keypads, weather station etc.) are to be configured on the touch screen. The menu of the touch screen is in steps: Step 1: main menu Step 2: sub menu Step 3: configuration / showing / operation of the sub menu Step 1: Main menu... -
Page 25: Rotation Of The Touch Screen
Rotation of the touch screen The picture on the touch screen can be rotated 180° Configuration – main menu All connected components (actuators, keypads, weather station etc.) are to be configured. As the MotorController has pre-settings for PIN code for access to level 3, the code is to be entered before it is possible to begin the configuration (see chapter 12.10 “Log in”). -
Page 26: Motor Line
Motor line ® Actuators are to be connected on the motor lines. ±24V standard actuators and actuators with MotorLink can be connected to all motor lines, but a motor line can only be connected to one type of actuators – either ±24V standard or MotorLink ®... -
Page 27: Colour Code - Motor Line
® The MotorLink actuators are to be configured in: 1. Output mode: informs the type of the actuator selected 2. Expected no. of motors (displayed if actuator type = ® MotorLink 3. Motor group 4. Expected no. of locking motors 4.1 No. -
Page 28: Local Input
Local input The MotorController has two programmable inputs and one input for wind/rain. If further inputs are needed, the input card WCA 8KI (requires the motor line card) can be added. This card has ten local inputs. The touch screen has an overview of the local inputs. 12.4.1 Numbering of local inputs All local inputs are numbered. -
Page 29: Usage Of Wind/Rain Sensors - Wla 33X
12.4.3 Usage of wind/rain sensors - WLA 33x Usage of wind/rain sensors WLA 33x with motor groups (MG): The used input e.g. S1X10.5 is configured to “Control motor groups”, the groups are chosen. Then, in the menu “Active function in controlled motor groups” the function “Safety”... -
Page 30: Local Output - Configuration
12.5.2 Local output - configuration If component are installed in one or more outputs, these outputs are to be configured. Which item to be configured depends on the type of output – see description below. Local output - overview Overview ’Local output’ Overview ’Local output’... -
Page 31: Sequence Control
Weather shall be configured in: None (no configuration) Filter constant Slow filter constant Use RMS in filter The appendix contains all the items that can be configured - see appendix for detailed explanation. 1. Pulses/sec. per m/s 2. Filter constant Configuration of the sensor 3. -
Page 32: Wsk-Link™ - Master/Slave Connection
Sequence control configuration – motor line 1. Sequential control position limit the max position the motor line is allowed to have without the „result“ is being fulfilled. ® For MotorLink motor lines stepless variable. For ±24 Volt motor lines 0 or 100% 2. -
Page 33: Log In
Network shall be configured in: 1. DHCP 2. Power setting The appendix contains all the items that can be configured - see appendix for detailed explanation. Configuration of ’Network’ Log in The access level to the MotorController is set in four levels. Level Access to Who has access... -
Page 34: Configuration Files On Usb
The user is at access level 3. Access approved to login level 3 Login shall be configured in: The access levels can be locked and access to the level is only possible with a PIN code. Each level has a unique PIN code. 1. -
Page 35: System
System It is possible to change settings on the touch screen e.g. language, clock setting, date display, service timer etc. System can be configured in 1. Language 2. Backup time stamp (not to be configured) 3. Unsaved changes… (not to be configured) 4. -
Page 36: Bacnet Configuration
KNX bus shall be configured in: For all the objects the Power setting for the KNX bus must be configured. 12.13.2 BACnet configuration BACnet overview – object configuration Overview of the BACnet objects. For each BACnet object a direction must be configured None Input Output... -
Page 37: Manual Operation And Main Menu
Manual operation and main menu It is possible to operate the motor lines, the motor groups and the smoke zones direct on the touch screen. What to be manually operated: 1. Motor line – see text below 2. Motor group Main overview: manual operation Operation types Motor lines and motor groups... -
Page 38: Remote Control Of Motorcontroller
Remote control of MotorController It is possible to remote control a MotorController from a PC or via USB device. When the MotorController is on a standard computer network (Ethernet) you can from any PC with the “WMaFlexiSmokeRemote” program control the MotorController just like if you were standing in front of the itl. If the MotorController is not connected to a network then it can be remote controlled via a USB connection using the “WMaFlexiSmokeRemote”... -
Page 39: With Mains Voltage
With mains voltage Adhere to the relevant regulations! Connect the mains cables and reapply the mains voltage. Ventilation keypad Closely observe the actuators during opening and closing. They must not be impaired in any position by the building structure. Observe that the actuator cables are not being subject to pulling or pinching. Check each ventilation keypad individually.
