WCC 106 A
Installation instruction
MotorController
(Version 2311)
Save this installation manual for the end user
The latest version of this document can always be found on our website
UK
+44 1536 614070
Others
+45 45 670 300
WCC 106 A install 2311 – EN_DE_DK ©WindowMaster 2023 ®WindowMaster is a registered trademark used under license from WindowMaster International A/S
WindowMaster International A/S, Skelstedet 13, DK 2950 Vedbæk
info.uk@windowmaster.com
info.dk@windowmaster.com
www.windowmaster.com
Advertisement
Table of Contents
Related Manuals for Window Master WCC 106 A
Summary of Contents for Window Master WCC 106 A
- Page 1 +44 1536 614070 info.uk@windowmaster.com www.windowmaster.com Others +45 45 670 300 info.dk@windowmaster.com WCC 106 A install 2311 – EN_DE_DK ©WindowMaster 2023 ®WindowMaster is a registered trademark used under license from WindowMaster International A/S WindowMaster International A/S, Skelstedet 13, DK 2950 Vedbæk...
-
Page 2: Table Of Contents
Max cable length – actuators with MotorLink ® 7.1.3 ....................8 8 Connection plan for WCC 106 A ..........................9 9 Connection description ............................. 10 10 DIP switch configuration ............................14 11 Control via remote control – WCA 100 ........................15 11.1... -
Page 3: Safety Regulations

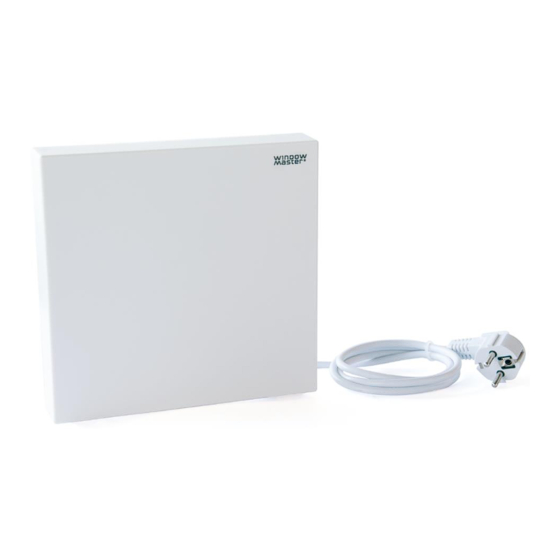

Introduction to WCC 106 A WCC 106 A is a MotorController that controls (opens/closes) 1 or more ±24V standard or MotorLink® window actuators on the basis of a signal from the remote-control type WCA 100, the App “Fresh Air Control”, connected comfort keypads or the connected components, e.g., room sensors and weather sensors. -
Page 4: Motorcontroller Variants
Max number of actuators per MotorController The table shows the maximum number of actuators which can be connected to the WCC 106 A. The total power consumption for all connected actuators incl. load on X7 (AUX max 0.5A) may not exceed 6A. -
Page 5: Accessories
Idling < 0.5W Full load 150W Leakage current Max 0.75mA @ 240VAC Inrush current on primary side 60A < 5ms w. 230V Max. 3 x WCC 106 A per 10A power supply group. Circuit breaker “C” type. ±24V Min. 500ms... -
Page 6: Mounting
The MotorController is supplied with a 1.2 m cable with Schuko plug. Connecting cables in the MotorController Cables are to be connected in accordance with the chapter “Connection plan for WCC 106 A”, the short chapters and other relevant paragraphs in these guidelines. -
Page 7: Assembly Instructions
Assembly instructions Always have assembly, installation, repair and maintenance of ventilation systems carried out by qualified personnel trained for this purpose. Rules to be adhered to for setting up and installation The following safety relevant rules have to be adhered to when planning the use of a ventilation system and its set-up and installation: •... -
Page 8: 7.1.3 Max Cable Length - Actuators With Motorlink
7.1.3 Max cable length – actuators with MotorLink ® The actuator supply cable must have 3 wires: 2 wires current carrying / 1 wire for communication. ® When a 5-wire cable is used for MotorLink It is not recommended to use parallel-wire. ®... -
Page 9: Connection Plan For Wcc 106 A
Connection plan for WCC 106 A The above connection plan shows a WCC 106 A MotorController... -
Page 10: Connection Description
/ rain sensor. WCC 106 A contains two motor lines to which ±24V standard actuators or MotorLink® actuators can be connected. The two motor lines must run with the same type of actuators, meaning either ±24V standard actuators or MotorLink®... - Page 11 may also be connected. The locking actuators’ power consumption is not included in the calculated 6A as the actuators and locking actuators do not run simultaneously. All actuators on the same motor line run/are operated at the same time. All actuators on a motor line must be the same type. Connection / cable diameter: flexible max 6 mm²...
- Page 12 X2 / X4 Input for connection of comfort keypad Motor line 1: Motor line 2: Data: Data: 2.1 Open 4.1 Open 2.2 Close 4.2 Close 2.3 GND / 0V 4.3 GND / 0V Input circuit (simplified) With the factory-set values the input is: “Active”...
- Page 13 AUX, power supply for weather station, for example. See “X10” for a description of connection of rain/wind sensors. Data: 7.1 24V 7.2 0V Maximum 500 mA Main power must be switched off, before connecting any kind of external equipment to X7! Connected consumption must be included in the controller’s total load, which must not exceed 6A.
-
Page 14: Dip Switch Configuration
DIP switch block with 8 DIP switches. Maintained action Rain delay Extended hand timer Surveillance MotorLink® 100% speed Accumulated step Motor line 2, motors run independently Factory setting = OFF See chapter “DIP switch configuration” for detail information. ↓ ↑ Close / Open all windows Reset FW update;... -
Page 15: Control Via Remote Control - Wca 100
Description on the DIP switch position switch MotorControlleren ML 2, motors run ON: the actuators on motor line 2 are controlled individually via input X2, X3, X4 and X5. independently Up to 4 actuators can be connected to motor line 2 and all actuators must be single / -1 actuators. -
Page 16: Before Use
In the event of failure/error of the MotorController one or more diodes will light and/or blink. On the WCC 106 A there are 4 diodes - 3 green and 1 yellow - that can indicate errors and status on the MotorController. -
Page 17: Commissioning And Test Run
Yellow diode – LED 1 If the yellow diode lights, this indicates an error on the MotorController. Black = diode off Error indicator on the yellow diode is a total errors indicator. Detailed information on the error type can be decoded on the green diode. -
Page 18: With Network Power
If commissioning proceeds correctly, the lid of the MotorController may be fitted. If commissioning does not proceed correctly, i.e. there is an error in one of the test points, refer to chapter “Connection description” If necessary, re-test the cable routing in accordance with chapter “Connection plan for WCC 106 A”. Maintenance Control and maintenance should only be done by the manufacturer or an authorized partner.
