Facp/Optional Power Supply Hook-Up Diagrams - Altronix Maximal11FDV Installation Manual

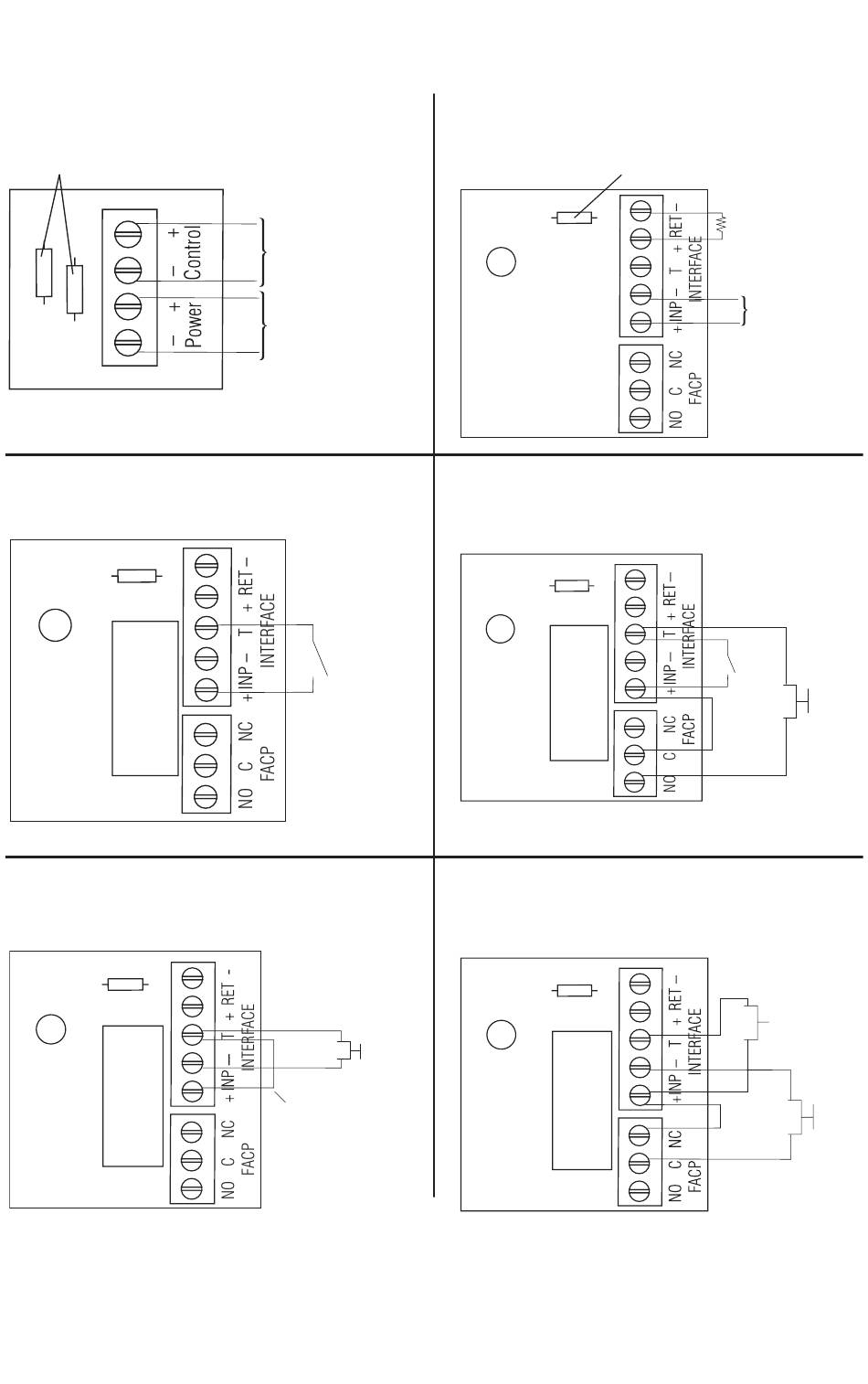

Fig. 5 Optional hook-up using two (2) isolated
power supply inputs
(Only applicable on Maximal11FDV):
CUT JUMPERS
J1 AND J2
J2
J1
Fig. 7 Normally Open: Non-Latching FACP
trigger input:
J3
TRG
Fig. 9 Normally Closed: Non-Latching FACP
trigger input:
J3
TRG
- 12 -
FACP Hook-Up Diagrams:
ISOLATED POWER INPUT
12 OR 24 VAC OR VDC
(ACM8 POWER)
ISOLATED POWER INPUT
12 OR 24 VAC OR VDC
(LOCK POWER)
N.O. TRIGGER
INPUT
N.C. DRY
TRIGGER
INPUT
JUMPER
Maximal11FDV / Maximal33FDV / Maximal55FDV / Maximal77FDV / Maximal75FDV Access Power Controllers (PTC)
Fig. 6 Polarity reversal input from FACP
signaling circuit output (polarity is
referenced in alarm condition):
CUT
JUMPER J3
J3
TRG
Fig. 8 Normally Open FACP Latching trigger
input with reset (This output has not been
evaluated by UL):
J3
TRG
Fig. 10 Normally Closed: Latching FACP trigger
input with reset (This output has not been
evaluated by UL):
J3
TRG
FACP
OUTPUT EOL
--
FROM FACP
+
OUTPUT CIRCUIT
N.O.
TRIGGER
INPUT
N.C.
RESET
SWITCH
JUMPER
N.C.
RESET
SWITCH
N.C.
TRIGGER
JUMPER
INPUT
