Tank Bottom Welding Flange (Option - SPX FLOW APV DELTA MS4 Instruction Manual

APV
APV_MS4_UK-3_102018.indd

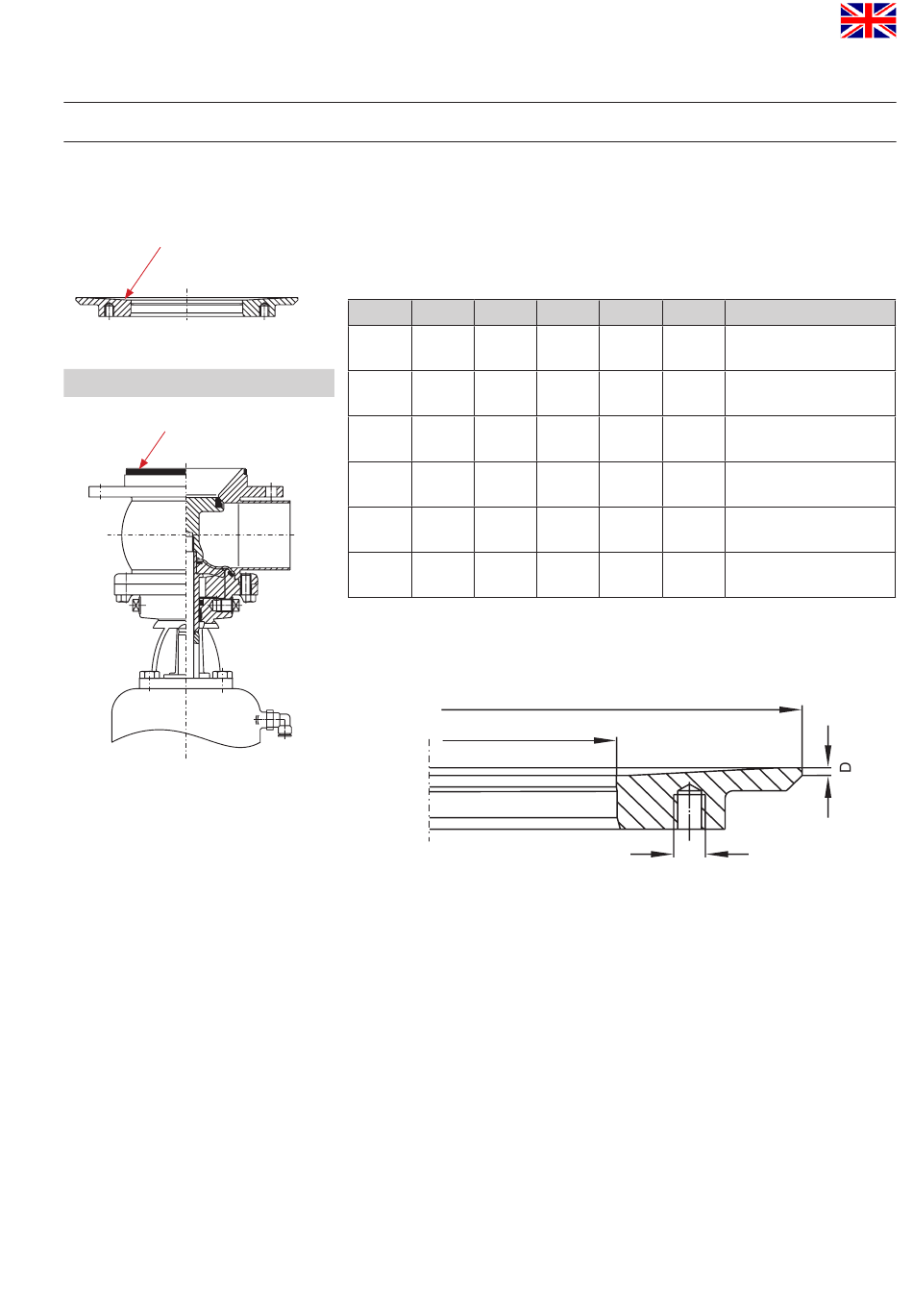

tank bottom welding flange
(option)
DELTA MST4
housing seal
Diaphragm valve with „fan support"
DELTA MS4
Instruction Manual UK- rev. 3
5. Auxiliary Equipment
5.3. Tank bottom welding flange
for the valve series MST4 and MSTP4
The tank bottom welded flange does not form part of the scope of
supply of a valve and can be ordered with the following reference
/ ID number:
DN Inch ∅ C
25 1" 148
40 1,5" 168
50 2" 188
65 2,5", 3" 228
80 – 258
100 4" 288
Dimensions in mm
Ø E
5.4. Connections
Beside the housings with weld ends, the following connections are
alternatively available:
- threaded connection according to DIN 11851
- threaded connection IDF / ISS according to ISO 2853
- threaded connection RJT according to BS 4825-5
- threaded connection SMS
- threaded connection according to DS 722
- flange connection FGN1 DIN
- flange connection FGN1 Inch
- clamp connection according to DIN 32676
- clamp connection according to ISO 2852
D ∅ E F
2 66 M8
2 78 M8
2 94 M8
2 109 M10
2 128 M10
2 159 M10
tank bottom welding flange
(option)
Ø C
F
UK
Reference number
31B 15-01-391/42
H157269
31B 15-01-441/42
H157270
31B 15-01-491/42
H157260
31B 15-01-541/42
H156931
31B 15-01-641/42
H157271
31B 15-01-691/42
H157272
