Implementing Point to Point Layer 2 services
The following figure illustrates MPLS over Inter-AS with a basic double AS topology with iBGP/LDP in
each AS.

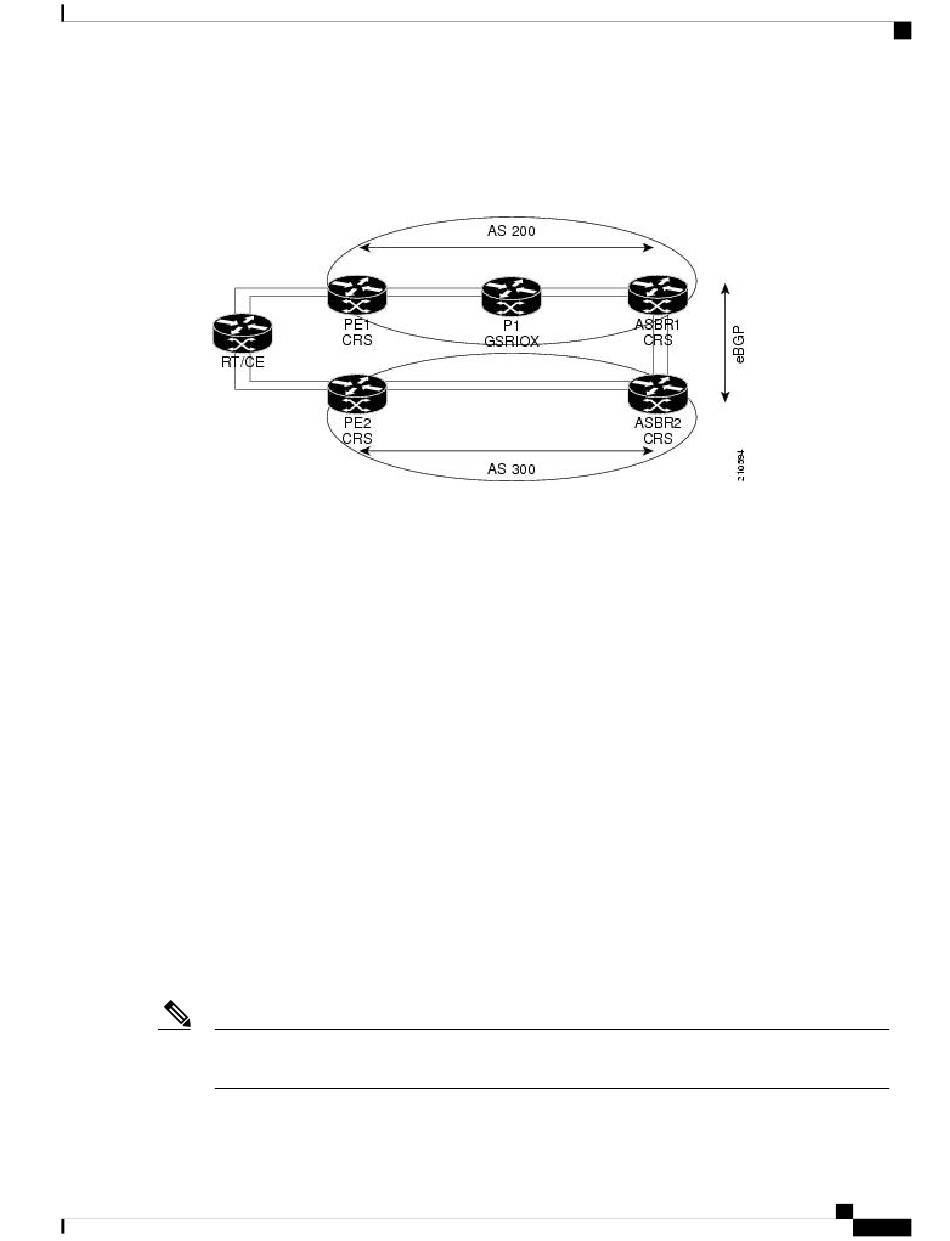

Figure 5: EoMPLS over Inter-AS: Basic Double AS Topology

QinQ Mode

QinQ is an extension of 802.1Q for specifying multiple 802.1Q tags (IEEE 802.1QinQ VLAN Tag stacking).
Layer 3 VPN service termination and L2VPN service transport are enabled over QinQ sub-interfaces.
The Cisco CRS Routers implement the Layer 2 tunneling or Layer 3 forwarding depending on the subinterface
configuration at provider edge routers. This function only supports up to two QinQ tags on the SPA and fixed
PLIM:
• Layer 2 QinQ VLANs in L2VPN attachment circuit: QinQ L2VPN attachment circuits are configured
under the Layer 2 transport subinterfaces for point-to-point EoMPLS based cross-connects using both
virtual circuit type 4 and type 5 pseudowires and point-to-point local-switching-based cross-connects
including full interworking support of QinQ with 802.1q VLANs and port mode.
• Layer 3 QinQ VLANs: Used as a Layer 3 termination point, both VLANs are removed at the ingress
provider edge and added back at the remote provider edge as the frame is forwarded.
Layer 3 services over QinQ include:
• IPv4 unicast and multicast
• IPv6 unicast and multicast
• MPLS
• Connectionless Network Service (CLNS) for use by Intermediate System-to-Intermediate System (IS-IS)
Protocol
Note The Cisco CRS-1 router does not support: bundle attachment circuits and Hot Standby Router Protocol
(HSRP) or Virtual Router Redundancy Protocol (VRRP) on QinQ subinterfaces.
