5. Auxiliary Equipment

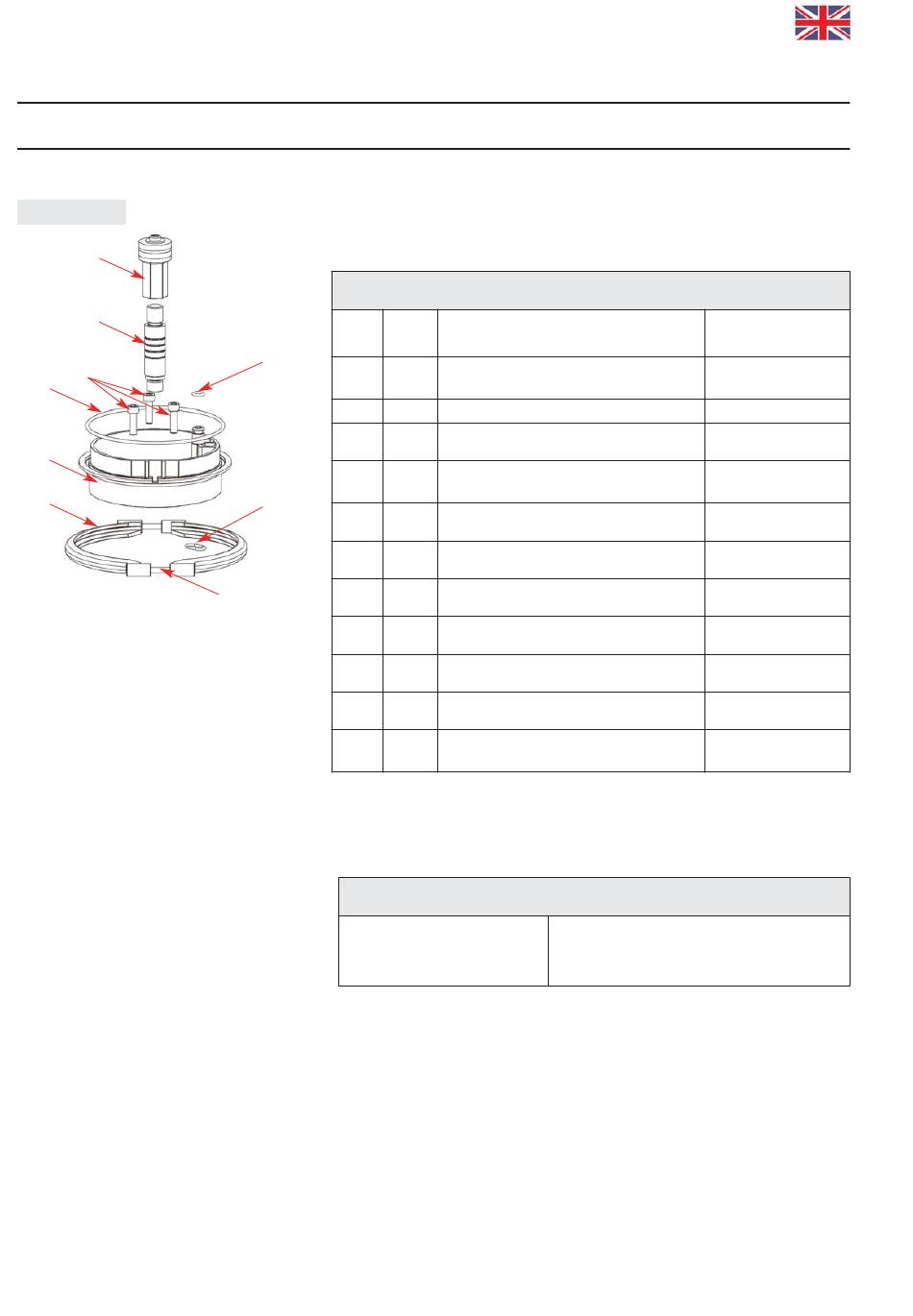

5.5.1. Adapter for control unit (fig. 5.5.1.)
CU41-T-Direct Connect, CU41-T-AS-i extended
The following adapters are required to install the control unit
on the SV1 valve:
Item Pcs.
4
-
1
2
3
3
4
9
5
6
7
8
9
5.6.

Turning actuator for control unit

- For the assembly of a control unit on the butterfly valve
a special turning actuator is required.
The standard turning actuator must be replaced.
DN 25 - 100 / K080 F/L
Inch 1" - 4" / K080 F/L
Spare parts for CU4 T-adapter
Designation
- CU4 T-adapter cpl.
1 CU4 T-adapter
3 cyl. screw ISO1207-M5x16-A2-7
o-ring 11,11-1,78 NBR
1
70shore A
1 o-ring 6-2 NBR
1 o-ring 101,27-2,62
CU4-operating cam
1
complete
1 CU4 SVS, DKR operating rod
2 CU4 clamp halves complete
cyl. screw ISO 4762 M4x40
2
inner hexagon
Turning actuator for control unit
reference No.
ID - No.
000 08-48-601/93
H 320475
000 08-46-571/93
H319875
000 65-05-054/13
H79000
000 58-06-034/83
H321897
000 58-06-059/83
H320505
000 58-06-493/83
H148389
000 08-60-900/93
H320479
000 08-60-905/93
H320480
000 08-46-569/93
H319873
000 65-05-040/13
H320360
ref.-No.: 000 - 15 - 37 - 070/17
H123937
