5.2

Connecting the MDA to the supply voltage

8020065-ZLP4/2017-08-10|SICK
Subject to change without notice
The Master Data Analyzer is voltage and frequency dependent and must therefore be
supplied with the correct mains connection for the device. This connection supplies
voltage to the controller and all of the components connected to it.
The connecting cables included in the delivery consist of a power supply unit and two
connecting cables. The power supply unit and cables are packaged separately and
delivered loose in the package.
No. Description
1 Power supply unit
2 Cable with M12 plug connector for connection to the MDA.
3 Cable with male connector for connection to the power network.
The delivery includes adapters for all types of male connectors used around the world.
Tab. 15: Power supply unit with connecting cables
HAZARD
Check voltage information before connection
Before connecting the device to the energy grid, check whether the required voltage
information as per the technical data match the mains voltage at the installation site.
If this is not the case, you must not establish the connection!
▸
Only connect the device using the supplied power cable and to a grounded power
socket with protective contact.
Creating connections

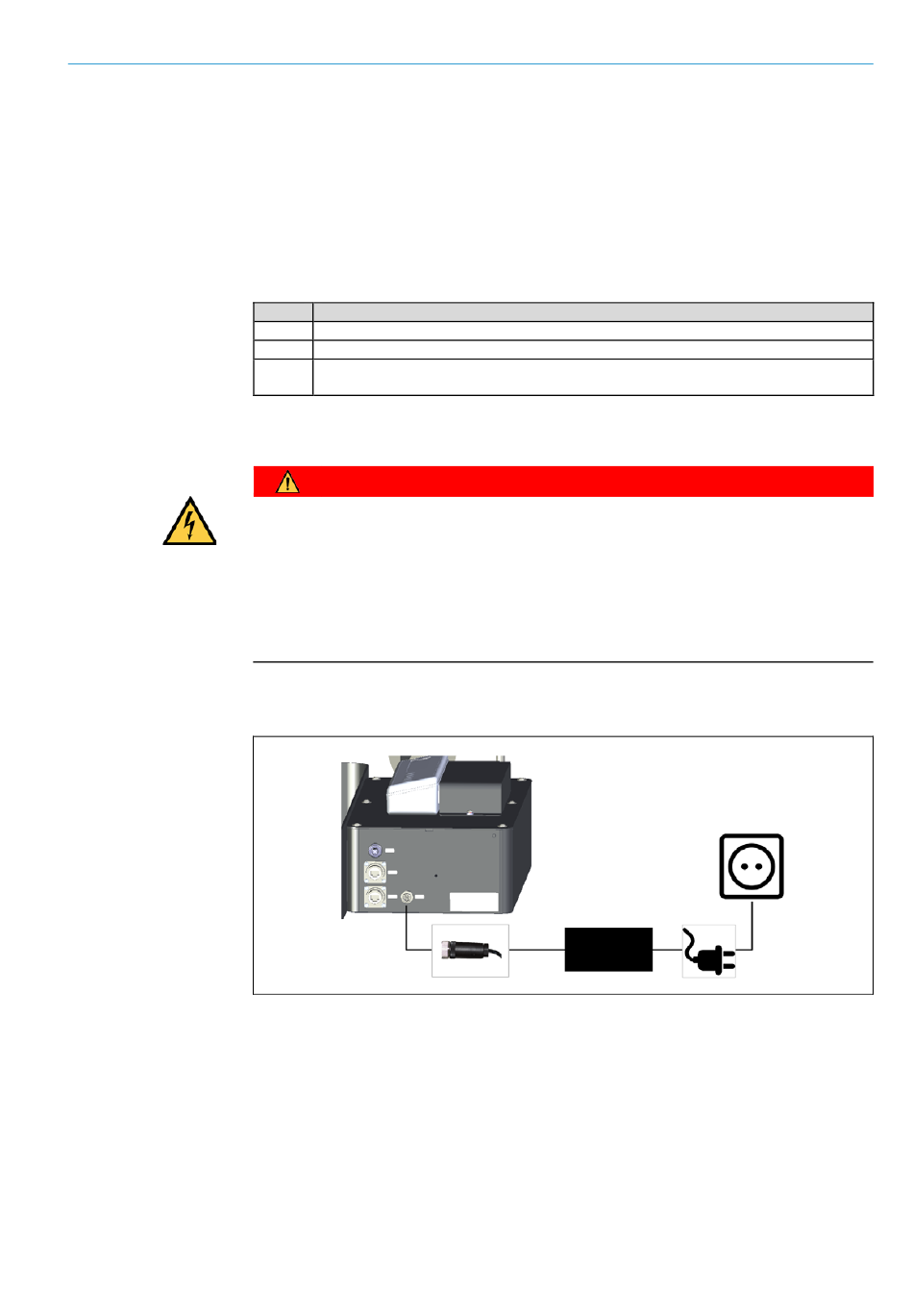

Fig. 32: Connecting the MDA to the voltage supply

1. Connect the M12 female connector for the cable feeding out of the power supply unit
to the 24 V DC male connector on the MDA.
2. Tightly screw in the plug connector.
3. Use the cable with the male connector to establish a connection to the local power
network.
