5.5

Connecting the WLAN adapter

8020065-ZLP4/2017-08-10|SICK
Subject to change without notice
The WLAN module that is available as an accessory is connected to the supply voltage
and MDA's data interface.
Both connections are established using the connecting cables included with the delivery.

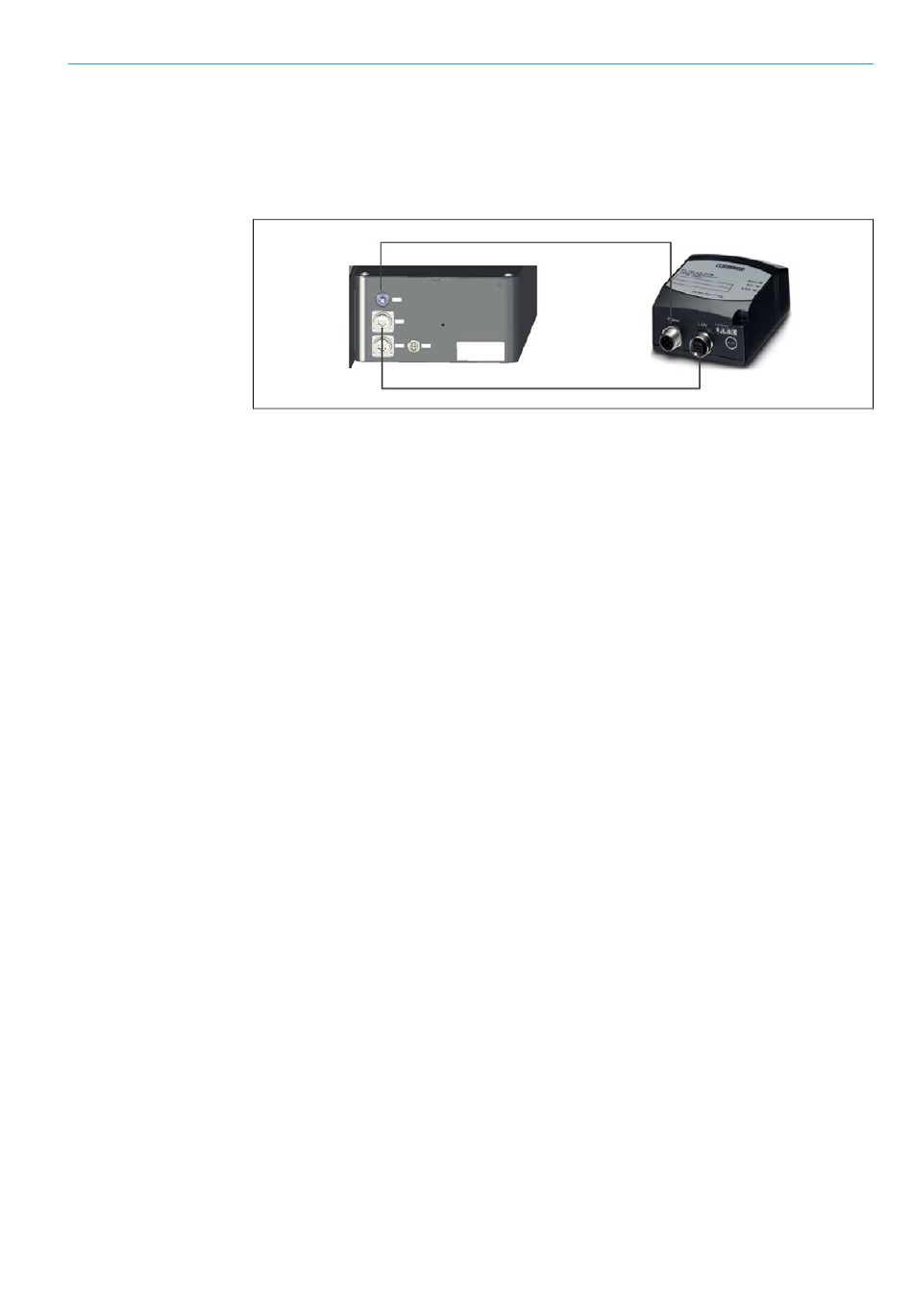

Fig. 34: Connecting the WLAN adapter

Connecting the supply voltage
The connecting cable for the supply voltage has an M12 plug connector on both sides.
1. Connect the M12 female connector on the WLAN adapter to the Power male
connector.
2. Connect the other end of the cable to the WLAN Power M12 female connector on the
MDA.
3. Connect the two plug connectors and make sure the connection is secure.
Connecting the Ethernet interface
The cable has an M12 male plug connector on one side for the connection to the WLAN
module and an RJ45 male connector on the other side for the connection to the MDA.
1. Connect the M12 male connector on the WLAN adapter to the LAN male connector.
2. Connect the plug connector and make sure the connection is secure.
3. Plug the RJ45 male connector into the Data female connector on the MDA.
