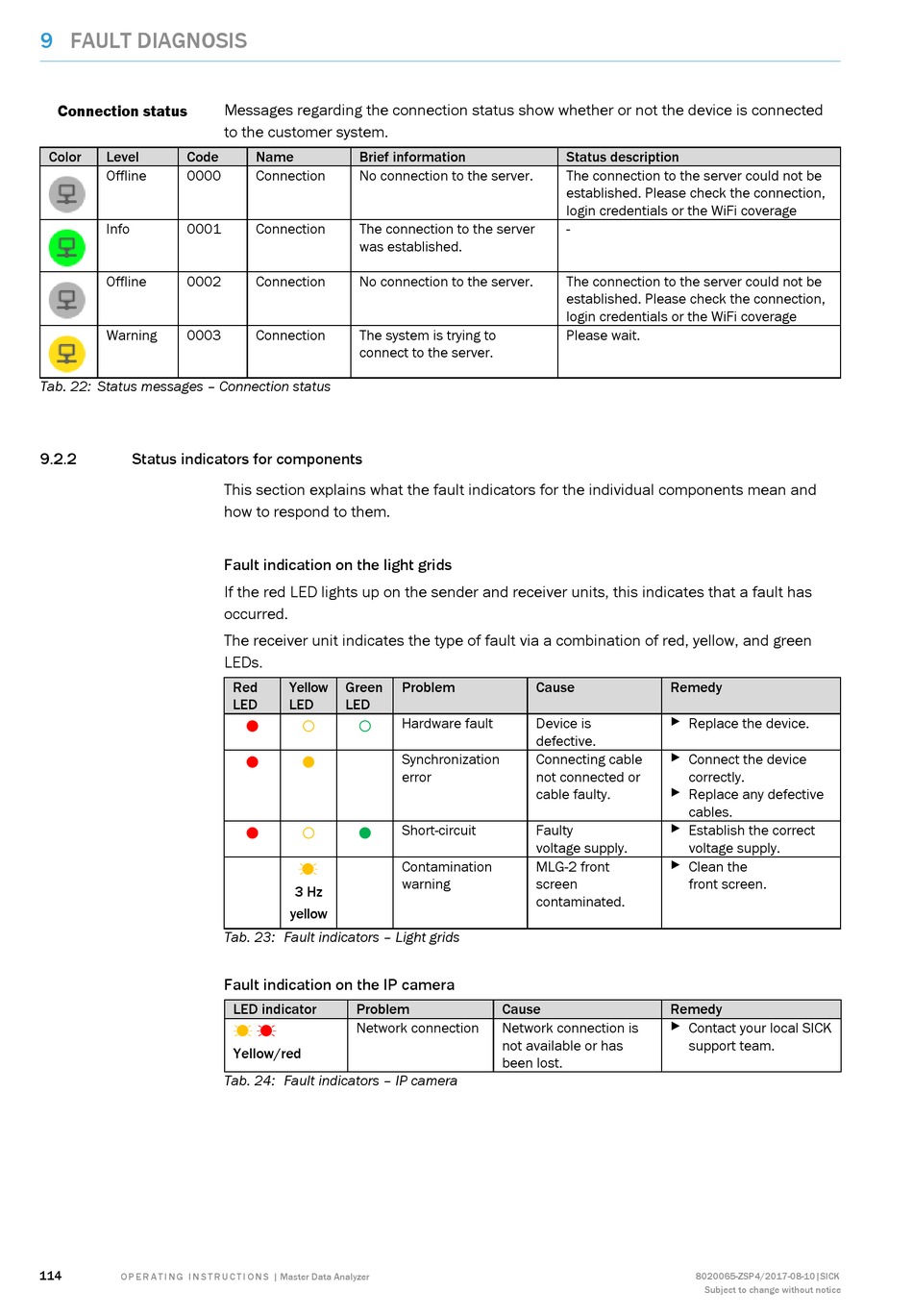

9 FAULT DIAGNOSIS
Connection status
Color Level Code
Offline 0000
Info 0001
Offline 0002
Warning 0003
Tab. 22: Status messages – Connection status
9.2.2

Status indicators for components

114
O P E R A T I N G I N S T R U C T I O N S | Master Data Analyzer
Messages regarding the connection status show whether or not the device is connected
to the customer system.
Name Brief information
Connection No connection to the server.
Connection The connection to the server
was established.
Connection No connection to the server.
Connection The system is trying to
connect to the server.
This section explains what the fault indicators for the individual components mean and
how to respond to them.
Fault indication on the light grids
If the red LED lights up on the sender and receiver units, this indicates that a fault has
occurred.
The receiver unit indicates the type of fault via a combination of red, yellow, and green
LEDs.
Red Yellow Green
LED LED LED
  
 
  

3 Hz
yellow
Tab. 23: Fault indicators – Light grids
Fault indication on the IP camera
LED indicator Problem
Network connection
 
Yellow/red
Tab. 24: Fault indicators – IP camera
Status description
The connection to the server could not be
established. Please check the connection,
login credentials or the WiFi coverage
-
The connection to the server could not be
established. Please check the connection,
login credentials or the WiFi coverage
Please wait.
Problem Cause
Hardware fault Device is
defective.
Synchronization Connecting cable
error not connected or
cable faulty.
Short-circuit Faulty
voltage supply.
Contamination MLG-2 front
warning screen
contaminated.
Cause
Network connection is
not available or has
been lost.
Remedy
▸
Replace the device.
▸
Connect the device
correctly.
▸
Replace any defective
cables.
▸
Establish the correct
voltage supply.
▸
Clean the
front screen.
Remedy
▸
Contact your local SICK
support team.
