3 SYSTEM DESCRIPTION
3.3

The system's operating principle

26
O P E R A T I N G I N S T R U C T I O N S | Master Data Analyzer
The Master Data Analyzer is designed for stationary and mobile use, depending on the
system variant.
In the stationary variant, the Master Data Analyzer is placed at a fixed location and
connected (e.g., at the receiving work station). With the mobile variant, data can be
recorded at any chosen location (e.g., right on the high-bay racking). A WLAN adapter
must be connected in this case.
The measurement process depends on the operating mode in question.

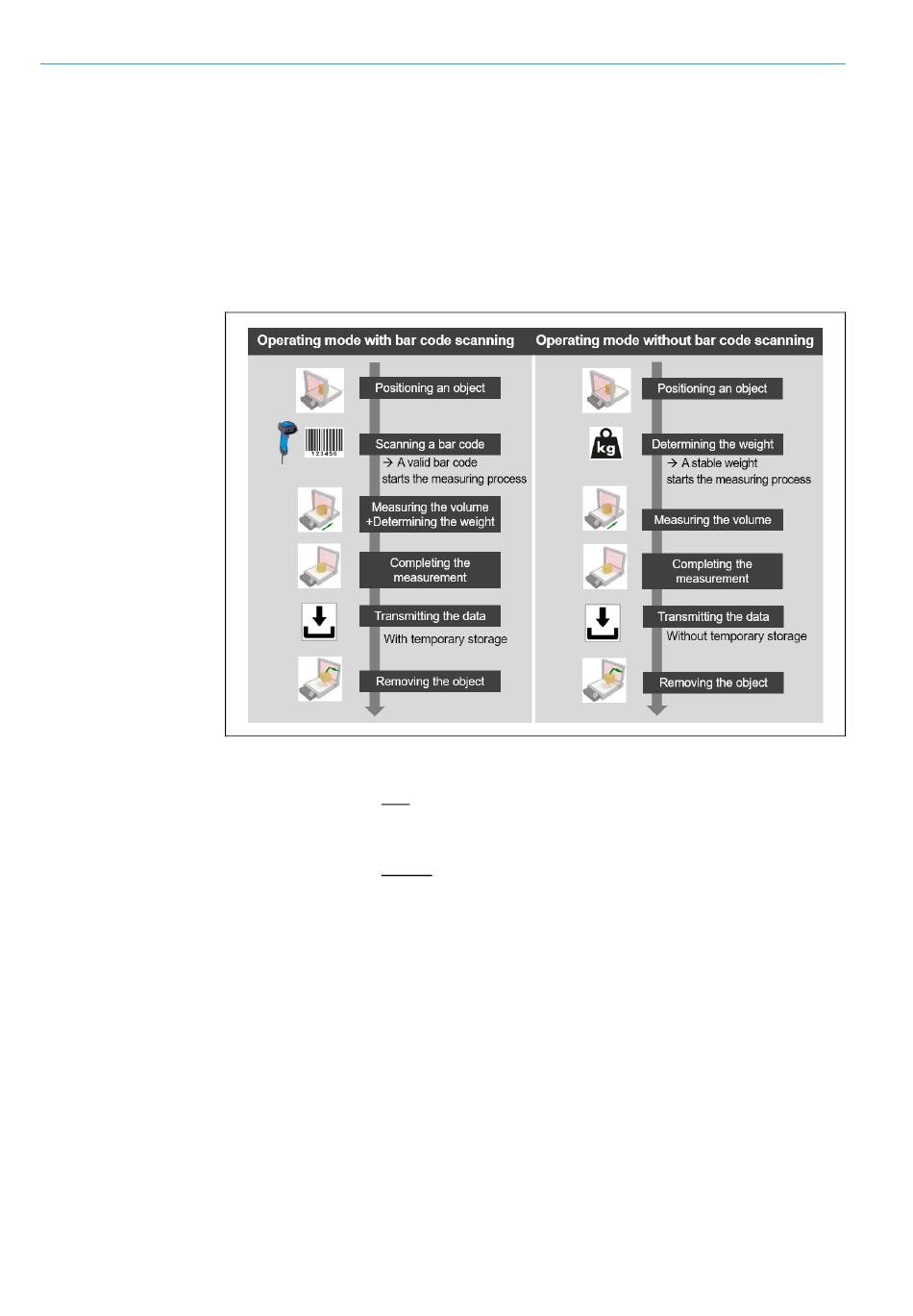

Fig. 14: Measurement process for each operating mode

In the operating mode with bar code scanning, the measuring process starts once the
object has been placed on the measurement field and the bar code has been scanned.
The volume and weight are then measured in one procedure.
In the operating mode without bar code scanning, the measuring process starts with the
weight measurement. The volume cannot be measured until a stable weight value is
present.
