Edid Learning - Binary B-200-1CAT-HDIR Owner's Manual

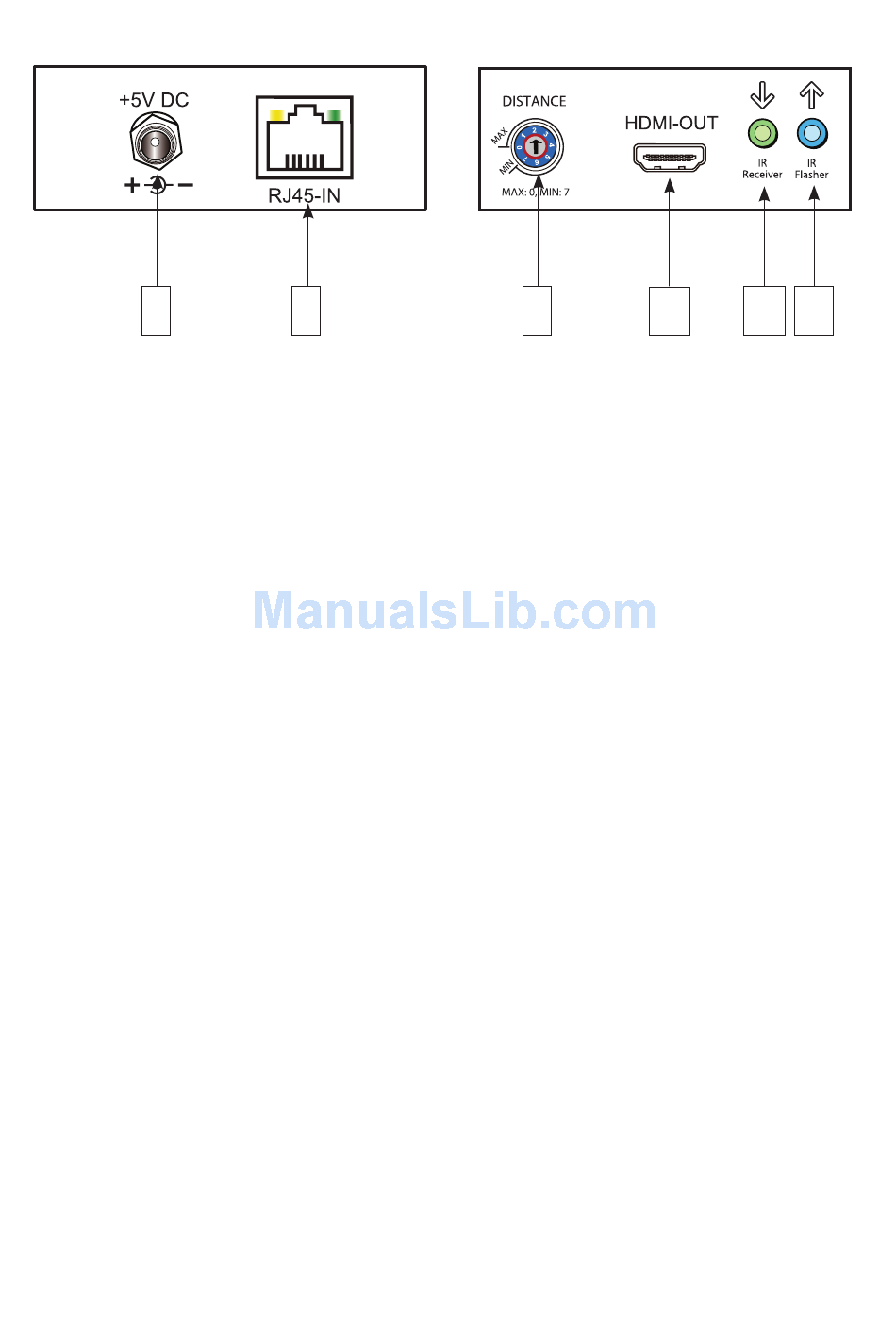

INPUT PANEL
7
RECEIVER
7. Screw-locking power jack: Connect to the provided 5V DC power supply
8. RJ45: Plug in a Cat5e/6 cable that needs to be linked to the transmitting unit
9. Rotary control: Adjust the 8-level equalization control to the received HDMI
10. HDMI OUT: Connect to an HDMI display with a HDMI male-to-male cable
(1 meter or shorter HDMI cable is recommended)
11. IR Receiver: Infrared 3.5mm jack for IR receiver
12. IR Flasher: Infrared 3.5mm jack for IR flasher

EDID LEARNING

1. Connect the HDMI display to "HDMI IN" on the Transmitter with a HDMI cable.
2. Set "MODE" on the transmitting unit to "7".
3. Power on the Transmitter by connecting the 5V Power Supply.
4. The LED on the RJ45 of the transmitter will flash On and Off once to learn the EDID.
Keep the mode dial on "7" at all times to use the learned EDID.
5. Unplug the HDMI cable from the display and follow the installation instructions
below to install the B-200-1CAT-HDIR.
8
signals. The HDMI signal level varies from 0 (strongest) to 7
(weakest) for respective transmission length from longest
possible range to short distance. Adjust the signal level
from 7 to 0 and stop turning the rotary switch whenever
the audio/video is playing normally. Inappropriate signal
level setting may cause an overpowering issue that would
shorten the product life significantly.
OUTPUT PANEL
9 10 11 12
