Edid Learning - Binary B-400-1COAX-HDIR Owner's Manual

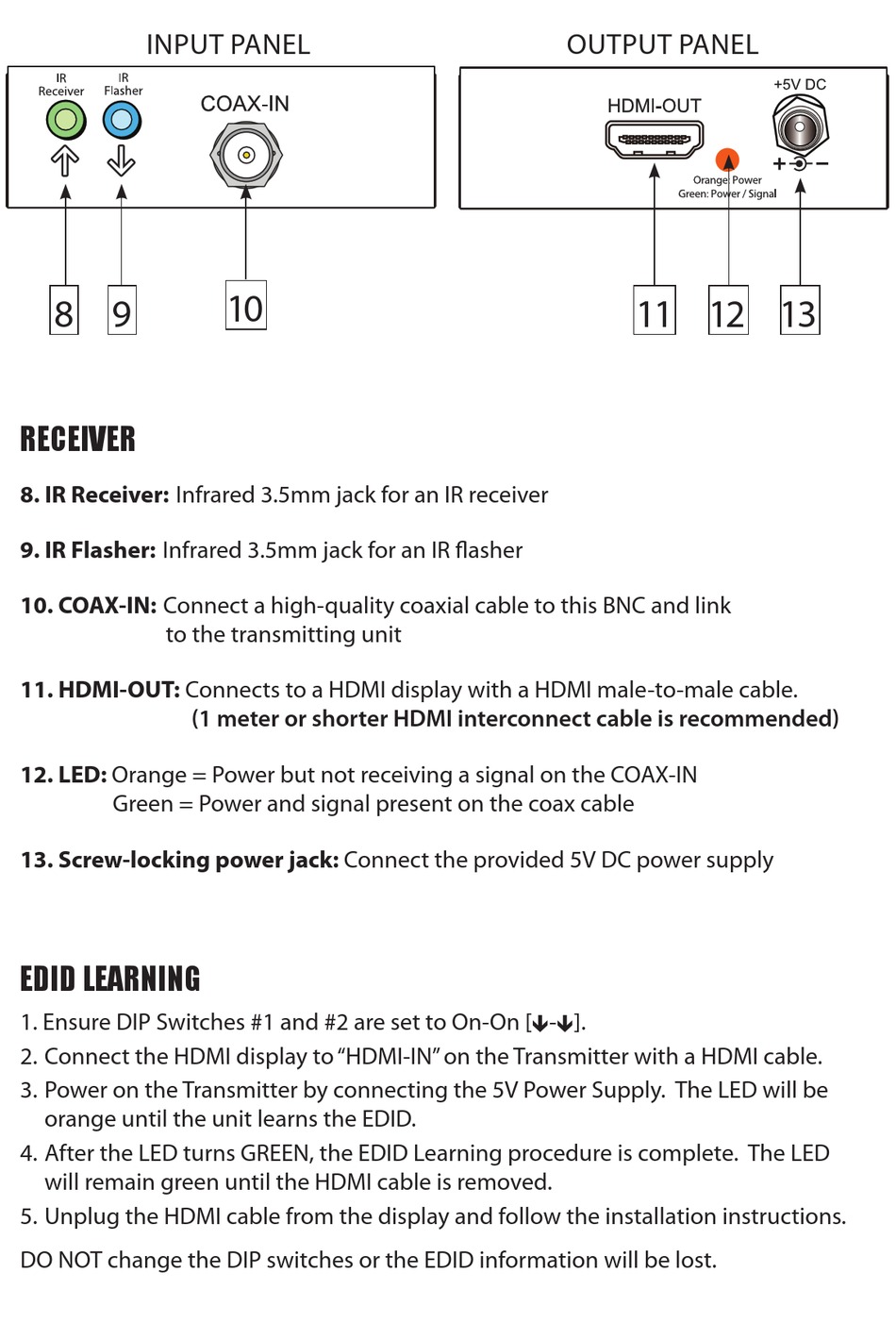

INPUT PANEL
8 9
RECEIVER
8. IR Receiver: Infrared 3.5mm jack for an IR receiver
9. IR Flasher: Infrared 3.5mm jack for an IR flasher
10. COAX-IN: Connect a high-quality coaxial cable to this BNC and link
to the transmitting unit
11. HDMI-OUT: Connects to a HDMI display with a HDMI male-to-male cable.
12. LED: Orange = Power but not receiving a signal on the COAX-IN
Green = Power and signal present on the coax cable
13. Screw-locking power jack: Connect the provided 5V DC power supply

EDID LEARNING

1. Ensure DIP Switches #1 and #2 are set to On-On [
2. Connect the HDMI display to "HDMI-IN" on the Transmitter with a HDMI cable.
3. Power on the Transmitter by connecting the 5V Power Supply. The LED will be
orange until the unit learns the EDID.
4. After the LED turns GREEN, the EDID Learning procedure is complete. The LED
will remain green until the HDMI cable is removed.
5. Unplug the HDMI cable from the display and follow the installation instructions.
DO NOT change the DIP switches or the EDID information will be lost.
10
(1 meter or shorter HDMI interconnect cable is recommended)
OUTPUT PANEL
11 12 13
- ].
 
