Chapter 6. FRONT PANEL
OPERATION
6.1
Description

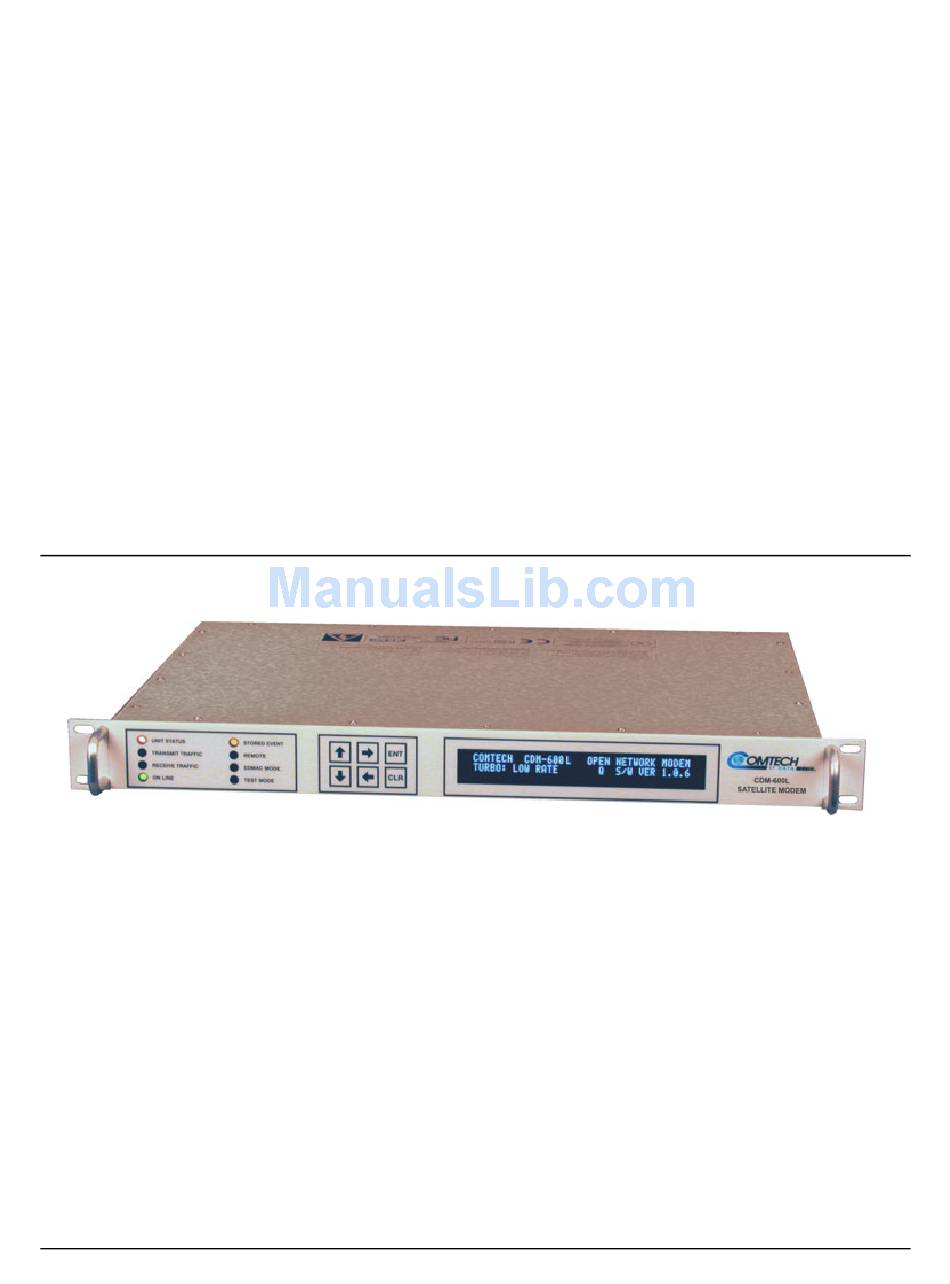

Figure 6-1. Front Panel View
The user can fully control and monitor the operation of the CDM-600L from the front
panel, using the keypad and display. Nested menus are used, which display all available
options, and prompt the user to carry out a required action.
The display has two lines each of 40 characters. On most menu screens, the user will
observe a flashing solid block cursor, which blinks at a once-per-second rate. This
indicates the currently selected item, digit, or field. Where this solid block cursor would
obscure the item being edited (for example, a numeric field) the cursor will automatically
change to an underline cursor.
