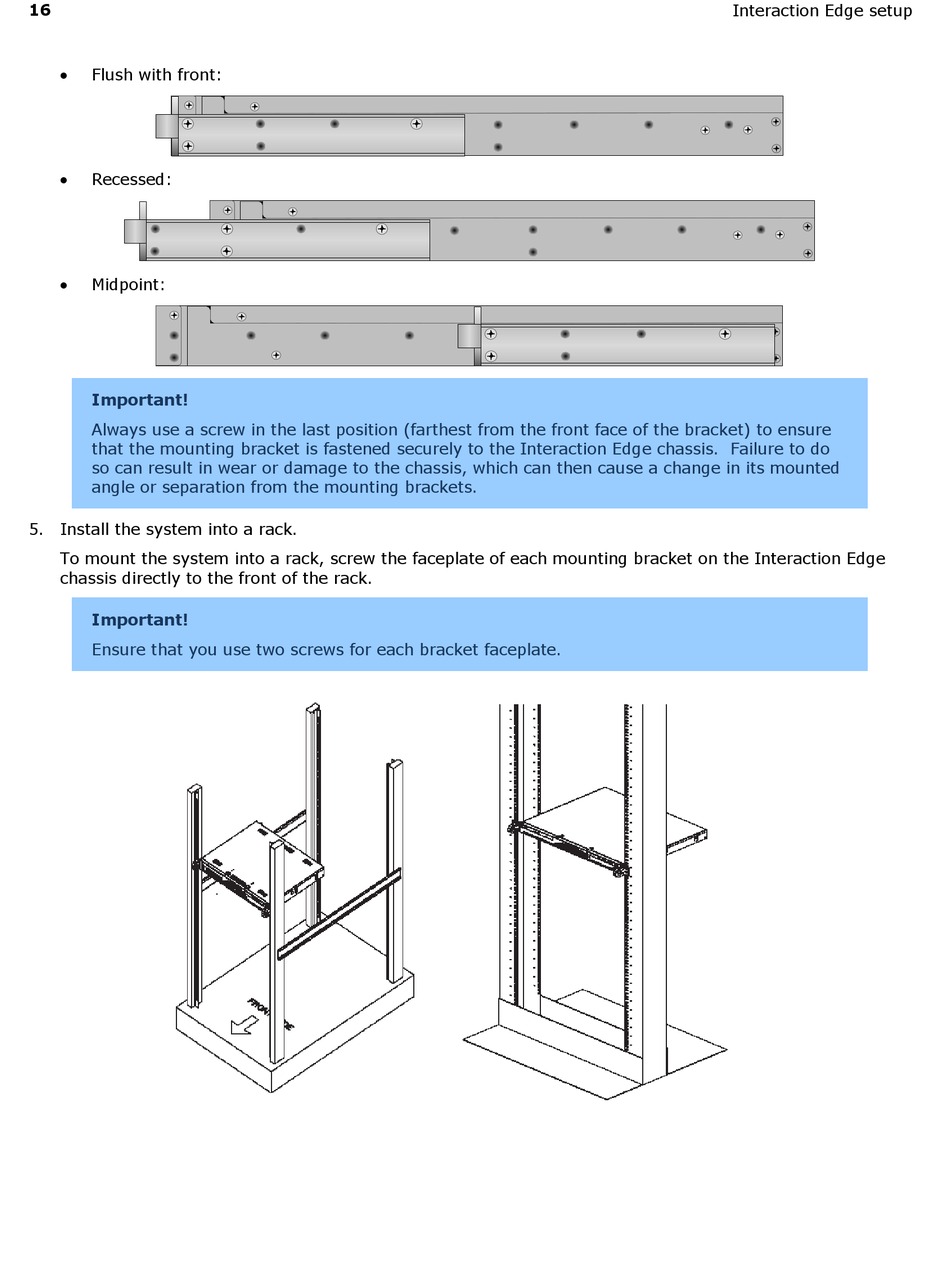

Flush with front:

Recessed:

Midpoint:
Important!
Always use a screw in the last position (farthest from the front face of the bracket) to ensure
that the mounting bracket is fastened securely to the Interaction Edge chassis. Failure to do
so can result in wear or damage to the chassis, which can then cause a change in its mounted
angle or separation from the mounting brackets.
5. Install the system into a rack.
To mount the system into a rack, screw the faceplate of each mounting bracket on the Interaction Edge
chassis directly to the front of the rack.
Important!
Ensure that you use two screws for each bracket faceplate.
