12

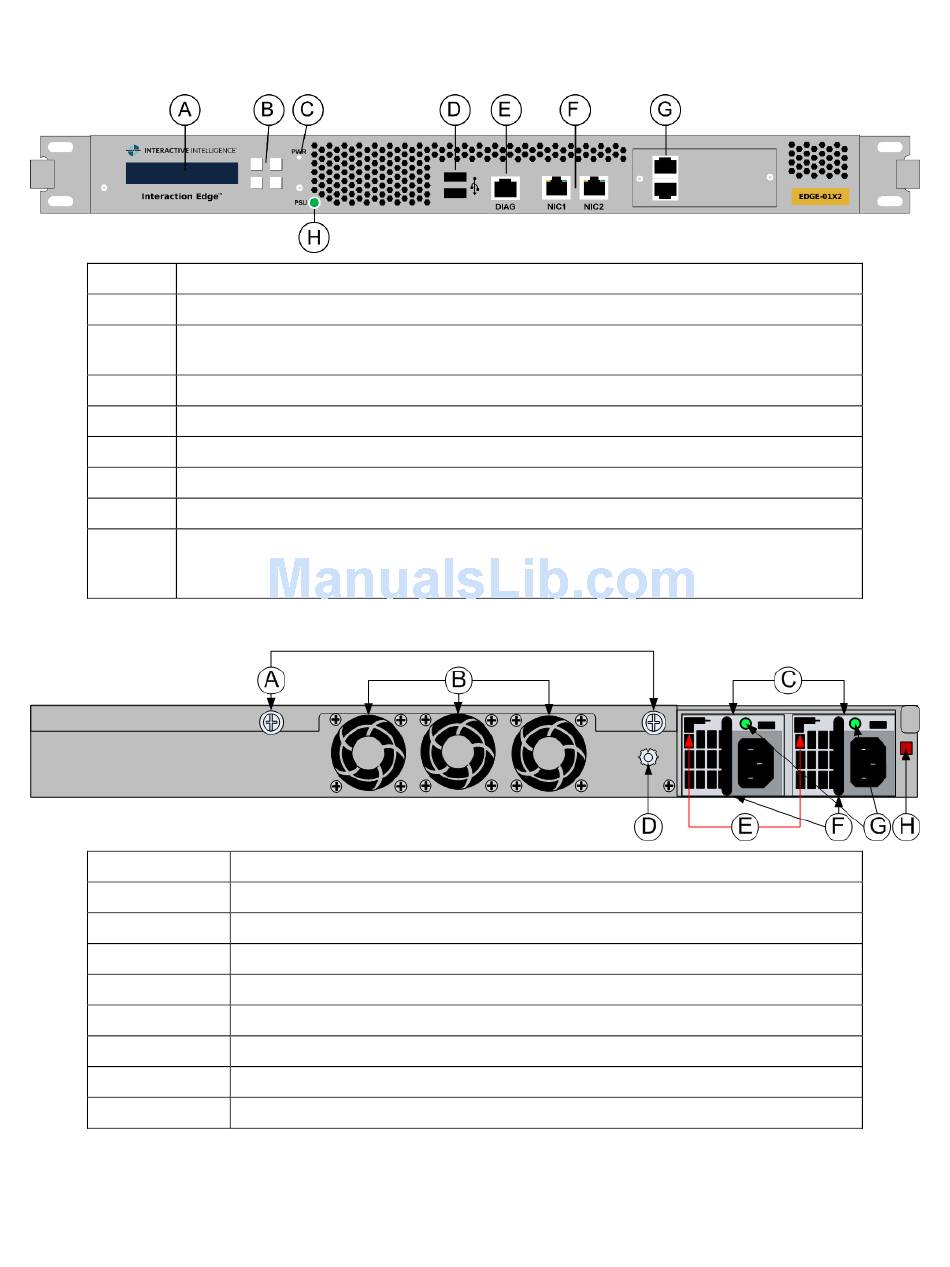

Interaction Edge front side
Item
A
LCD panel– displays status and diagnostic messages.
LCD panel buttons - Use these buttons to navigate menus, check system status,
B
and edit field values
C
Soft power switch
D
USB ports
E
Diagnostic Port for IPMI
F
Network Interface Card (NIC) ports
G
Time-Division Multiplexer (TDM) ports @ 120 Ω
Power Supply Unit (PSU) status indicator – This indicator is off when both PSUs
H
are operating normally. If one of the PSUs fails or is not installed, this indicator
displays a flashing green light.
Interaction Edge back side
Item
A
B
C
D
E
F
G
H
Top cover screws
Fan exhaust openings
(2) 100 - 240v~1A AC power supply
Grounding connector
Power supply "hot swap" latches
Power supply handles
Power supply status indicators
Power supply alarm silence button
Description
Description
Overview of Interaction Edge
