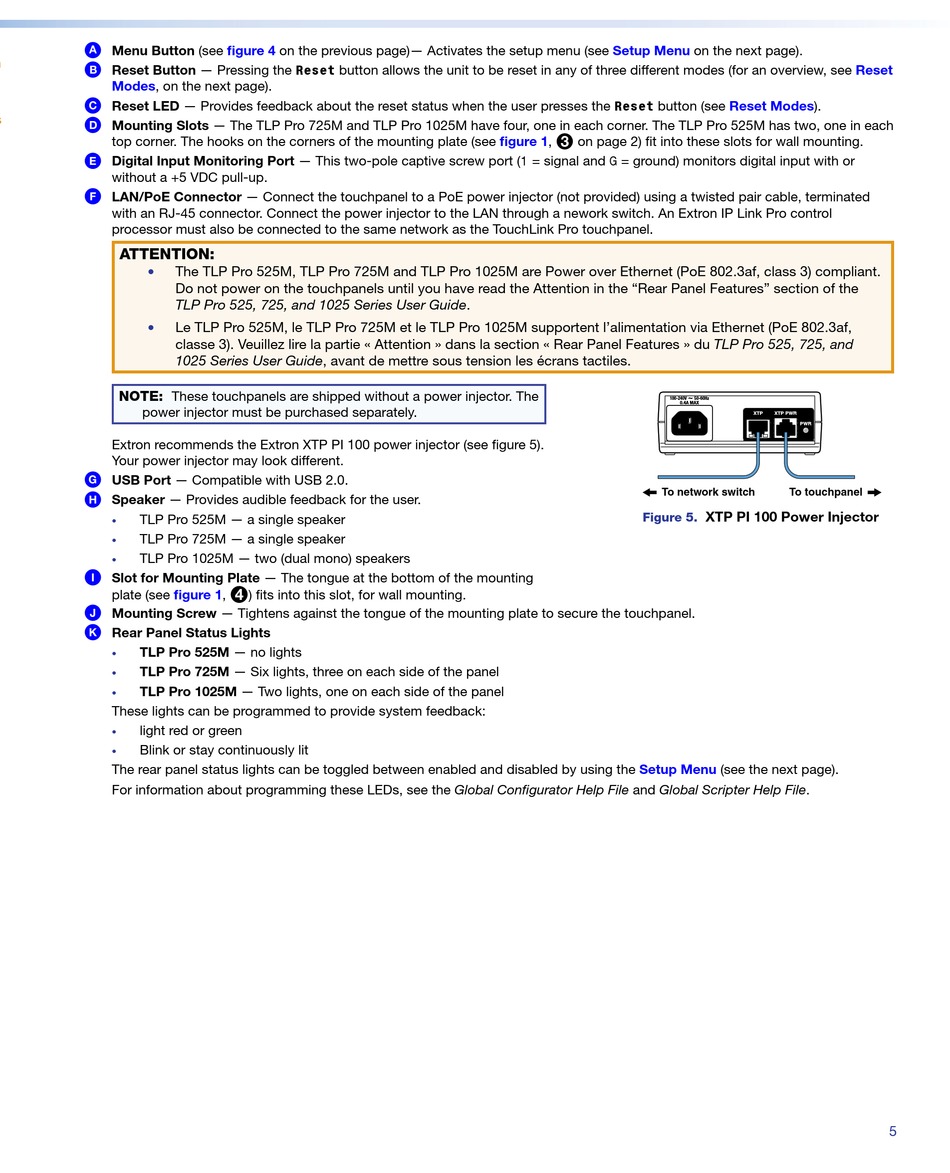

Extron electronics TLP Pro 525M seriesl Setup Manual page 5

n
A Menu Button (see
n
B Reset Button — Pressing the Reset button allows the unit to be reset in any of three different modes (for an overview, see
Modes, on the next page).
C Reset LED — Provides feedback about the reset status when the user presses the Reset button (see
s
D Mounting Slots — The TLP Pro 725M and TLP Pro 1025M have four, one in each corner. The TLP Pro 525M has two, one in each
top corner. The hooks on the corners of the mounting plate (see
t
E Digital Input Monitoring Port — This two-pole captive screw port ( 1 = signal and G = ground) monitors digital input with or
without a +5 VDC pull-up.
F LAN/PoE Connector — Connect the touchpanel to a PoE power injector (not provided) using a twisted pair cable, terminated
with an RJ-45 connector. Connect the power injector to the LAN through a nework switch. An Extron IP Link Pro control
processor must also be connected to the same network as the TouchLink Pro touchpanel.
ATTENTION:
•
•
NOTE: These touchpanels are shipped without a power injector. The
power injector must be purchased separately.
Extron recommends the Extron XTP PI 100 power injector (see figure 5).
Your power injector may look different.
G USB Port — Compatible with USB 2.0.
H Speaker — Provides audible feedback for the user.
TLP Pro 525M — a single speaker
•
TLP Pro 725M — a single speaker
•
TLP Pro 1025M — two (dual mono) speakers
•
I Slot for Mounting Plate — The tongue at the bottom of the mounting
plate (see
J Mounting Screw — Tightens against the tongue of the mounting plate to secure the touchpanel.
K Rear Panel Status Lights
TLP Pro 525M — no lights
•
TLP Pro 725M — Six lights, three on each side of the panel
•
TLP Pro 1025M — Two lights, one on each side of the panel
•
These lights can be programmed to provide system feedback:
light red or green
•
Blink or stay continuously lit
•
The rear panel status lights can be toggled between enabled and disabled by using the
For information about programming these LEDs, see the Global Configurator Help File and Global Scripter Help File.
figure 4 on the previous page)— Activates the setup menu (see
The TLP Pro 525M, TLP Pro 725M and TLP Pro 1025M are Power over Ethernet (PoE 802.3af, class 3) compliant.
Do not power on the touchpanels until you have read the Attention in the "Rear Panel Features" section of the
TLP Pro 525, 725, and 1025 Series User Guide.
Le TLP Pro 525M, le TLP Pro 725M et le TLP Pro 1025M supportent l'alimentation via Ethernet (PoE 802.3af,
classe 3). Veuillez lire la partie « Attention » dans la section « Rear Panel Features » du TLP Pro 525, 725, and
1025 Series User Guide, avant de mettre sous tension les écrans tactiles.
figure 1, 4
) fits into this slot, for wall mounting.
Setup Menu
figure 1, 3 on page 2) fit into these slots for wall mounting.
100-240V
To network switch
Figure 5.
Setup Menu
Product Category
on the next page).
Reset
Reset Modes).
~
50-60Hz
0.4A MAX
XTP XTP PWR
PWR
To touchpanel
XTP PI 100 Power Injector
(see the next page).
5
