AX12270 PC/104 Module Series User's Manual

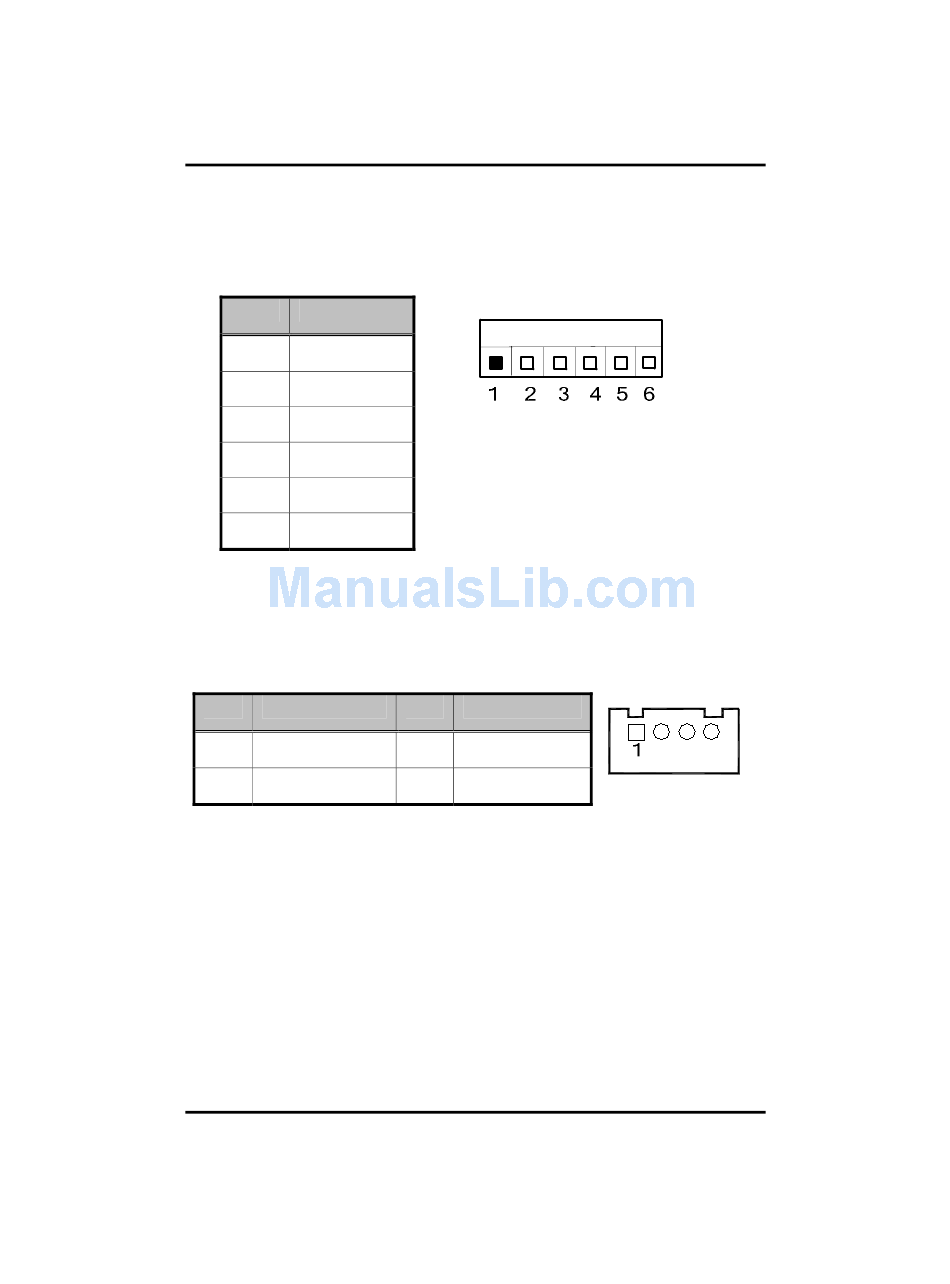

2.4.15 Power Connector 1: CN18
Use this connector to connect +12V & +5V power supply.
PIN Signal
1 +12V
2 GND
3 GND
4 GND
5 +5V
6 +5V
2.4.16 Power Connector 2: CN19
Connector CN19 is a +5V Standby & PS On Connector.
PIN Signal
1 +5V Standby
3 GND
22
PIN Signal
2 GND
4 PS_ON
Jumpers and Connectors
