2.3

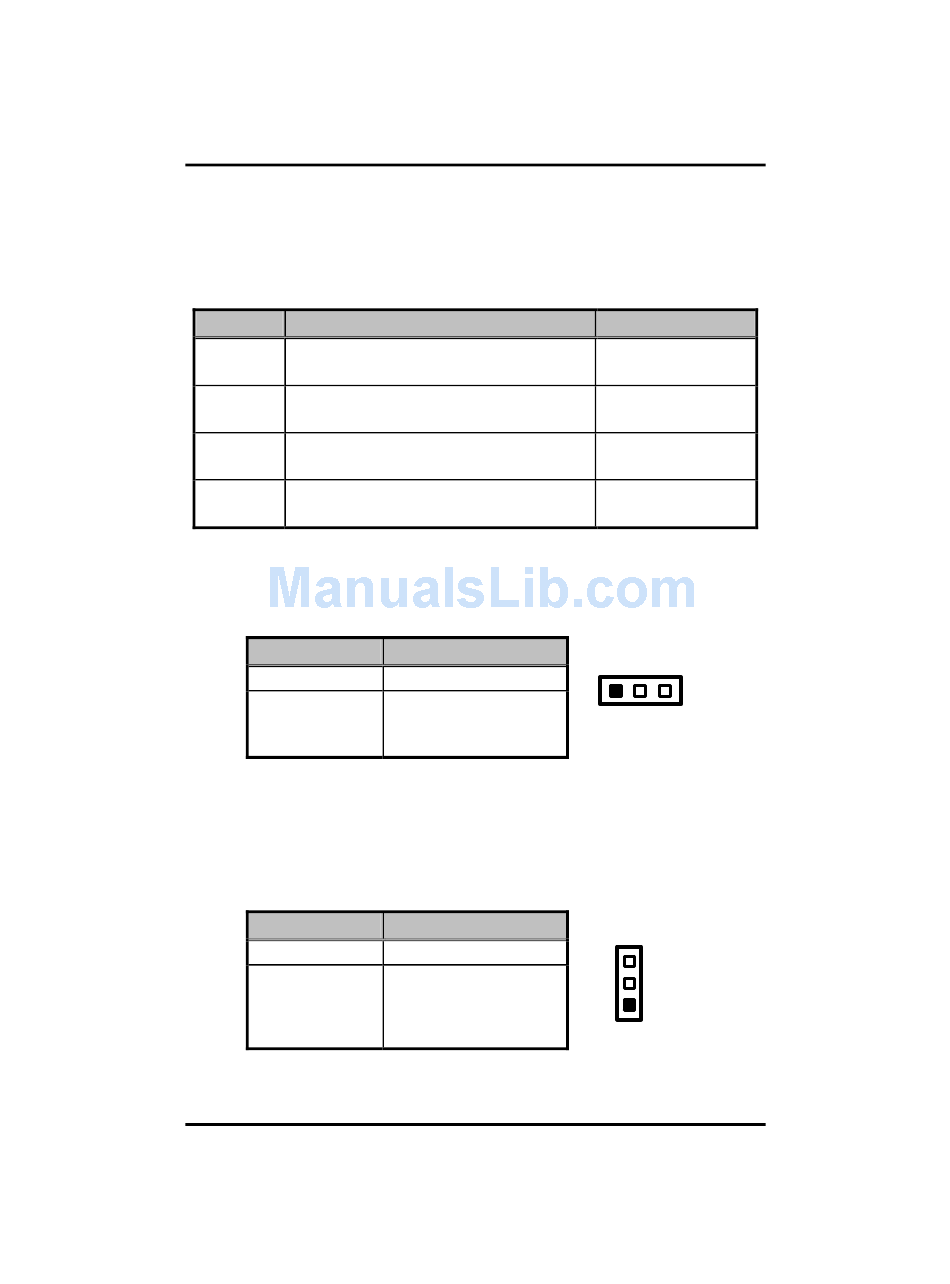

Jumper Settings

Proper jumer settings configure the AX12270 to meet your application
purpose. We are herewith listing a summary table of all jumpers and
default settings for onboard devices, respectively.
Jumper
JP1

LVDS Voltage Selection

Default: 3.3V
JP2 Normal Operation/Clear CMOS setting
Default: Normal Operation
CN10 COM1 Mode Select
Default: RS-232
CN11 COM1 Mode Select
Default: RS-232
2.3.1 LVDS Voltage Selection: JP1
This jumper is to select the voltage for LVDS interface.
Options
3.3V
5V
2.3.2 CMOS Clear Jumper: JP2
You may need to use this jumper to clear the CMOS memory if
incorrect settings in the Setup Utility.
Options
Normal
Clear CMOS
Jumpers and Connectors
AX12270 PC/104 Module Series User's Manual
Description
Settings
Short 1-2 (default)
Short 2-3
Settings
Short 1-2 (default)
Short 2-3
Jumper Setting
Short 1-2
Short 1-2
Short 7-6
Short 1-2, 4-5,
7-8, 10-11
JP1
1 2 3
JP2
3
2
1
