AX12270 PC/104 Module Series User's Manual

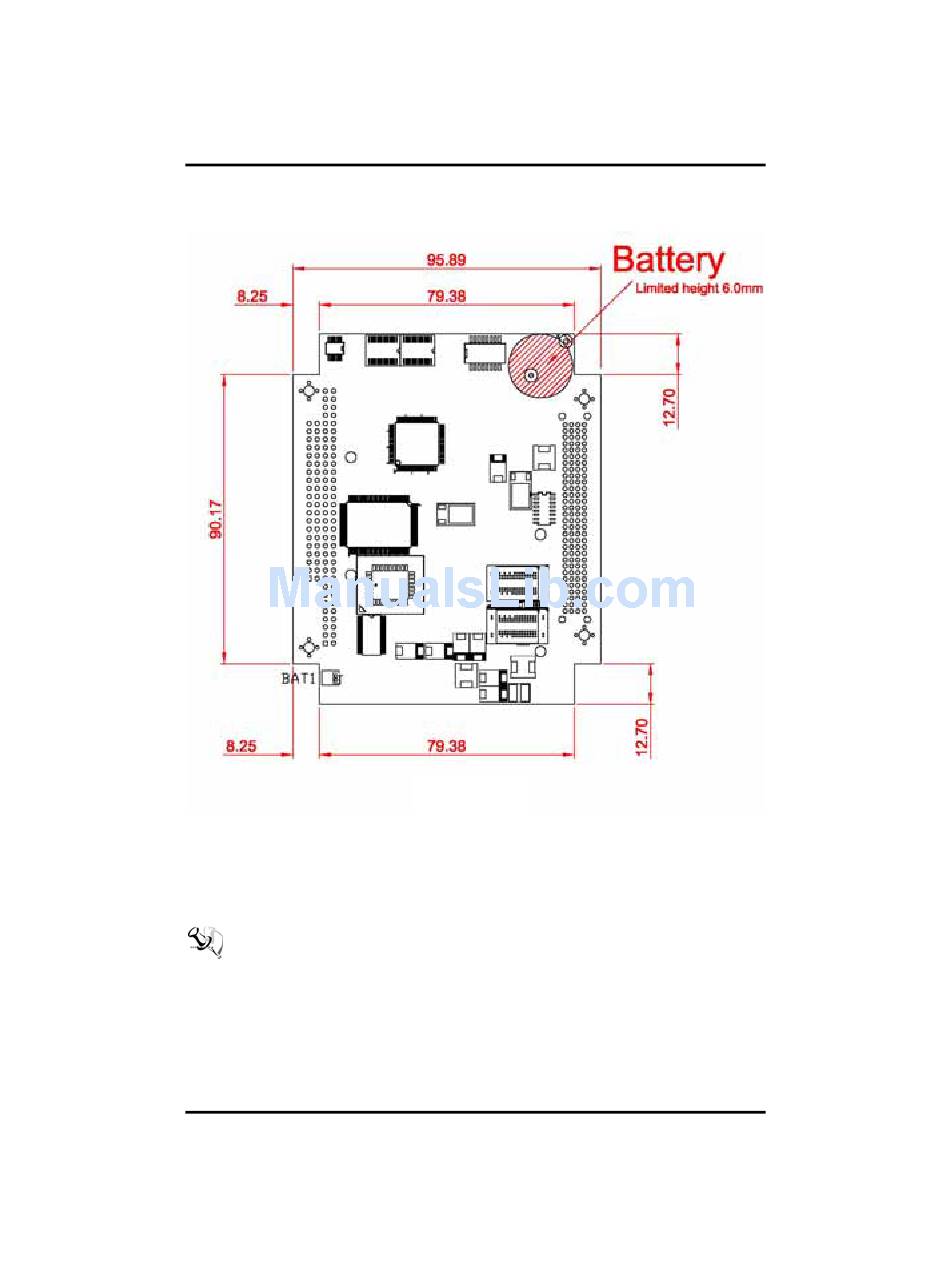

Solder Side
Note: The Limited Height of Solder side: battery area is 6 mm,
and the other 4.83 mm.
6
Jumpers and Connectors
