AX12270 PC/104 Module Series User's Manual

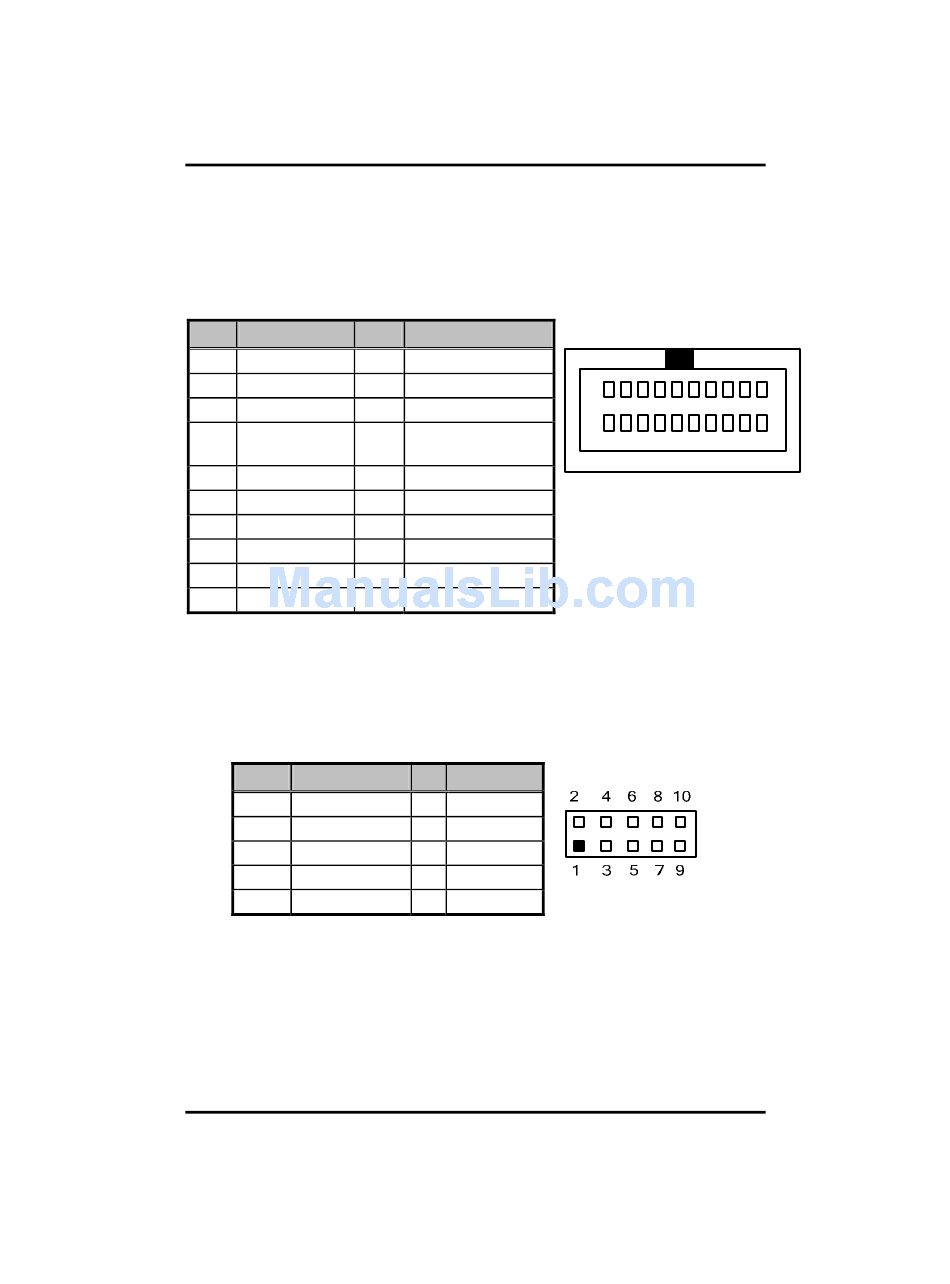

2.4.4 VGA & PS/2 Connector: CN6
Conncector CN6 is for PS/2 Mouse/Keyboard and CRT VGA display
connection.
Pin Signal Pin
1 VCC
2 GND
3 Keyboard Data
4 Keyboard
Clock
5 N.C.
6 Mouse Data
7 Mouse Clock
8 GND
9 Red
10 GND
2.4.5 Audio Connector: CN8
CN8 is a 10-pin connector to support the audio interface.
Pin Signal
1 MIC-IN
3 Line In L
5 Line In R
7 Audio Out L
9 Audio Out R
14
Signal
11 Green
12 GND
13 Blue
14 GND
15 VCC
16 DDC Data
17 DDC Clock
18 GND
19 Horizontal Sync
20 Vertical Sync
Pin Signal
2 GND
4 GND
6 GND
8 GND
10 GND
19
20
Jumpers and Connectors
1
2
