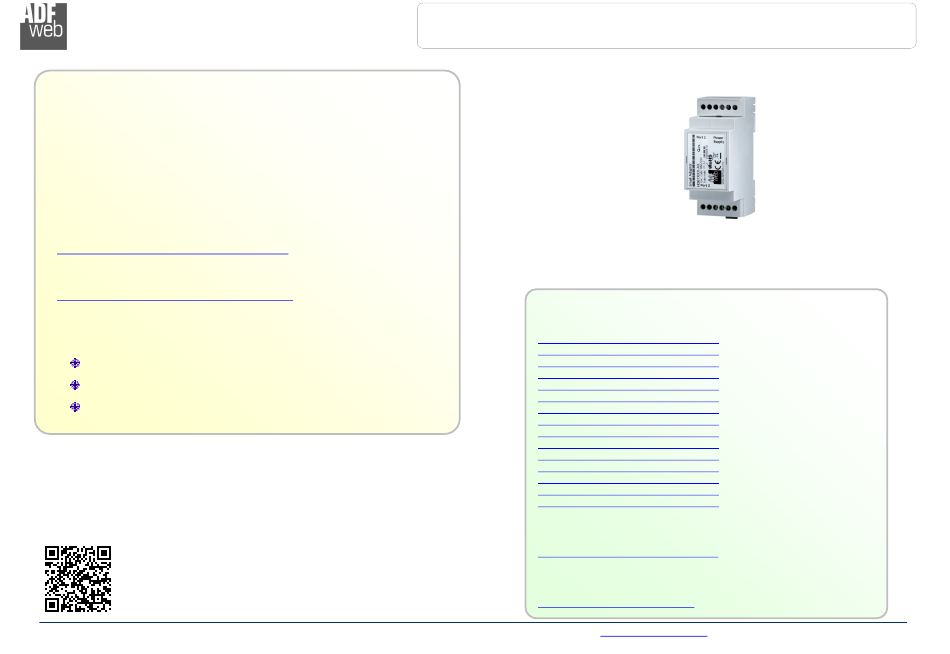

Industrial Electronic Devices
User Manual
Revision 1.000
English

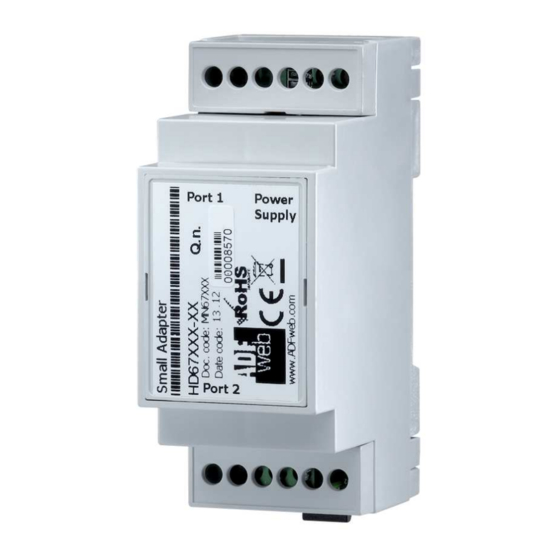

OPC UA Client / PROFINET Slave -
Converter
(Order Code: HD67B22-B2)
for Website information:
www.adfweb.com/?Product=HD67B22
for Price information:
www.adfweb.com/?Price=HD67B22-B2
Benefits and Main Features:
Triple electrical isolation
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual OPC UA Client / PROFINET Slave
Document code: MN67B22_ENG
For others OPC UA Client devices, see also the following links:
OPC UA Client from/to ...
www.adfweb.com?Product=HD67B08
www.adfweb.com?Product=HD67B09
www.adfweb.com?Product=HD67B09
www.adfweb.com?Product=HD67B11
www.adfweb.com?Product=HD67B12
www.adfweb.com?Product=HD67B13
www.adfweb.com?Product=HD67B14
www.adfweb.com?Product=HD67B15
www.adfweb.com?Product=HD67B16
www.adfweb.com?Product=HD67B17
www.adfweb.com?Product=HD67B18
www.adfweb.com?Product=HD67B19
www.adfweb.com?Product=HD67B20
www.adfweb.com?Product=HD67B21
www.adfweb.com?Product=HD67B23
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.000
Page 1 of 32
(Serial)
(Modbus Slave)
(Modbus TCP Slave)
(Bacnet Slave)
(CAN)
(CANopen)
(DeviceNet Slave)
(DMX)
(EtherNet/IP Slave)
(J1939)
(KNX)
(MQTT)
(NMEA0183)
(NMEA2000)
(SNMP Agent)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web HD67B22-B2
Summary of Contents for ADF Web HD67B22-B2
- Page 1 Industrial Electronic Devices User Manual Revision 1.000 English OPC UA Client / PROFINET Slave - Converter (Order Code: HD67B22-B2) for Website information: www.adfweb.com/?Product=HD67B22 for Price information: www.adfweb.com/?Price=HD67B22-B2 For others OPC UA Client devices, see also the following links: OPC UA Client from/to …...
-
Page 2: Table Of Contents
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 2 of 32 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 3 of 32 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 4 of 32 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 5 of 32 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67B22-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
Page 6 of 32 Industrial Electronic Devices CHARACTERISTICS: The HD67B22-B2 is a OPC UA Client / PROFINET Slave converter. It allows the following characteristics: Up to 1440 bytes in reading and 1440 bytes in writing; Two-directional information between PROFINET and OPC UA;... -
Page 7: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67B22-B2 Consumption at 24V DC: Device W/VA HD67B22-B2 Caution: Not reverse the polarity power HD67B22-B2 ADFweb.com Srl –... -
Page 8: Function Modes
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 8 of 32 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’: The first, with Dip1 in Off position (factory setting), is used for the normal working of the device. The second, with Dip1 in On position, is used for upload the Project/Firmware. -
Page 9: Leds
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 9 of 32 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Ethernet
ETHERNET: The Ethernet connection must be made using Connector3 of HD67B22-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable. -
Page 11: Use Of Compositor Sw67B22
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 11 of 32 Industrial Electronic Devices USE OF COMPOSITOR SW67B22: To configure the Converter, use the available software that runs with Windows called SW67B22. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 12: New Project / Open Project
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 12 of 32 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “OPC UA Client / PROFINET Slave - Converter”... -
Page 13: Software Options
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 13 of 32 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. In the section “Language”... - Page 14 User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 14 of 32 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 15: Set Communication
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 15 of 32 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, OPC UA Client and PROFINET. By Pressing the “Set Communication”... - Page 16 User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 16 of 32 Industrial Electronic Devices In the field “Number Bytes Output” the number of output byte of the slave station is defined; In the field “Diagnostic” insert the starting byte of the PROFINET array where you will save the diagnostic of OPC UA. It is possible to enable/disable this function using the checkbox.
-
Page 17: Opc Ua Access
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 17 of 32 Industrial Electronic Devices OPC UA ACCESS: By Pressing the “OPC UA Client Access” button from the main window for SW67B22 (Fig. 2) the window “OPC UA Client Access” appears (Fig. - Page 18 User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 18 of 32 Industrial Electronic Devices By clicking on “Add”, it is possible to add a new OPC UA Server inserting its characteristics (Server Address, Authorization, Security Type…). The window “Add OPC UA Server”...
- Page 19 User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 19 of 32 Industrial Electronic Devices By clicking on “Scan”, it is possible to get the list of available variables from the selected Server. The window “Scan Server OPC UA” appears (Fig.
- Page 20 User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 20 of 32 Industrial Electronic Devices After the scan, the selected variables will appear in “Variables in Read” and/or “Variables in Write” sections, in the lower part of the window “OPC UA Client Access”...
- Page 21 User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 21 of 32 Industrial Electronic Devices The “Variables in Write” section is used to define the OPC UA variables to write from PROFINET side (Fig. 9). Figure 9: “Variables in Write”...
- Page 22 User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 22 of 32 Industrial Electronic Devices In the field “Position” the starting byte of the PROFINET array where getting the value is defined; In the field “Mnemonic” a description of the variable is defined. Note: By clicking on “Auto...
-
Page 23: Update Device
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 23 of 32 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 24 User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 24 of 32 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67B22 device. Warning: If Fig.
-
Page 25: Opc Ua Diagnostic Over Profinet
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 25 of 32 Industrial Electronic Devices OPC UA DIAGNOSTIC OVER PROFINET: It is possible to save the OPC UA Diagnostic on PROFINET output array using the field “Diagnostic” of the section “Set Communication”. In this case, the status of each OPC UA request defined in the section “Set Access”... -
Page 26: Mechanical Dimensions
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 26 of 32 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 12: Mechanical dimensions scheme for HD67B22-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 27: Plc Configuration
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 27 of 32 Industrial Electronic Devices PLC CONFIGURATION: The configuration and commissioning of the PROFINET Converter as described on the following pages was accomplished with the help of the TIA Portal software of Siemens. - Page 28 User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 28 of 32 Industrial Electronic Devices 2) Import the module in the network; connect the device to the PLC network and edit the parameters of IP, station name etc. ADFweb.com Srl –...
- Page 29 User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 29 of 32 Industrial Electronic Devices 3) Load the configuration into the PLC. ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
-
Page 30: Ordering Informations
Enclosure Type B: Modulbox 4M, 35mm DIN Rail mounting Device Family HD67B22: OPC UA Client / PROFINET Slave - Converter Order Code: HD67B22-B2 OPC UA Client / PROFINET Slave - Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 31: Disclaimer
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 31 of 32 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 32: Warranties And Technical Support
User Manual OPC UA Client / PROFINET Slave Document code: MN67B22_ENG Revision 1.000 Page 32 of 32 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
