NTI RACKMUX KVM Drawer with UNIMUX DVI Video Switch
8. Apply four more #10-32 x 3/4" pan-head machine screws (two for each) through the holes in the drawer flanges, through the
holes in the left and right rails, into the cage nuts in the rack supports. Tighten each securely.
Apply two
more screws
on each side
There should
be a total of
six screws at
the front now.
9. Tighten securely the four screws applied to the rear rail flanges in step 4.
10. Make your cable connections according to your RACKMUX Drawer instructions.
Your NTI RACKMUX Drawer is now installed and ready for use.

Optional Telco 2-Post Mounting

If the Telco 2-post mounting bracket kit (NTI# RL-T15-TEL) is to be used, secure the short and long brackets to each side of the
drawer as shown in Fig. 2.
(supplied) per bracket to secure the brackets to the drawer. Apply two #10-32x3/4" screws (supplied) per bracket to the post at
the desired height. Slots are provided in the brackets to make minor depth adjustments easy.
nuts and screws before using the drawer.

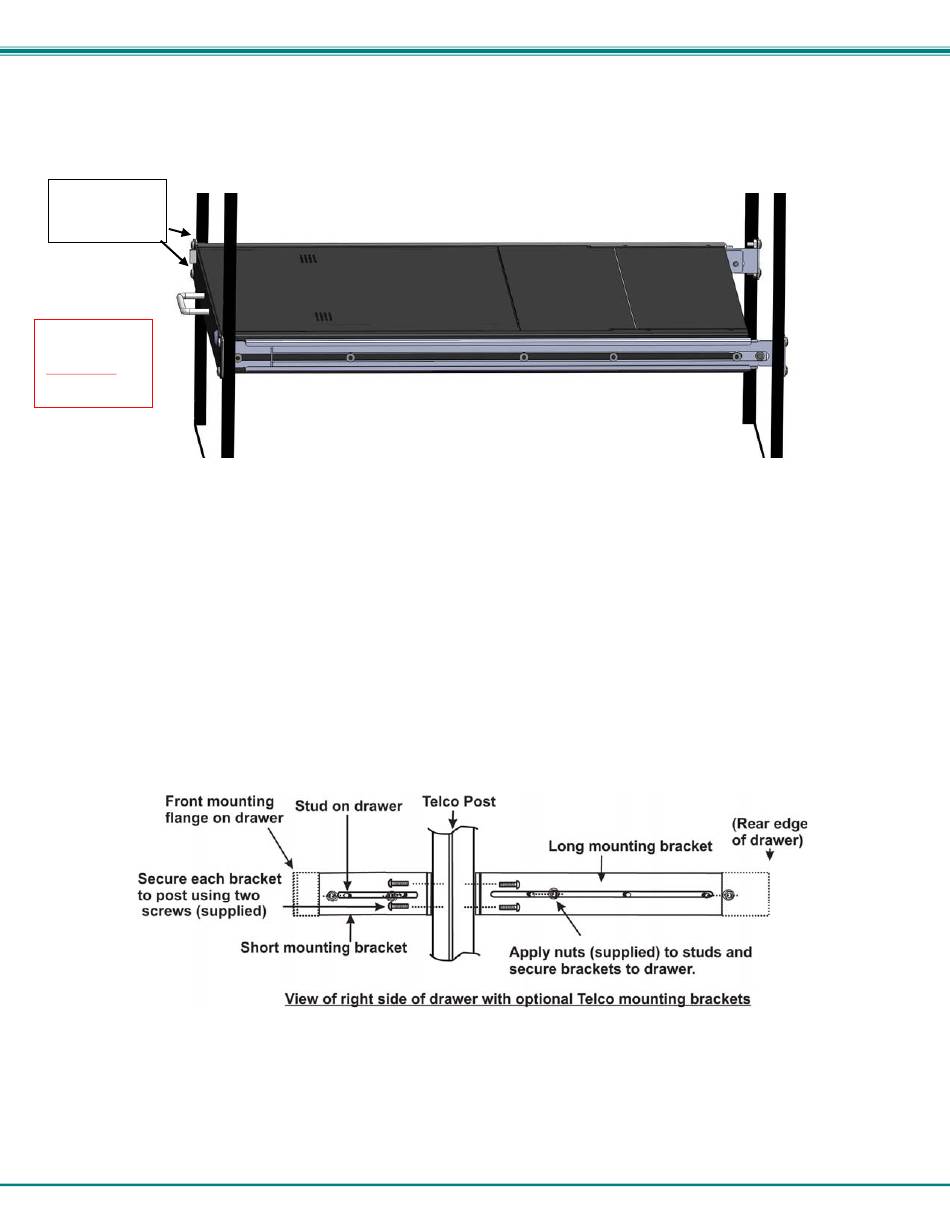

Figure 6- Apply remaining screws to complete installation

Remove the flange nuts from the studs on the drawer, attach the brackets and apply 2 nuts

Figure 7- Mount to Telco post with optional mounting brackets

7
Be sure to properly tighten all
