Chapter 2: Jumpers and Connectors

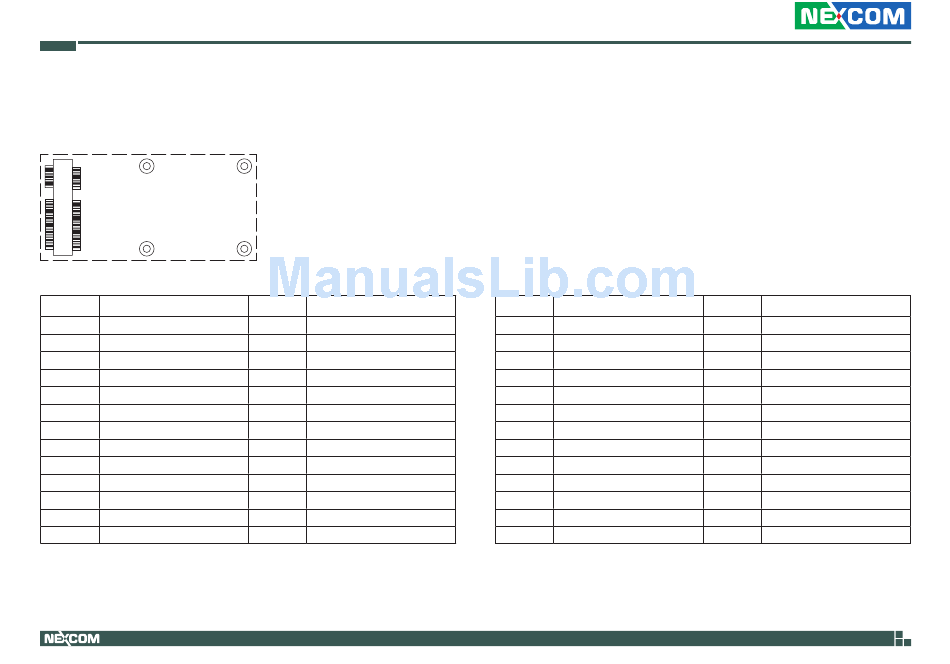

Mini-PCIe Connector (3G/SIM)

Connector location: CN8
1 2
51 52
Pin Definition
1 PCIEWAKE#
3 N/A
5 N/A
7 N/A
9 GND
11 MC9090_1V8_OUT
13 N/A
15 GND
17 N/A
19 N/A
21 GND
23 N/A
25 N/A
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 3VSB_MINI1
4 GND
6 N/A
8 UIM_PWR
10 UIM_DATA
12 UIM_CLK
14 UIM_RESET
16 UIM_VPP
18 GND
20 EC_MC609_DISABLE
22 EC_MC609_RESET
24 3VSB_MINI1
26 GND
Pin Definition
27 GND
29 GND
31 GND
33 EC_MC9090_RESET
35 GND
37 GND
39 3VSB_MINI1
41 3VSB_MINI1
43 GND
45 N/A
47 N/A
49 N/A
51 N/A
25
Pin Definition
28 N/A
30 EC_I2CCLK
32 EC_I2CDATA
34 GND
36 MINI1USBN
38 MINI1USBP
40 GND
42 N/A
44 N/A
46 N/A
48 N/A
50 GND
52 3VSB_MINI1
