Chapter 2: Jumpers and Connectors

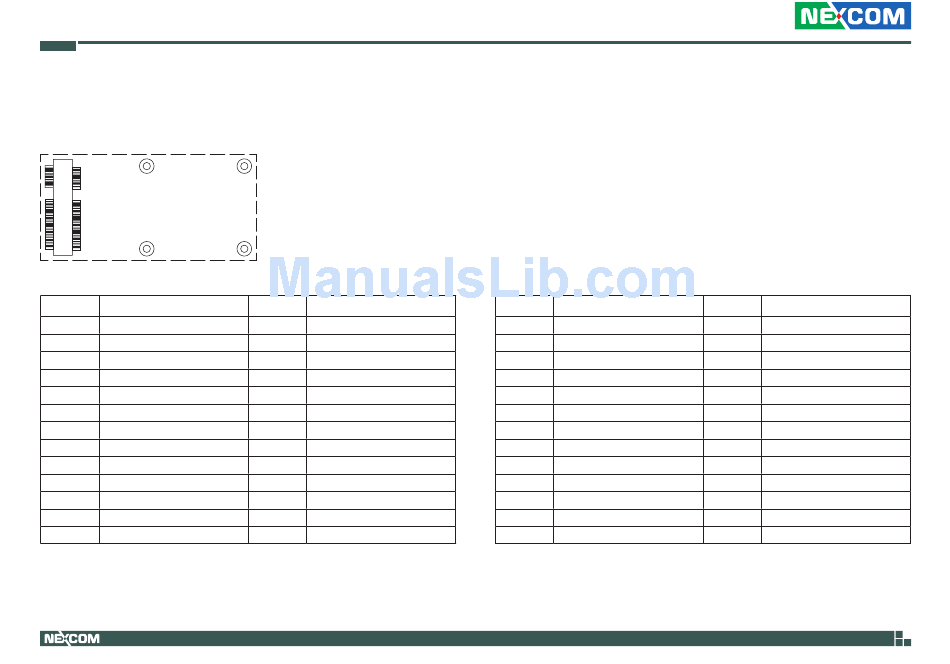

Mini-PCIe Connector (Wi-Fi)

Connector location: CN6
1 2
51 52
Pin Definition
1 PCIE_WAKE#
3 N/A
5 N/A
7 MINICARD1CLKREQ#
9 GND
11 PCIE_CLKN2
13 PCIE_CLKP2
15 GND
17 N/A
19 N/A
21 GND
23 I_PERXN2_C
25 I_PERXP2_C
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 3VSB_MINI3
4 GND
6 V1P5S_3
8 N/A
10 N/A
12 N/A
14 N/A
16 N/A
18 GND
20 EC_WIFI_DISABLE
22 EC_PLTRST#
24 3VSB_MINI3
26 GND
Pin Definition
27 GND
29 GND
31 PCIE_TXN2
33 PCIE_TXP2
35 GND
37 GND
39 3VSB_MINI3
41 3VSB_MINI3
43 GND
45 N/A
47 N/A
49 N/A
51 N/A
27
Pin Definition
28 V1P5S_3
30 EC_SMBCLK
32 EC_SMBDATA
34 GND
36 MINI3USBN
38 MINI3USBP
40 GND
42 N/A
44 N/A
46 N/A
48 V1P5S_3
50 GND
52 3VSB_MINI3
