Chapter 3: System Setup

Installing a Mini-PCIe Module (Half-size)

1. Locate the mini-PCI Express slot on the board.

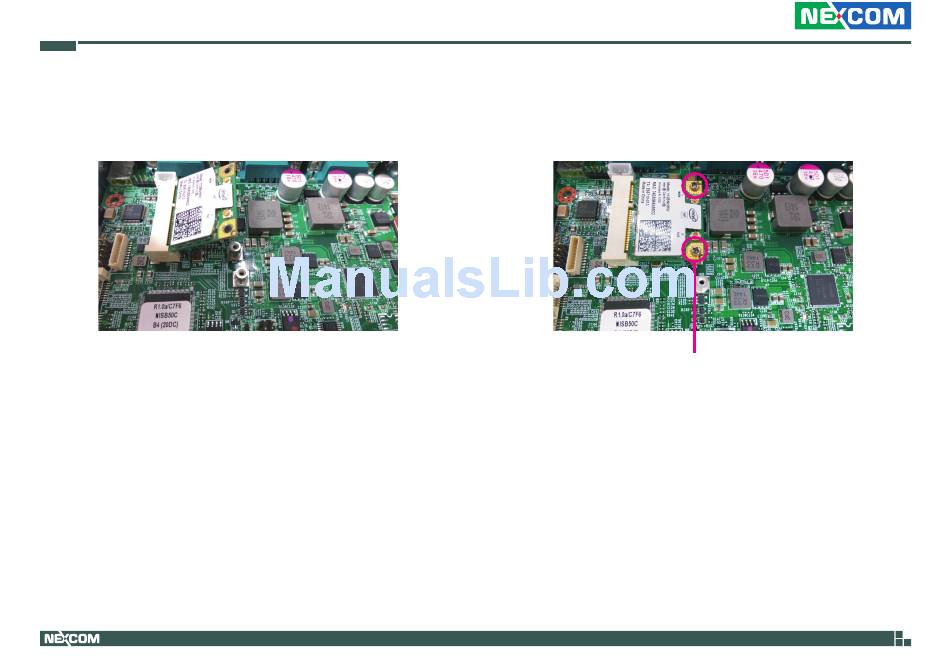

2. Insert the Wi-Fi module into the mini-PCI Express slot at a 45 degree angle
until the gold-plated connector on the edge of the module completely
disappears inside the slot.
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
3. Push the module down and then secure it with mounting screws.
30
Mounting
screw
NISE 50C/50C-H User Manual
