[2] DISASSEMBLING

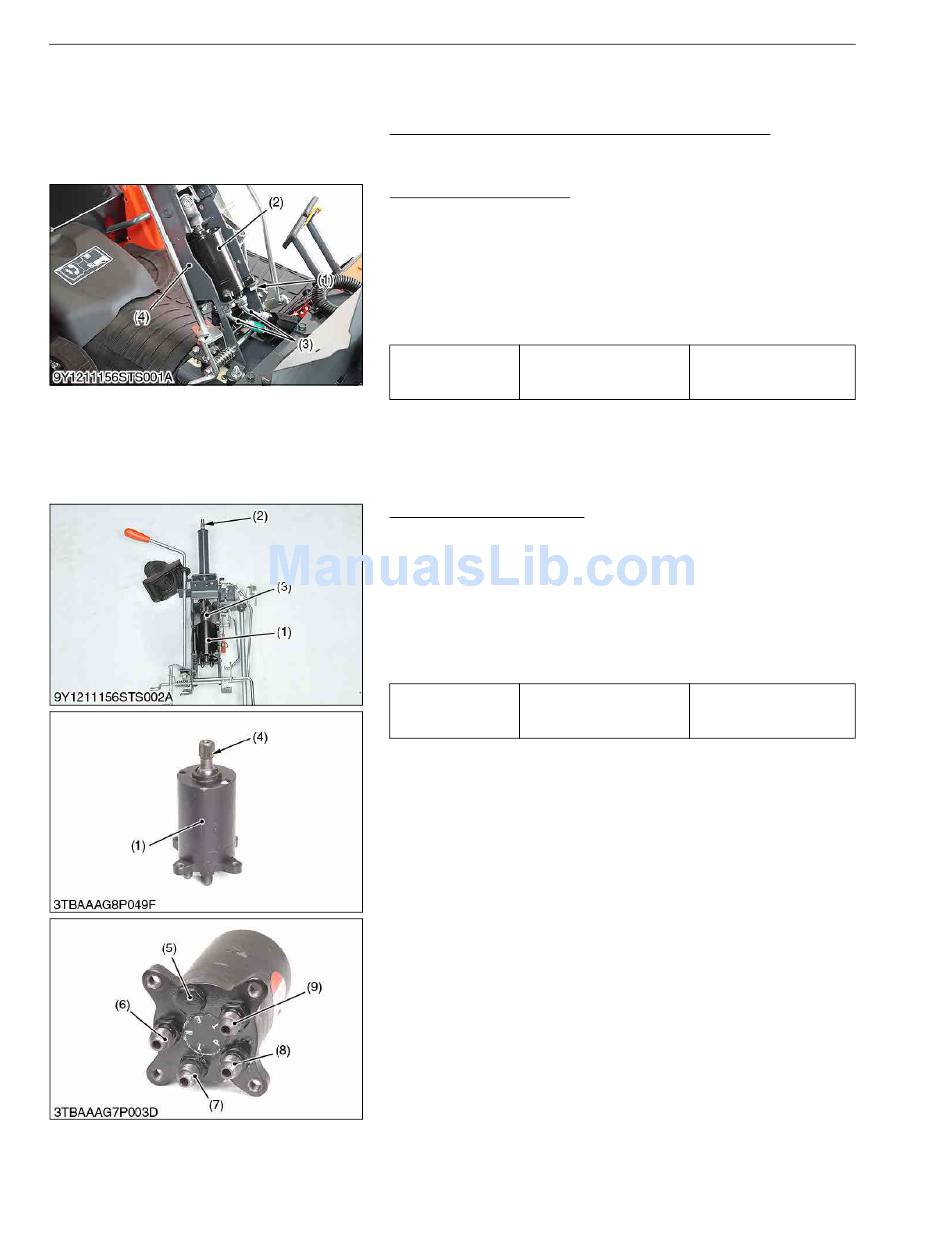

(1) Separating Power Steering Controller

(2) Power Steering Controller

Steering Wheel, Meter Panel Bonnet and Fuel Tank
• See page 1-S23.
Steering Post Assembly
1. Remove the steering post mounting bolts.
2. Disconnect the power steering hoses (3) from the power
steering controller (2).
3. Remove the steering post assembly (4) from the main frame.
(When reassembling)
• Connect the power steering hoses (3) to the power steering
controller (2) securely.
Power steering controller
Tightening torque
for pipes and hoses
(1) Bolt
(2) Power Steering Controller
Power Steering Controller
1. Remove the bolt from the universal joint (3).
2. Remove the power steering controller (1) from the steering post.
(When reassembling)
• If oil leaking from the power steering controller (1) is found,
replace the power steering controller (1). O-ring in the power
steering controller (1) is not supplied as a spare part.
• Align the power steering controller shaft (4) to the universal joint
(3) securely.
Universal joint mounting
Tightening torque
bolt
(1) Power Steering Controller
(2) Steering Shaft
(3) Universal Joint
(4) Power Steering Controller Shaft
(5) Relief Valve
6-S6
STEERING
9Y1211156STS0006US0
24 to 28 N·m
2.5 to 2.9 kgf·m
18 to 20 lbf·ft
(3) Power Steering Hose
(4) Steering Post Assembly
9Y1211156STS0007US0
24 to 28 N·m
2.5 to 2.8 kgf·m
18 to 20 lbf·ft
(6) Adaptor (to Right Cylinder)
(7) Adaptor (to Left Cylinder)
(8) Adaptor (to Hydraulic Pump)
(9) Adaptor (to Oil Cooler)
9Y1211156STS0008US0
