[3] DISASSEMBLING AND ASSEMBLING

(1) Separating Engine and Clutch Housing

• See page 1-S23.

(2) Front Case

Clutch Housing

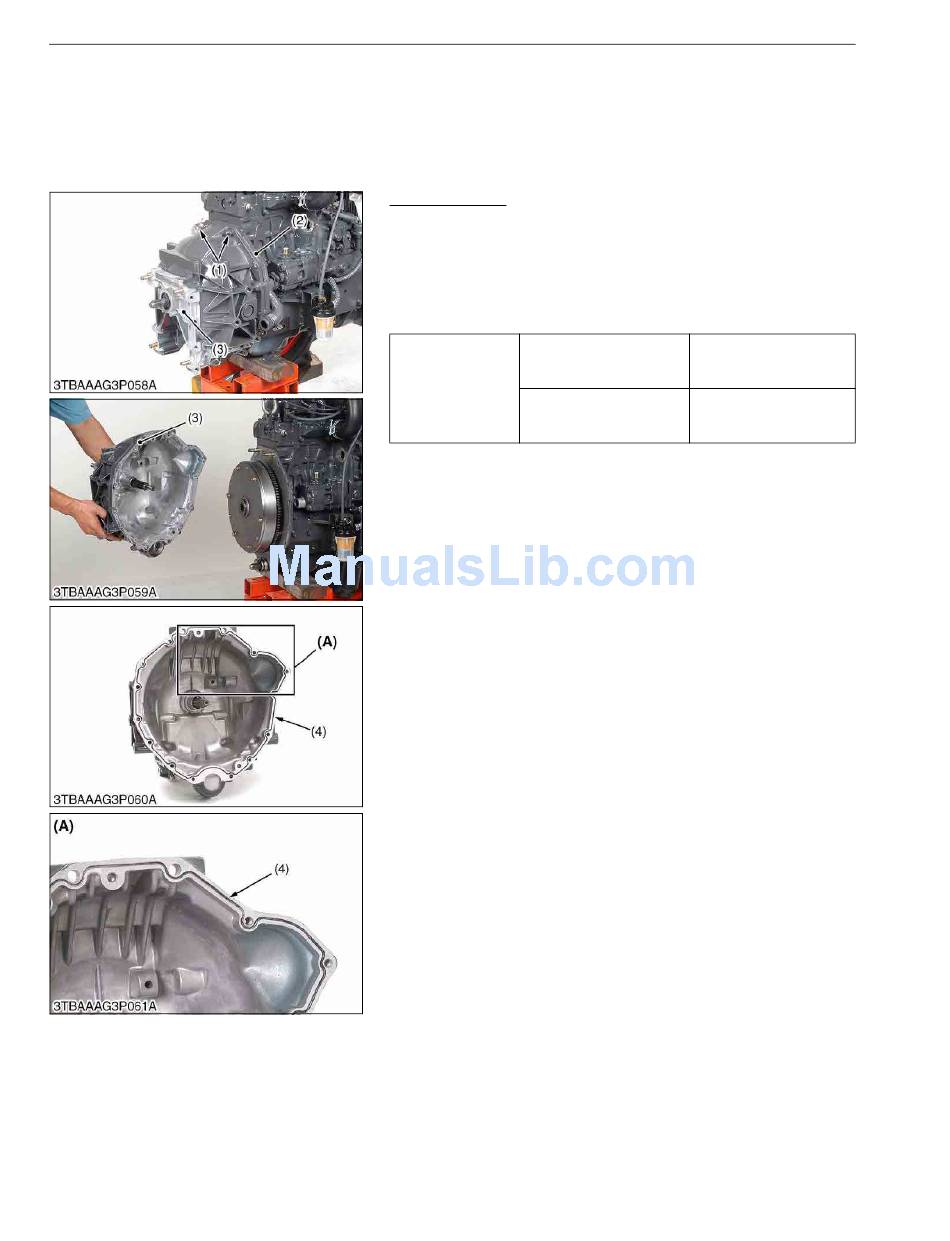

1. Support the engine securely.
2. Remove the front case mounting bolts (1).
3. Remove the front case (3) from the engine.
(When reassembling)
• Apply liquid gasket (Three Bond 1206D or equivalent) to the
joint face of the engine and the front case.
Front case mounting nut for
aluminum material (M8)
Tightening torque
Front case mounting bolt
for aluminum material
(M10)
(1) Bolt
(2) Engine Rear-End Plate
(3) Front Case
(4) Groove (for liquid gasket)
2-S20
TRANSMISSION
9Y1211156TRS0019US0
17.7 to 20.5 N·m
1.8 to 2.1 kgf·m
13.1 to 15.1 lbf·ft
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
(A) Front Case Corner
9Y1211156TRS0020US0
