(10) Mid-PTO Section

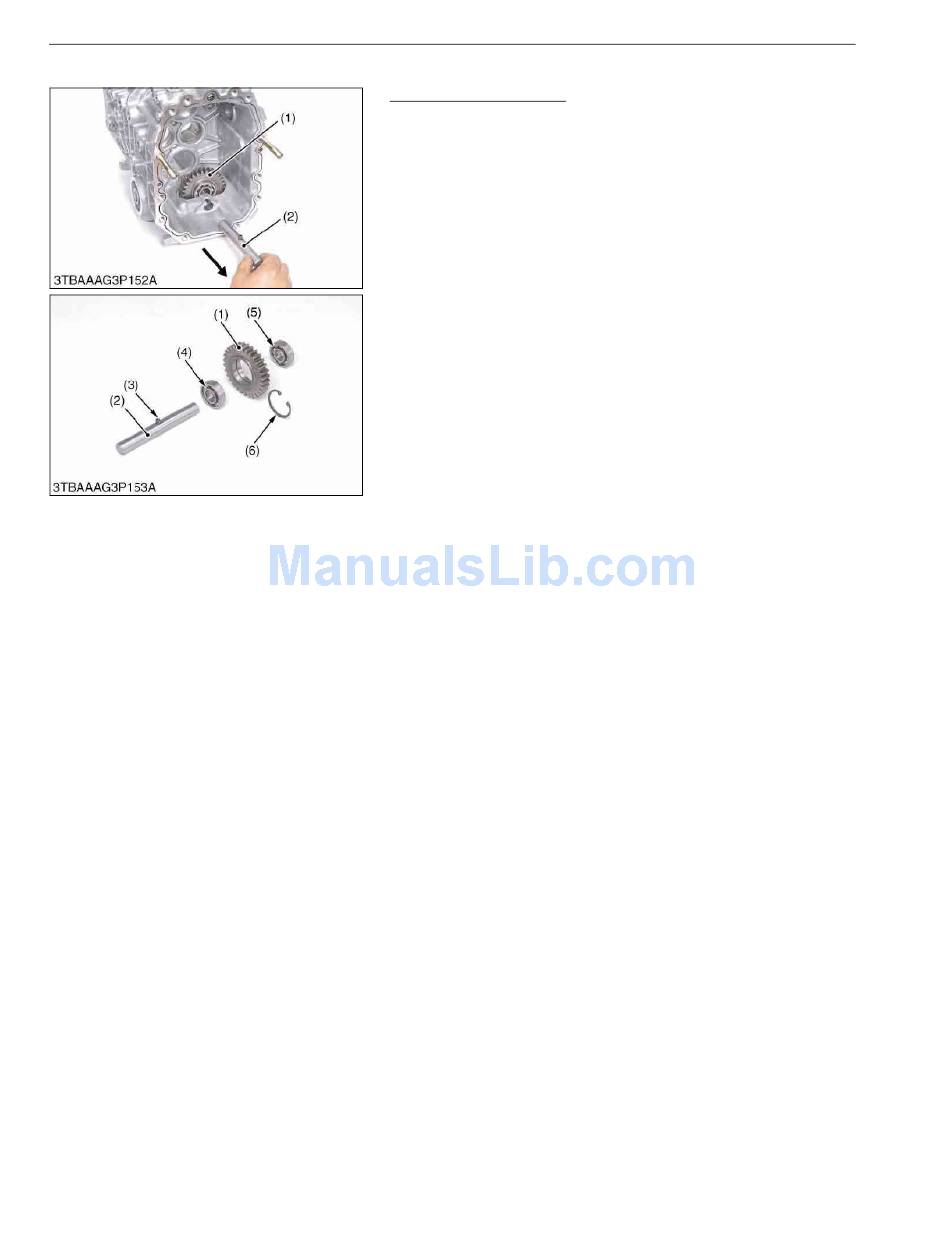

Mid-Gear and Idle Shaft
1. Remove the idle shaft (2) from the transmission case using a
screw driver.
2. Remove the mid-gear (1) from the transmission case.
3. Remove the ball bearings (4), (5) and the internal circlip (6) from
the mid-gear (1).
(When reassembling)
• Install the internal circlip (6) to the inner groove of the mid-gear
(1) securely.
(1) 30T Mid-Gear
(2) Idle Shaft
(3) Spring Pin
2-S34
TRANSMISSION
(4) Ball Bearing
(5) Ball Bearing
(6) Internal Circlip
