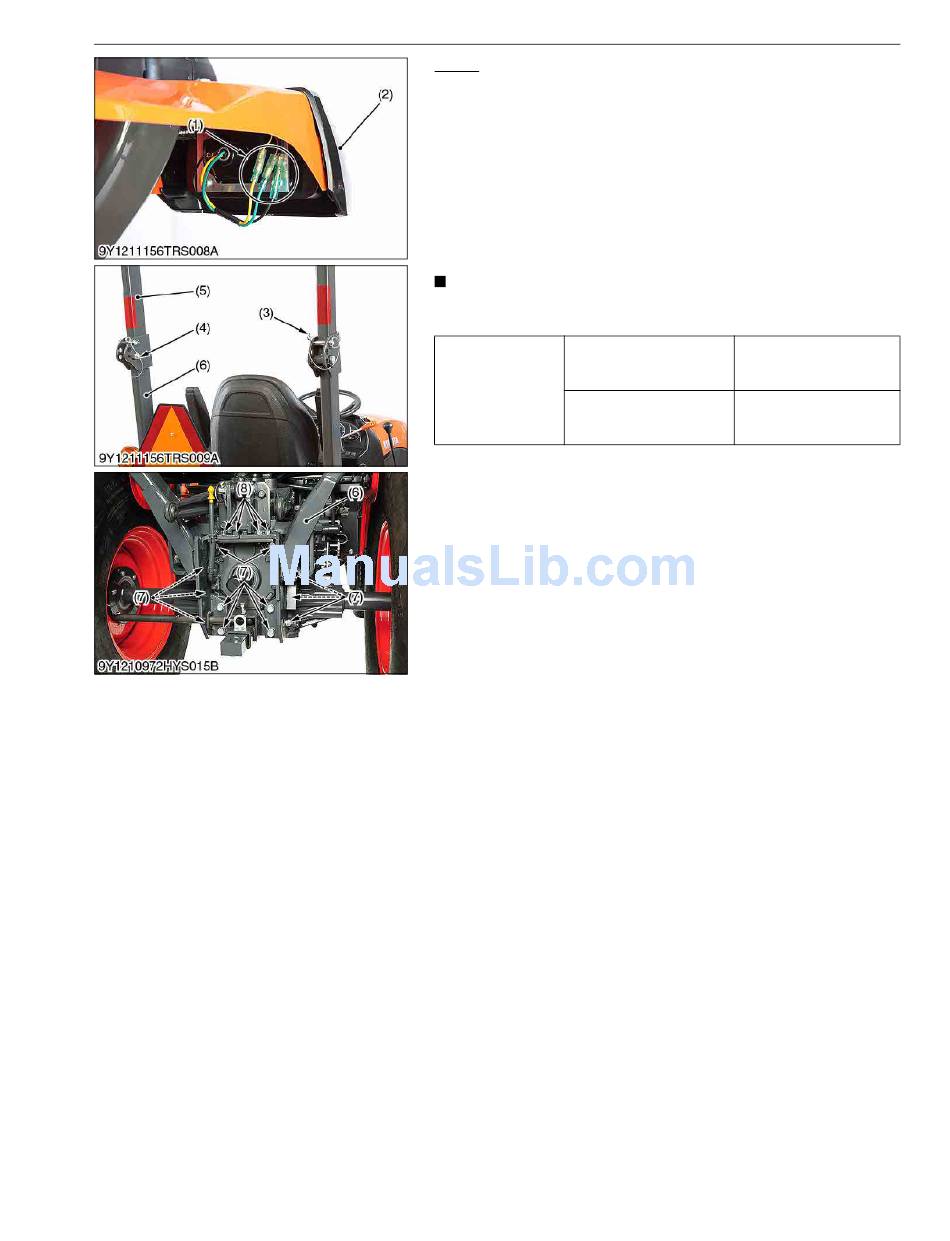

1. Disconnect the tail light connectors (1) and turn signal light
connectors.
2. Remove the tail lights (2).
3. Remove the spring pins (3).
4. Remove the bolt (4).
5. Remove the upper frame (5) from lower frames (6).
6. Remove the ROPS mounting bolts (7), (8) and the lower frames
(6).
(When reassembling)
• Split the split pin (3) securely as shown in the photo.
NOTE
• Do not firmly tighten all screws until most components are
attached.
ROPS mounting bolt (M12)
Tightening torque
ROPS mounting bolt
(SEMS Bolt)
(1) Tail Light Connector
(2) Tail Light
(3) Spring Pin
(4) Bolt
2-S17
TRANSMISSION
83.4 to 93.2 N·m
8.5 to 9.5 kgf·m
61 to 69 lbf·ft
47.1 to 56.9 N·m
4.8 to 5.8 kgf·m
34.7 to 42 lbf·ft
(5) Upper Frame
(6) Lower Frame
(7) Bolt
(8) SEMS Bolt
