Kubota B2301 Workshop Manual page 175

B2301, B2601, WSM

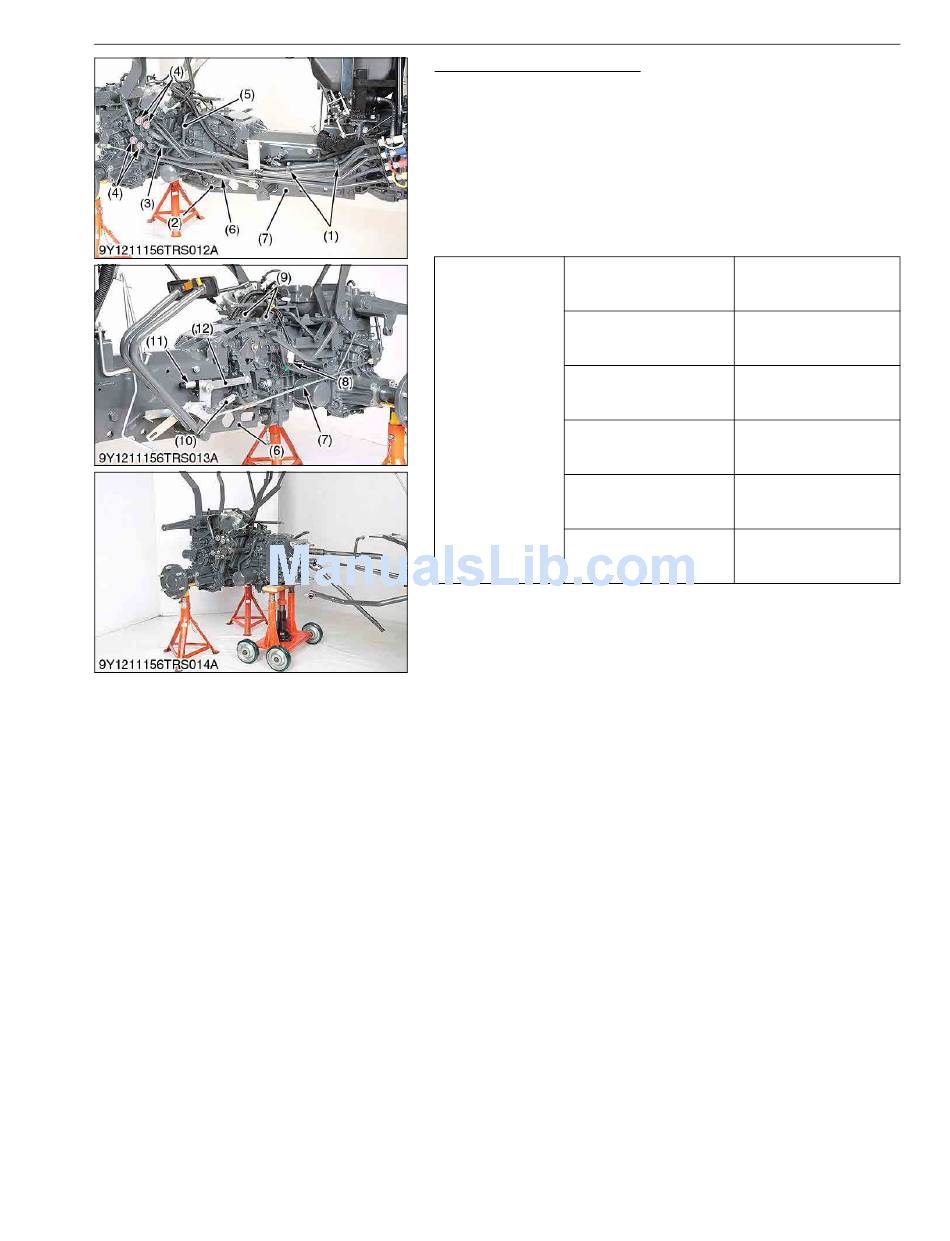

Hydraulic Pipes and Others
1. Remove the clamps (1).
2. Disconnect the suction pipe (2) and delivery pipe (3).
3. Disconnect the loader valve pipes (4).
4. Disconnect the independent PTO pipe (5).
5. Remove the right side brake rod (6) and sub frame (7).
6. Remove the left side brake rod (6) and sub frame (7).
7. Disconnect the HST pedal switch connector (8).
8. Remove the frame support plate (9) and spring (10).
9. Remove the HST damper (11) and plate (12).
Front loader valve pipe joint
3-point hitch delivery pipe
joint bolt
Frame support plate
mounting bolt (M12)
Tightening torque
Sub frame mounting bolt
(M12)
Sub frame mounting bolt
(M14)
Sub frame mounting bolt
(M10)
(1) Clamp
(2) Suction Pipe
(3) Delivery Pipe
(4) Front Loader Valve Pipe Joint
(5) Independent PTO Pipe
(6) Brake Rod
2-S19
TRANSMISSION
48 to 70 N·m
4.9 to 7.1 kgf·m
36 to 51 lbf·ft
48 to 70 N·m
4.9 to 7.1 kgf·m
36 to 51 lbf·ft
64 to 74 N·m
6.6 to 7.5 kgf·m
48 to 54 lbf·ft
80 to 90 N·m
8.2 to 9.1 kgf·m
59 to 66 lbf·ft
126 to 150 N·m
12.9 to 15.2 kgf·m
93.0 to 110 lbf·ft
40 to 45 N·m
4.1 to 4.7 kgf·m
30 to 34 lbf·ft
(7) Sub Frame
(8) HST Pedal Switch Connector
(9) Plate
(10) Spring
(11) HST Damper
(12) HST Plate
9Y1211156TRS0018US0
KiSC issued 11, 2014 A
