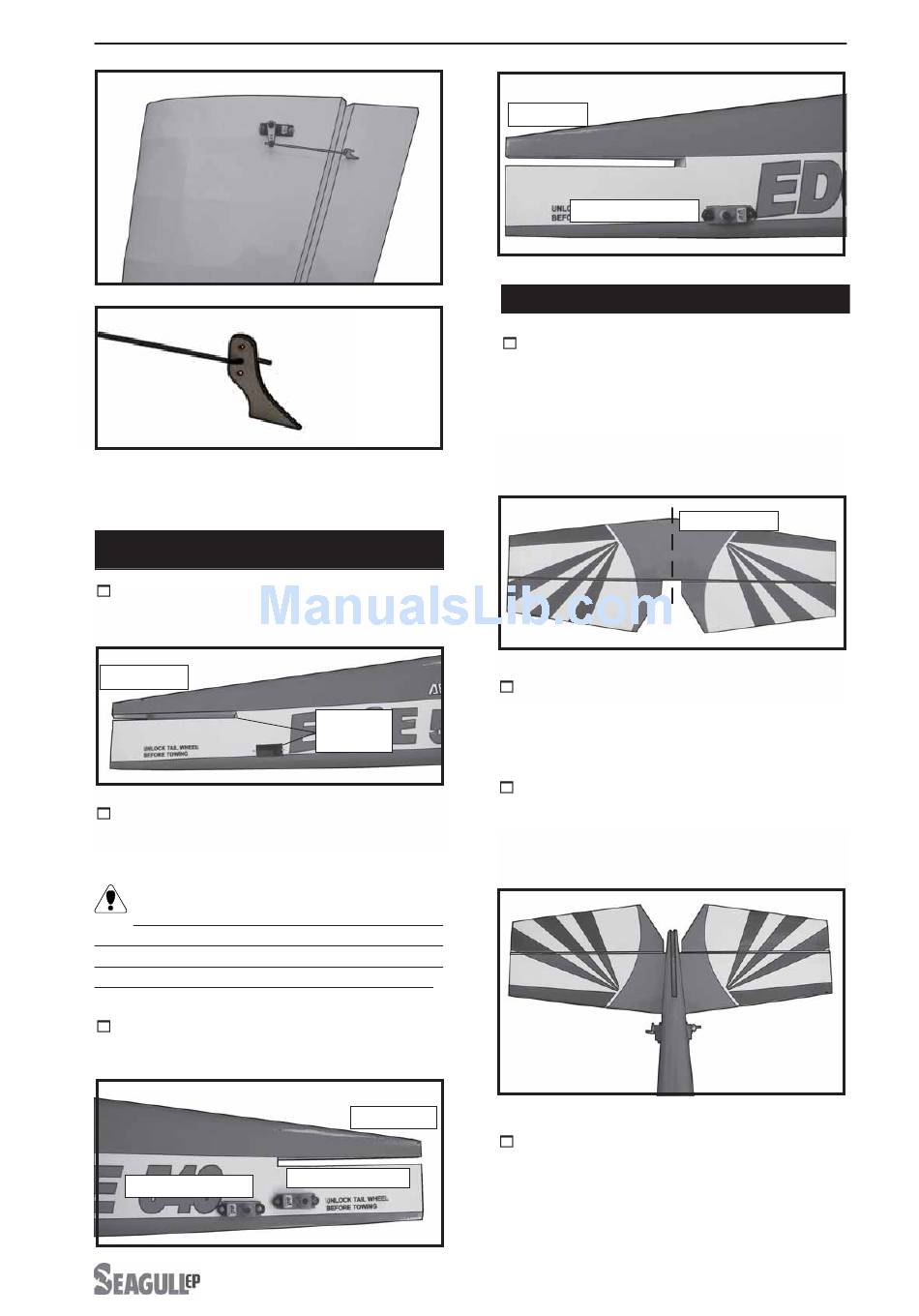

FUSELAGE SERVO INSTALLATION.

Locate and cut out the covering film
1)
from the servo holes in both sides of fuselage.
Right side.
2) Install the rubber grommets and brass
collets onto the elevator servo. Test fit the
servo into the elevator servo mount.
Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
3) Secure the servos with the screws pro-
vided with your radio system.
Elevator servo.
www.seagullmodels.com
Remove
covering.
Right side.
Rudder servo.
Left side.
Elevator servo.

HORIZONTAL STABILIZER.

1) Using a ruler and a pen, locate the
centerline of the horizontal stabilizer, at the trail-
ing edge, and place a mark. Use a triangle
and extend this mark, from back to front,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge of
the stabilizer.
2) Using a modeling knife, carefully remove
the covering at mounting slot of horizontal sta-
bilizer ( both side of fuselage).
3) Slide the stabilizer into place in the pre-
cut slot in the rear of the fuselage. The stabi-
lizer should be pushed firmly against the front
of the slot.
4) With the stabilizer held firmly in place,
use a pen and draw lines onto the stabilizer
where it and the fuselage sides meet. Do this
on both the right and left sides and top and
bottom of the stabilizer.
Center line.
