Seagull Models EDGE 540 EP Assembly Manual page 6

EDGE 540.
Fuselage bottom.
2 X 12mm.

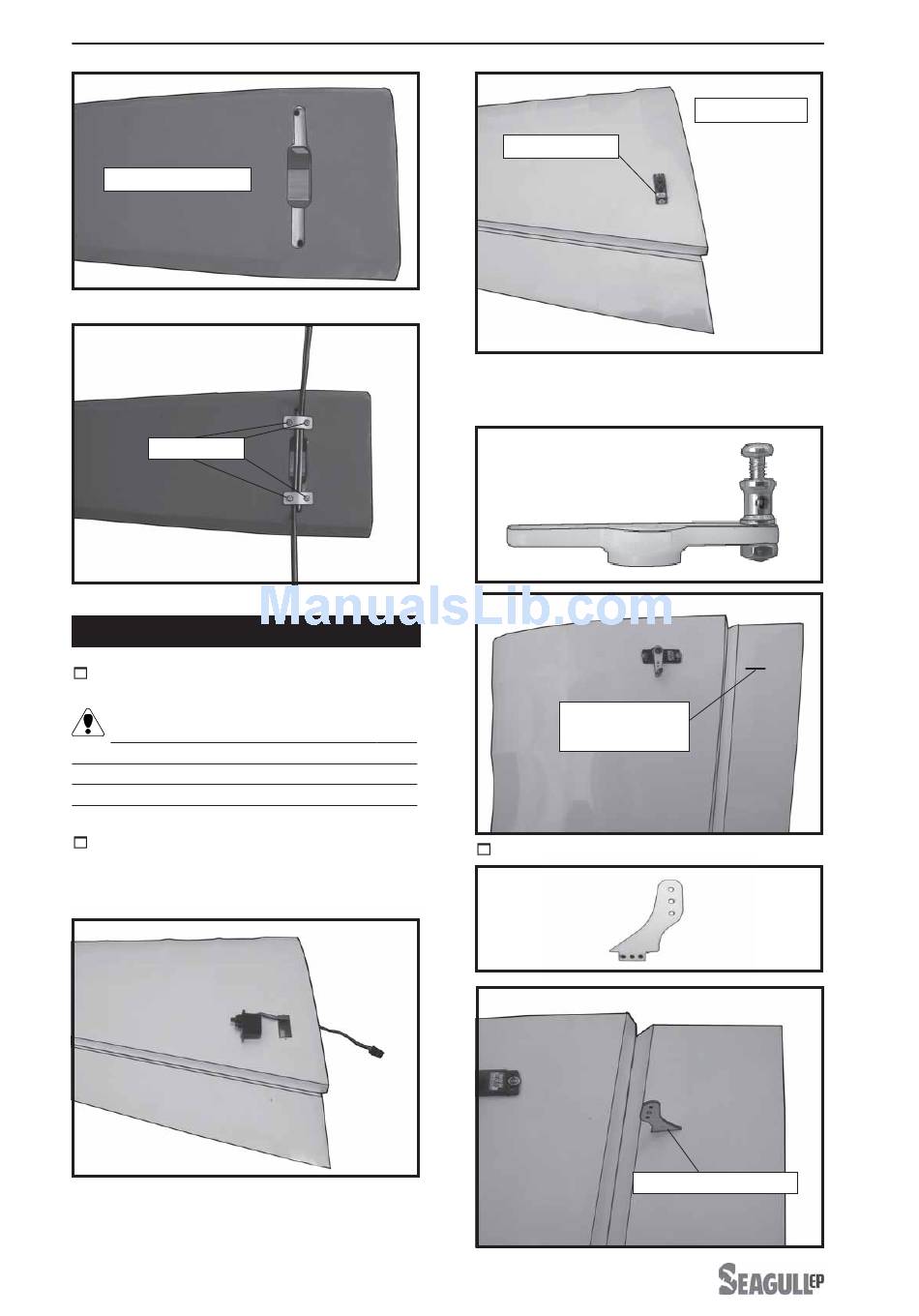

AILERON SERVOS - LINKAGES.
1) Install the rubber grommets and brass
eyelets onto the aileron servo.
Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of
the mount allow the servo lead to pass through.
2) Turn the wing panel right side up. Using
a modeling knife, remove the covering at servo
tray.
Secure the servos with the screws pro-
vided with your radio system.
6
Instruction Manual.
Aileron servo.
Attach the micro control connector to the
servo arms. Be sure to use the lock tie but it
could free rotation .
Aileron servo
cotrol horn slot.
5) Insert aileron control horn to the aileron.
Aileron control horn.
Wing bottom.
