ssembly the electronic modules.

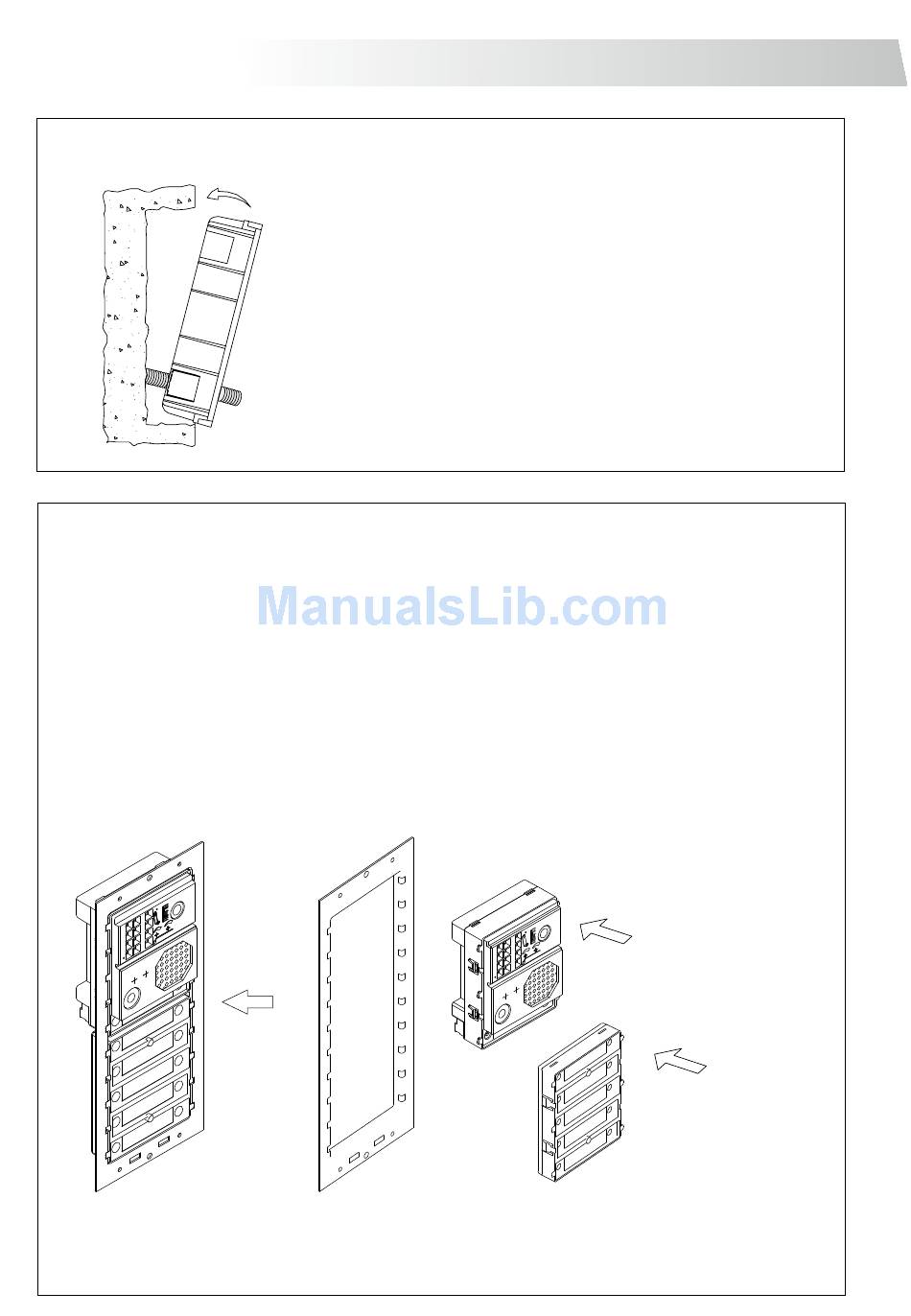

Insert the sound module in the top part of the module frame.
Align the tabs on the sound module in their respective housings of the module frame and
later exercise a light pressure until correct placement.
If there is push buttons module repeat the above process, locating under the sound module,
as shown in the drawing.
Frame
DOOR PANEL INSTALLATION
Pass the wiring through the hole made in the bottom part of the
embedding box. Level and flush the embedding box. Once
the embedding box is placed, remove the protective labels
from the attaching door panel holes.
Frame
P
lace the embedding box.
Sound module
EL632 Plus P/T
EL642 Plus
Push buttons electronic
module EL610D
