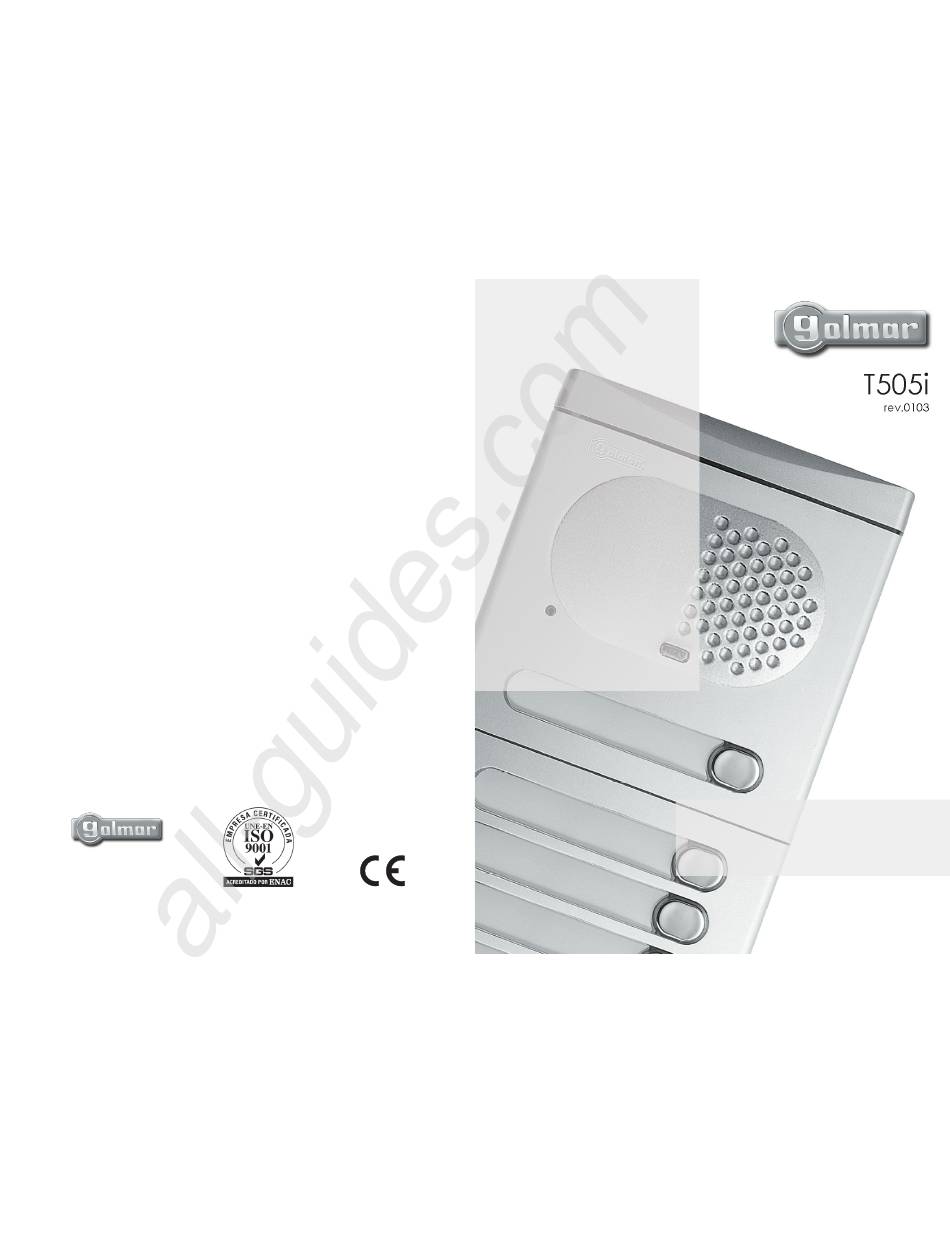

All manuals and user guides at all-guides.com T505i rev.0103 Audio door entry system residential complexes 4+'n' installation Stadio Plus Instructions manual (+34) 934 800 696 (+34) 609 807 631 golmar@golmar.es Golmar reserves the right to make any modifications without prior notice for improvement purposes.
INTRODUCTIÓN First of all we would like to thank and congratulate you for the purchase of this product manufactured by Golmar. The commitment to reach the satisfaction of our customers is stated through the ISO-9001 certification and for the manufacturing of products like this one.
All manuals and user guides at all-guides.com DOOR PANELS DESCRIPTION DOOR PANEL INSTALLATION nternal door panel mbedding box positioning. description. closing heads CE-6xx embedding boxes 2xxx grille module EL550 sound module 1850 3xxx 1650 1450 push buttons module The upper part of the door panel should be placed at 1,65m. height roughly. The hole dimensions will depend on the number of door panel modules.
Page 4
All manuals and user guides at all-guides.com DOOR PANEL INSTALLATION DOOR PANEL INSTALLATION lace the embedding ssembly the sound module. box. Insert the sound module in the grille module. Pass the wiring through the hole made in the bottom part For a proper assembly, align the light of the embedding box.
Page 5
All manuals and user guides at all-guides.com DOOR PANEL INSTALLATION DOOR PANEL INSTALLATION ssembly and wiring of the EL505 microprocessed ush buttons wiring. circuits in the general entrance door panel(s). For a quality finish, pass the push buttons wires through the spacer hole of the closest module.
All manuals and user guides at all-guides.com DOOR PANEL INSTALLATION DOOR PANEL INSTALLATION lace the nameplate labels. lose the door panel. Fix the door panel by using the supplied screws. Open the label holder. Finish the door panel assembly by pressing the closing heads.
All manuals and user guides at all-guides.com TELEPHONE INSTALLATION POWER SUPPLY INSTALLATION escription of the T-900 nstalling the TF-104 transformer. telephone. The transformer must be installed in a dry and Telephone handset. protected place. It's recommended to protect 3,5 x 25 Speaker grille.
All manuals and user guides at all-guides.com INSTALLATION DIAGRAM INSTALLATION DIAGRAM eneral entrance door panel and two internal Building B ind. 2a ind. 2b Building A TF-104 TF-104 EL-551 EL-551 ind. 1a ind. 1b L1 L2 L1 L2 ind. 1a ind.
All manuals and user guides at all-guides.com OPTIONAL CONNECTIONS SECTIONS CHART arallel telephones installation. ections chart. Distance The maximum number of telephones placed in the same apartment is three. Terminal 100m. 300m. For each telephone placed in parallel 0, ind, 5, , 10, , P, P1, CO 0,25mm² 0,50mm²...
All manuals and user guides at all-guides.com TROUBLESHOOTING HINTS O Nothing operates. w Check the output transformer voltage between SEC terminals: it should have 12 to 17Va.c. If not, disconnect the transformer from the installation and measure again. If it's correct now, it means there is a short circuit in the installation: disconnect the transformer from mains and check the installation.
